Air Temperature Sensor ( Ambient / Intake ): Service and Repair

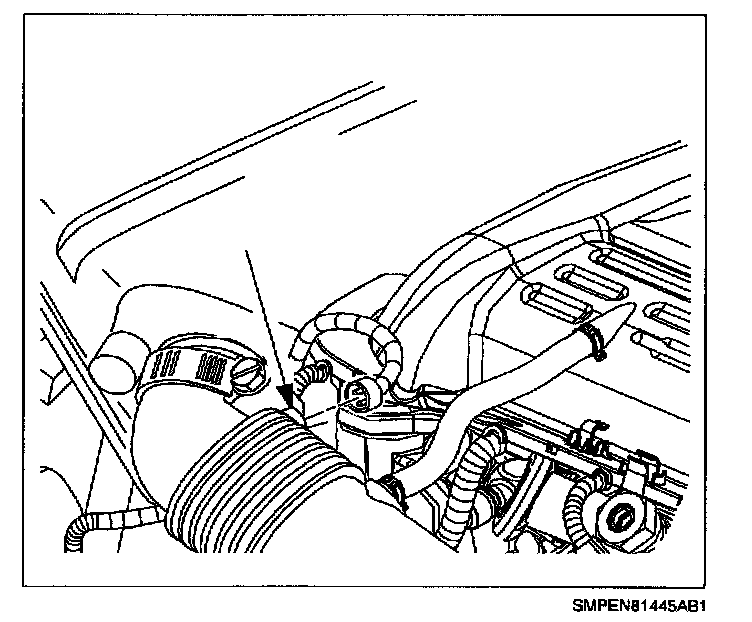

INTAKE AIR TEMPERATURE (IAT) SENSOR

REMOVAL




1. Ignition Off.
2. Disconnect IAT sensor harness connector.
3. Remove IAT sensor by pulling it out of the air induction tube.

INSTALLATION




1. Install IAT sensor.
2. Connect IAT sensor harness connector. Push in connector until a click is heard, then pull back to confirm a positive engagement.
