Harness Locations

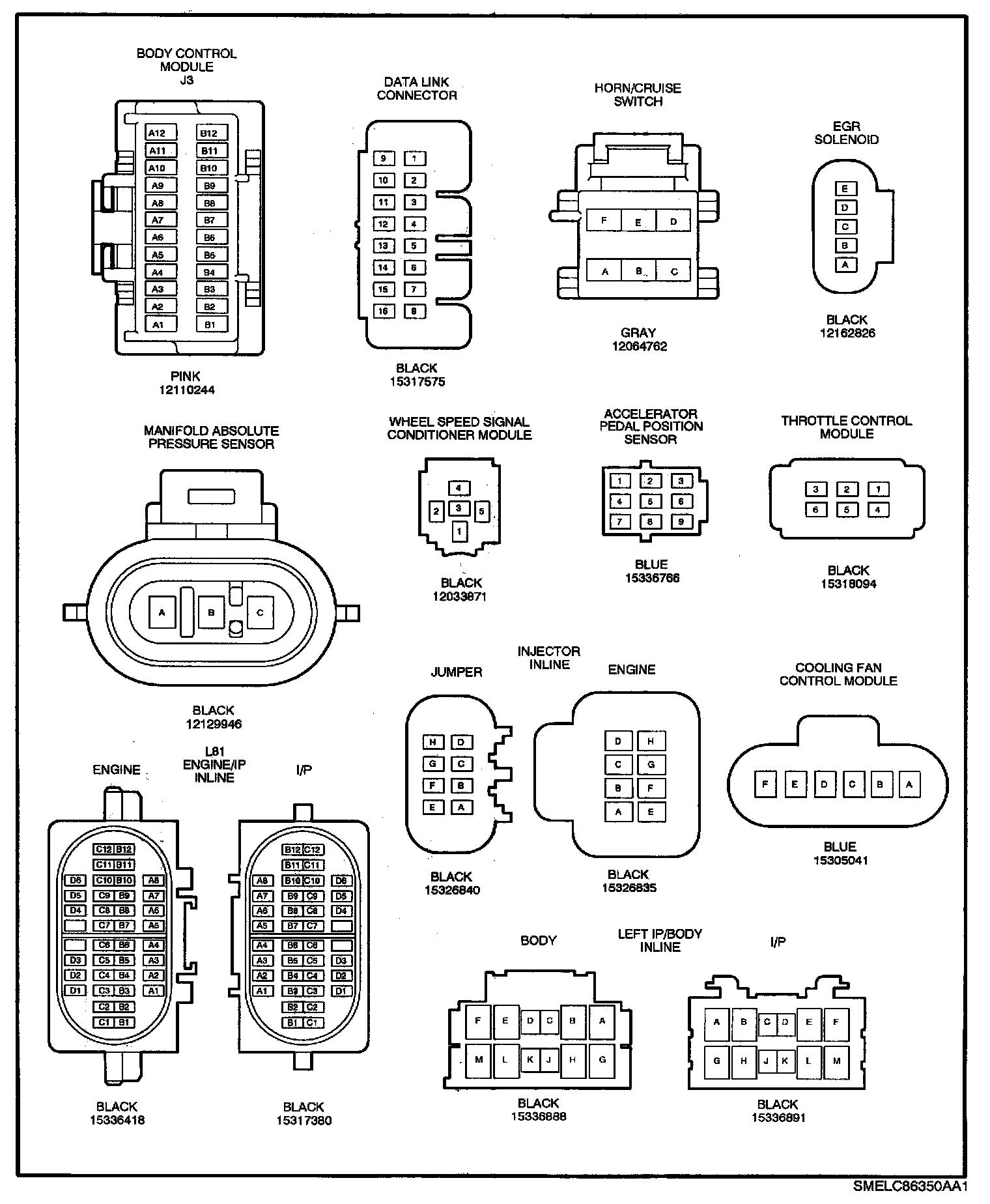

Engine Control Module (ECM) Harness Connector Faces (Part 1 Of 3):

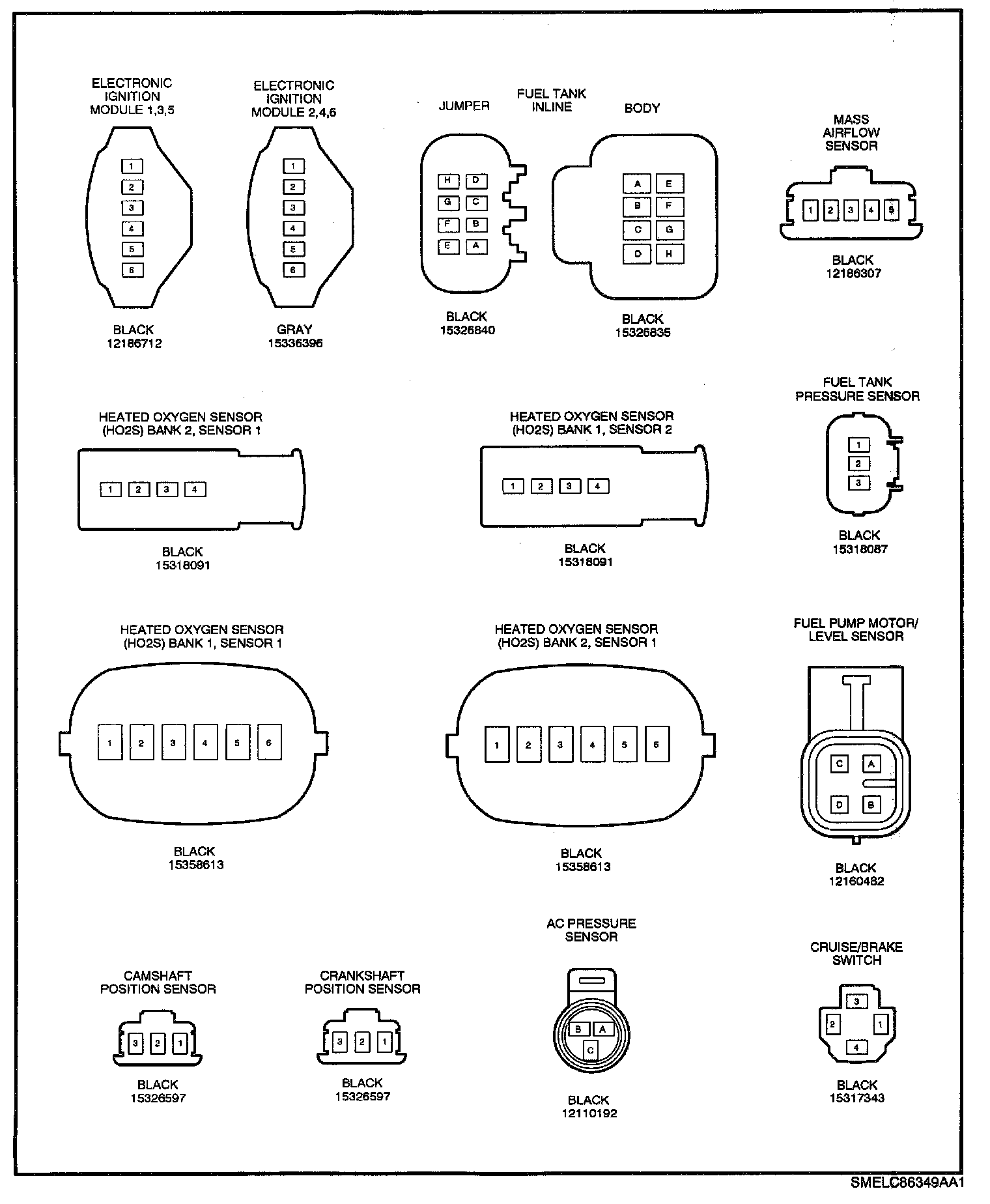

Engine Control Module (ECM) Harness Connector Faces (Part 2 Of 3):

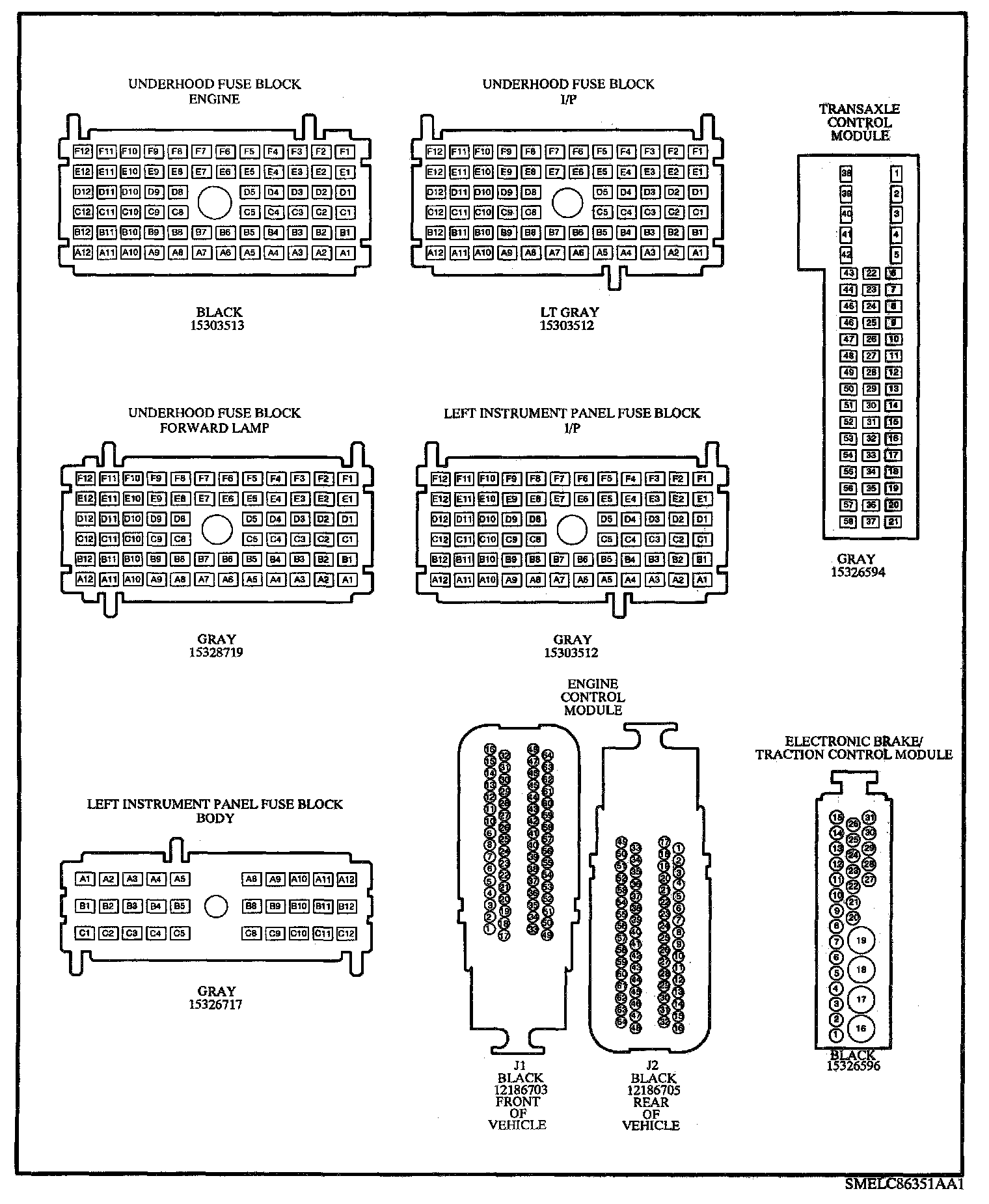

Engine Control Module (ECM) Harness Connector Faces (Part 3 Of 3):
