Scan Tool Parameter Chart

SCAN TOOL PARAMETER CHART
The following transaxle data definitions are intended to assist in understanding the data displayed by a Scan tool when it is communicating with the PCM. A thorough understanding of this data will not only aid in diagnosing transaxle related problems, but will also help eliminate unnecessary repairs.
Parameters are in alphabetical order.
Table #0: Trans Data Table
Table #1: Adaptive Table
Table #2: Trans Output Driver Status

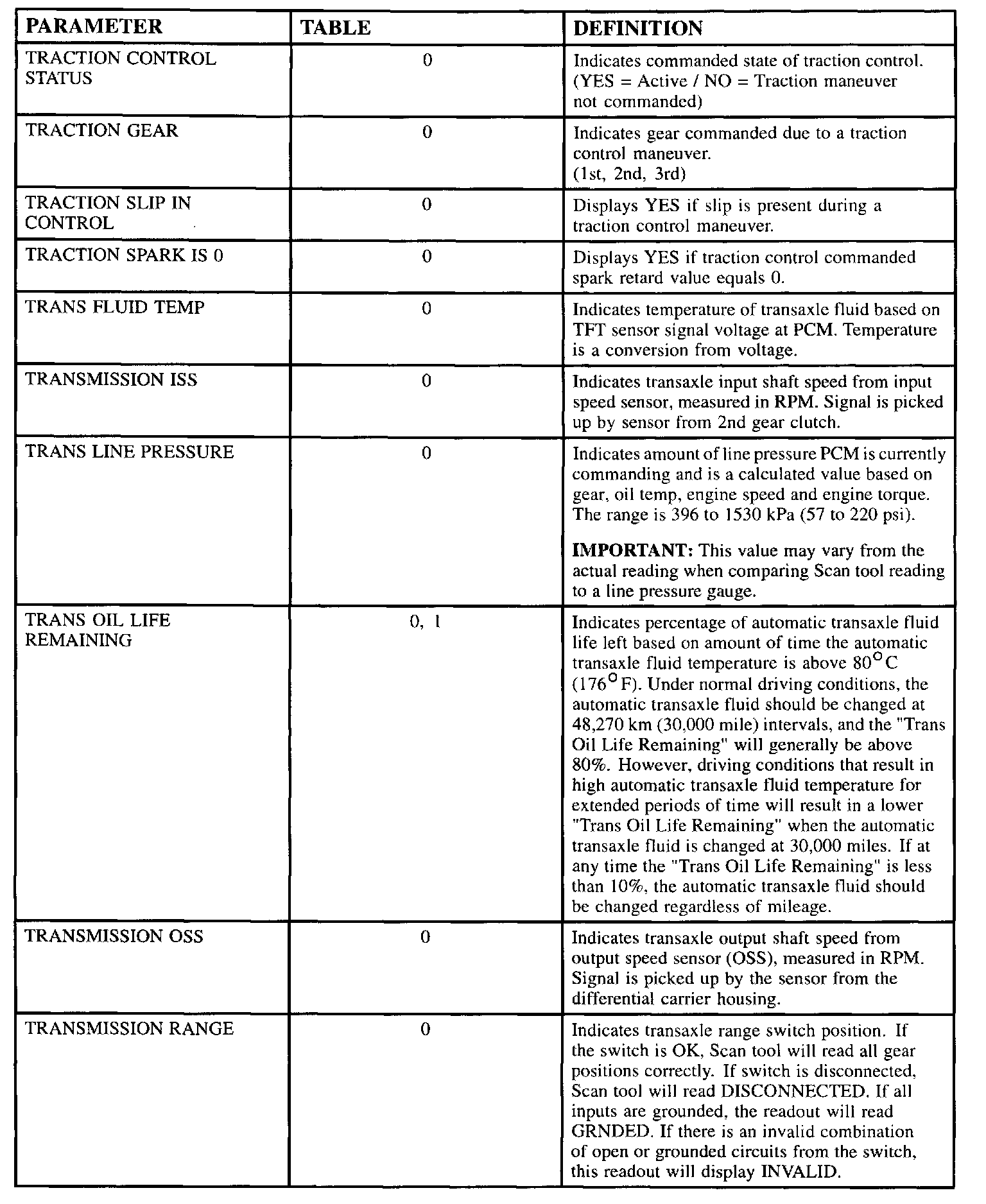

Part 1 of 6

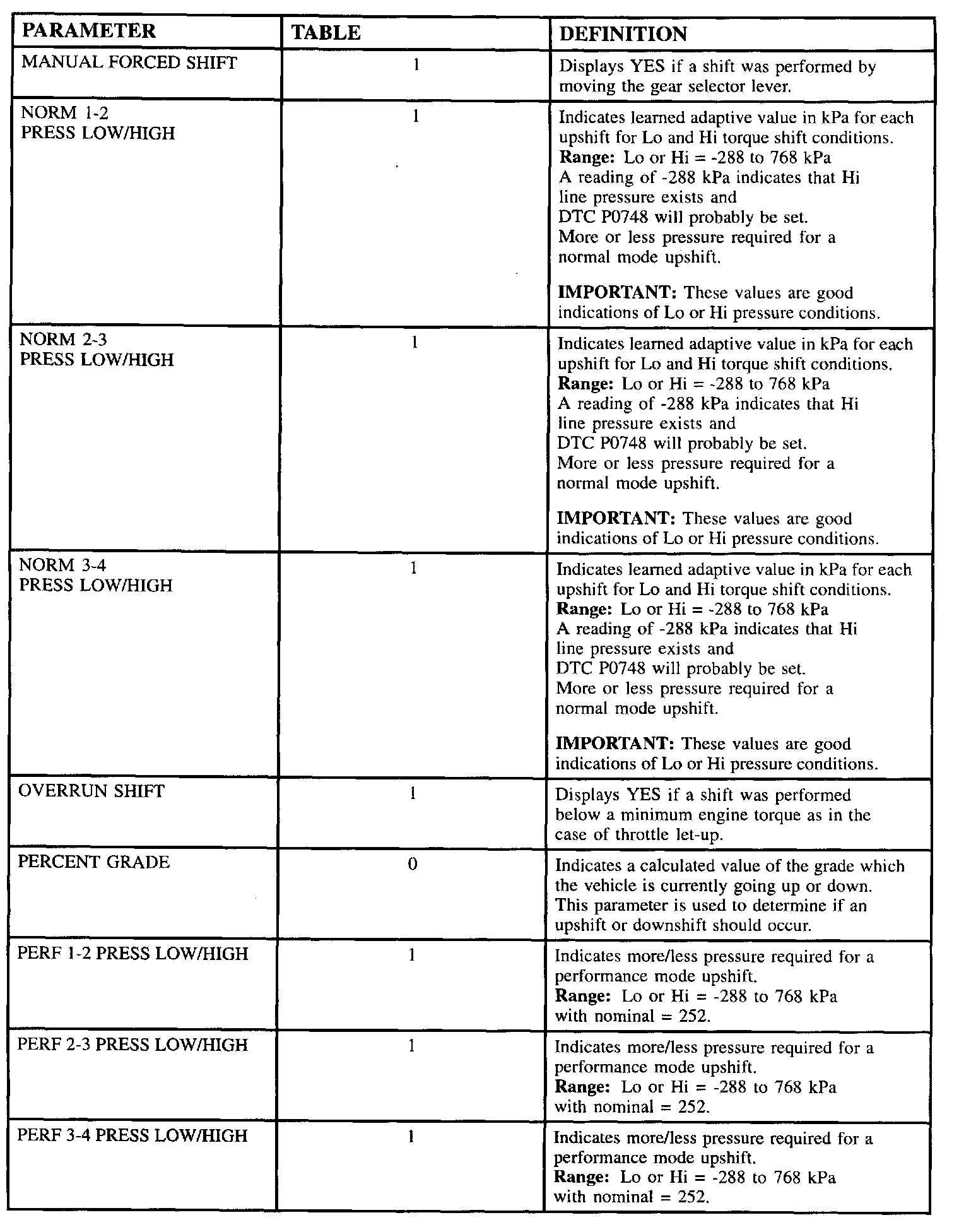

Part 2 of 6

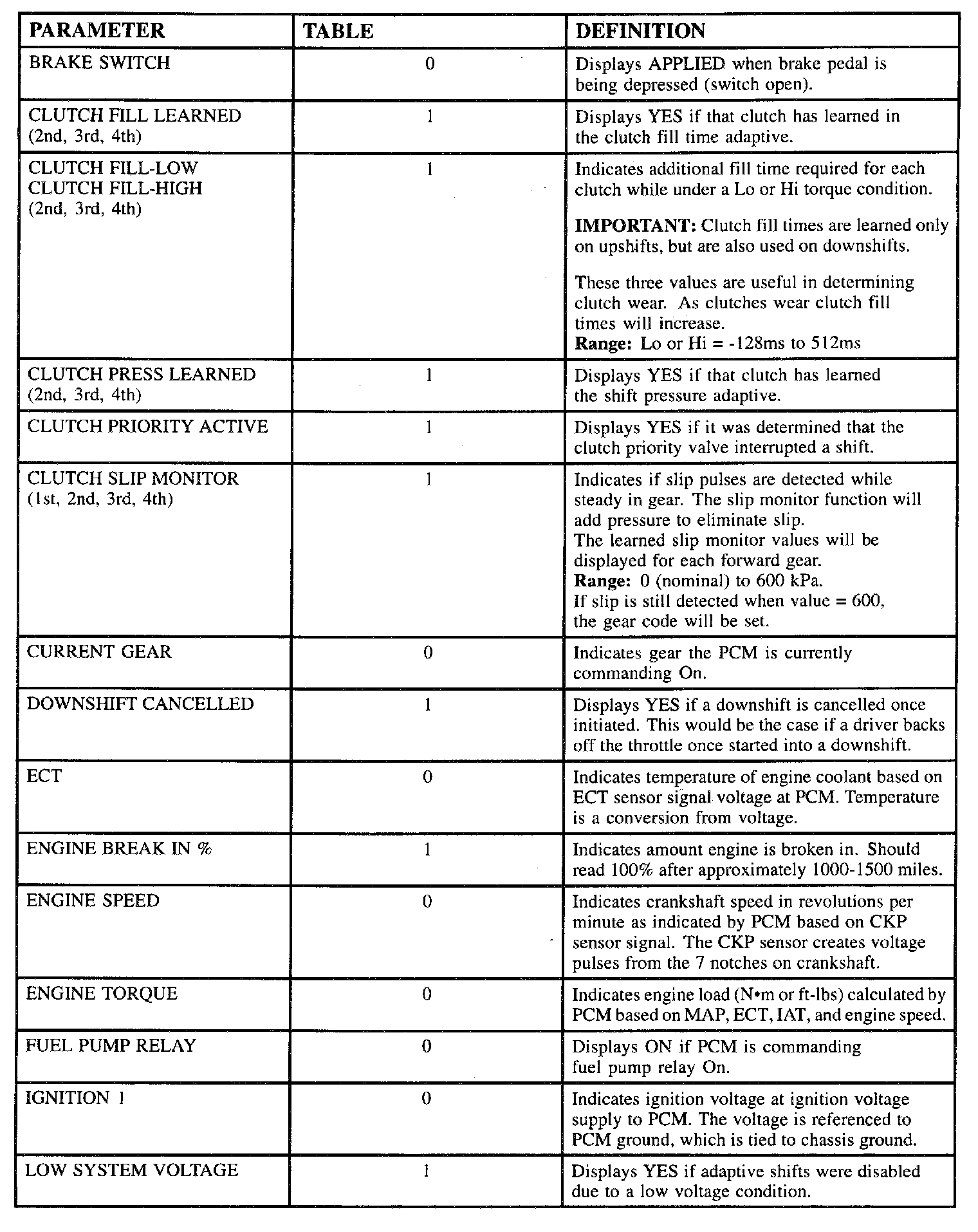

Part 3 of 6





Part 4 of 6

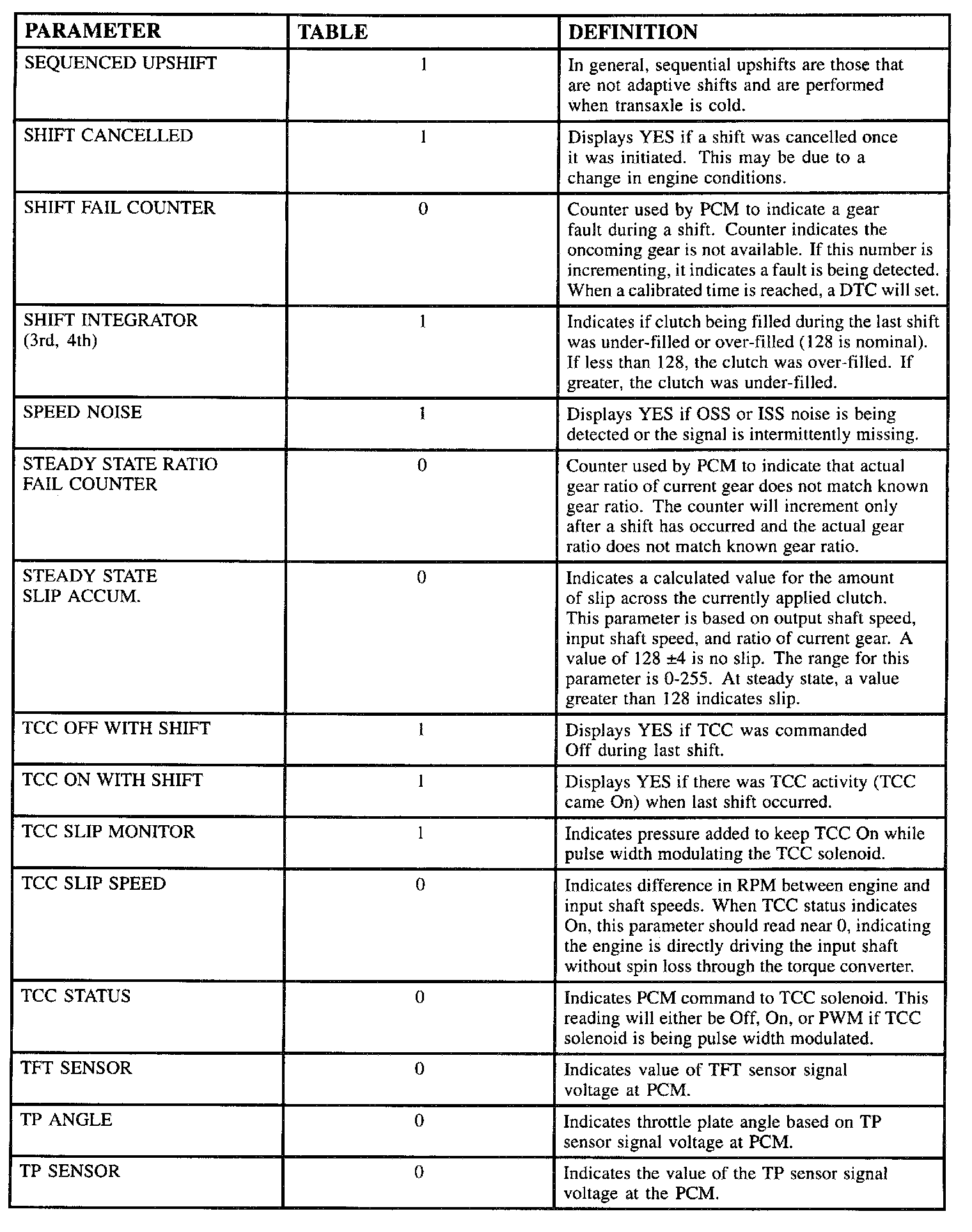

Part 5 of 6

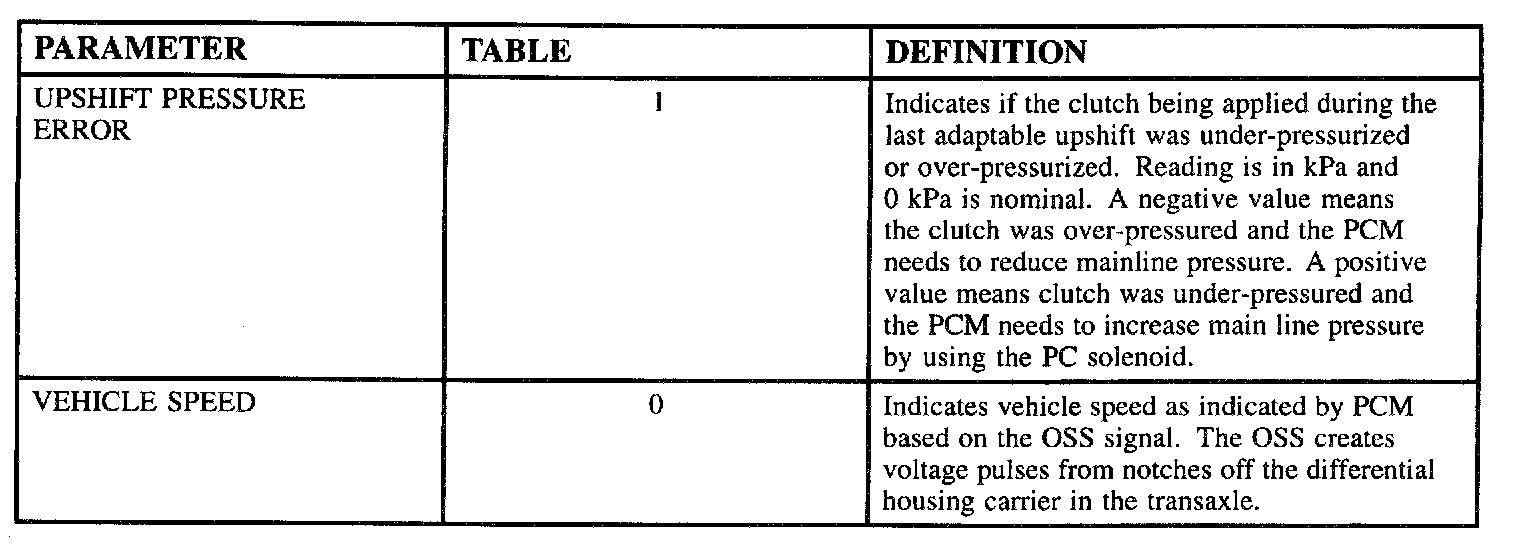

Part 6 of 6
