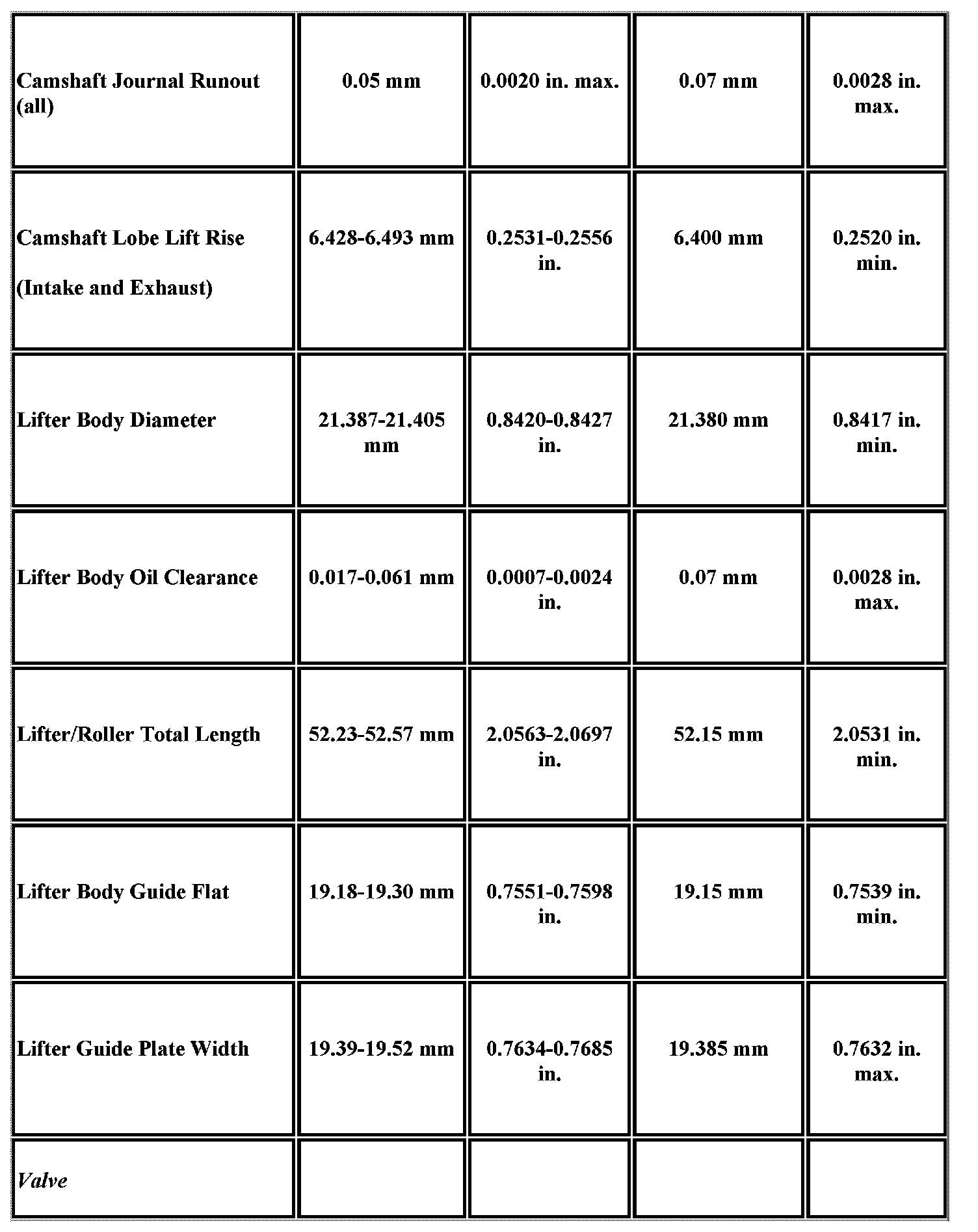

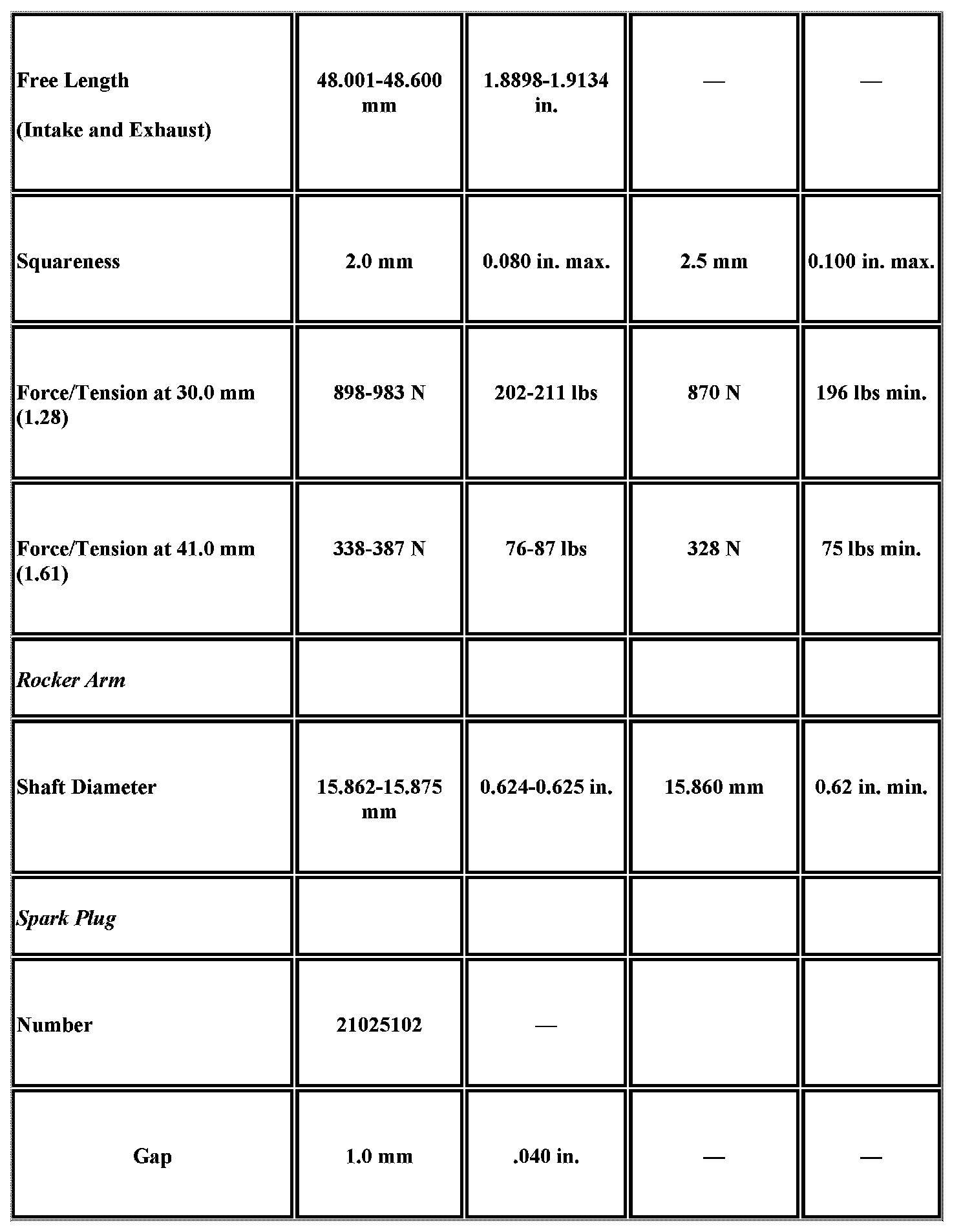

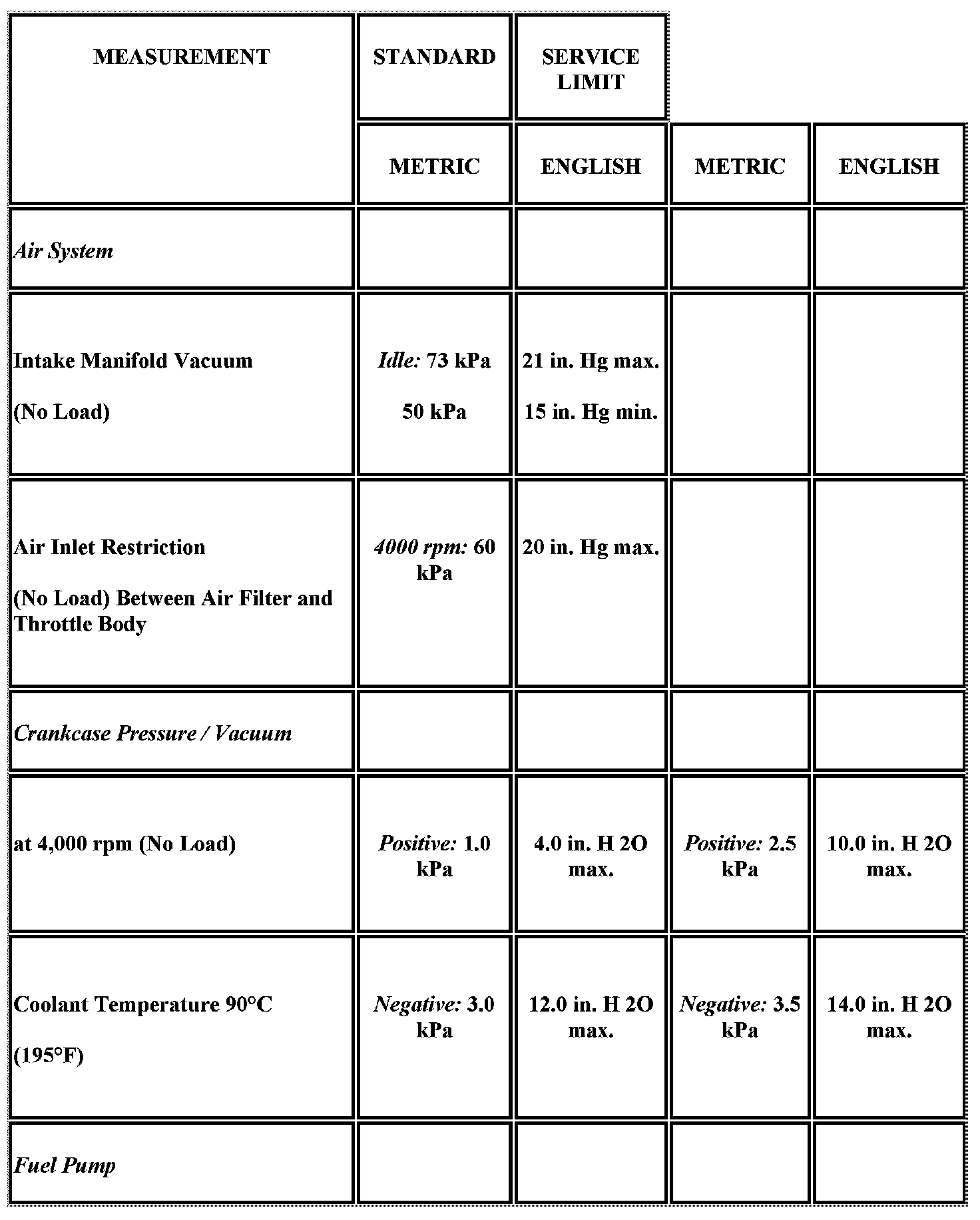

Engine Mechanical Specifications

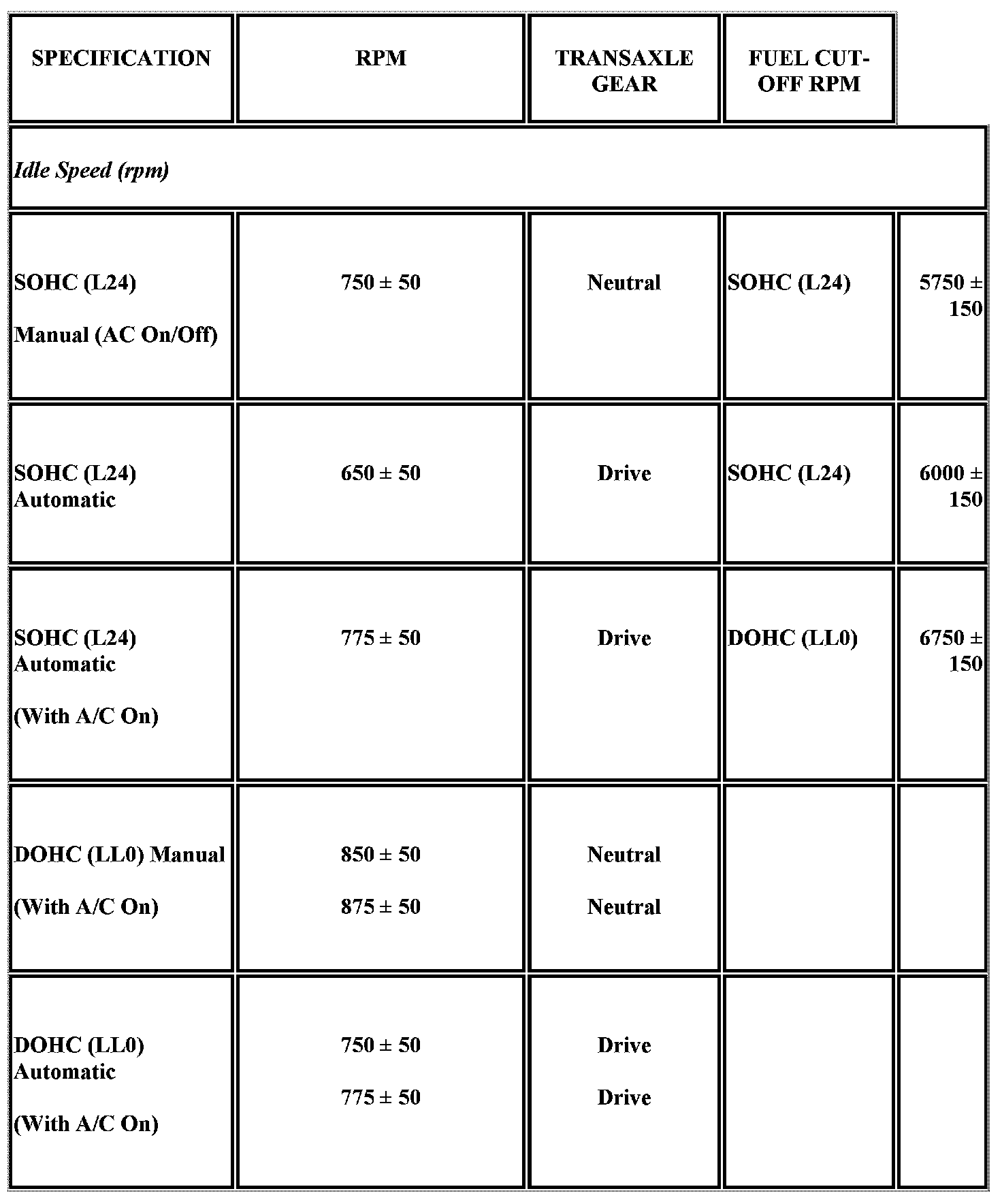

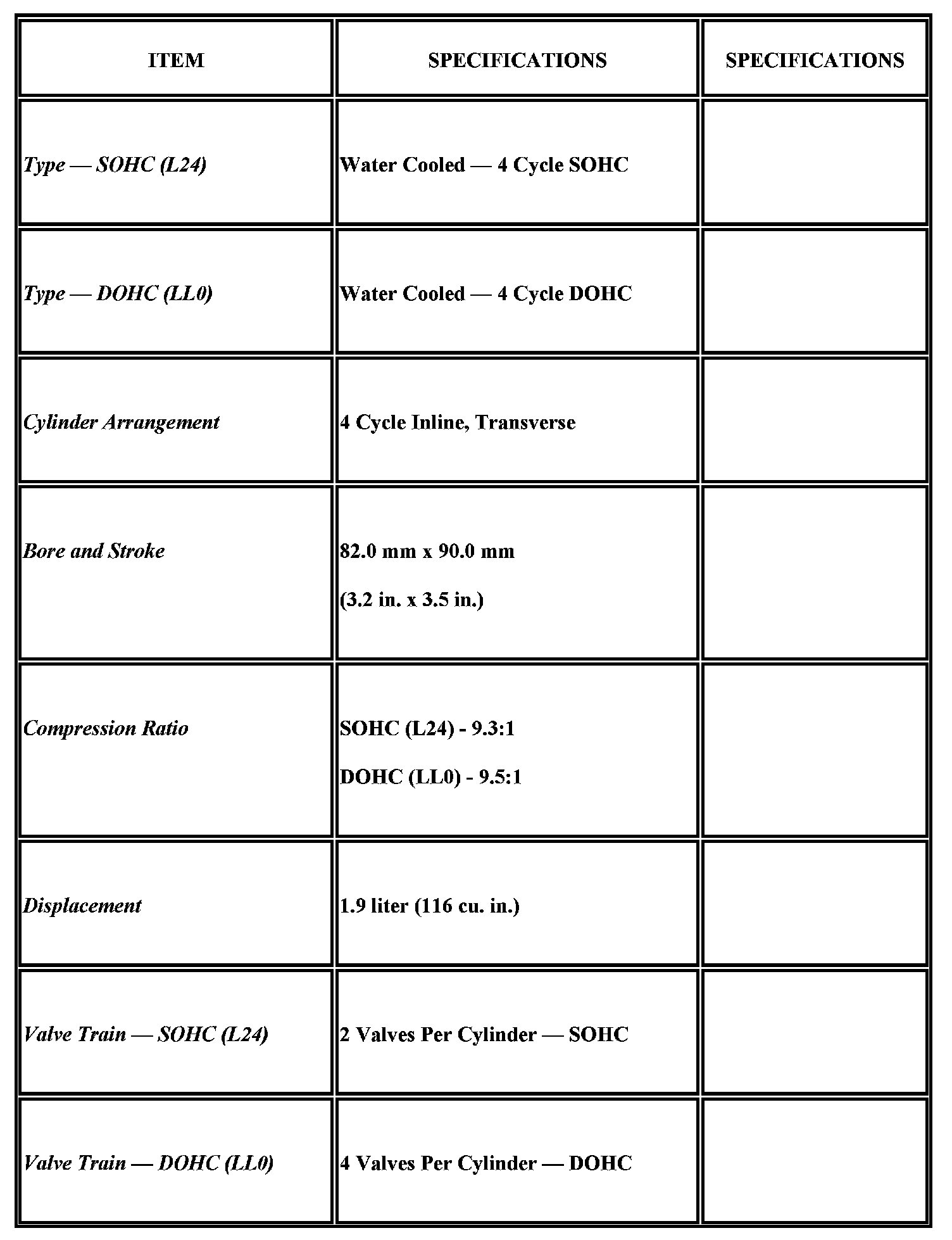

Design Specifications

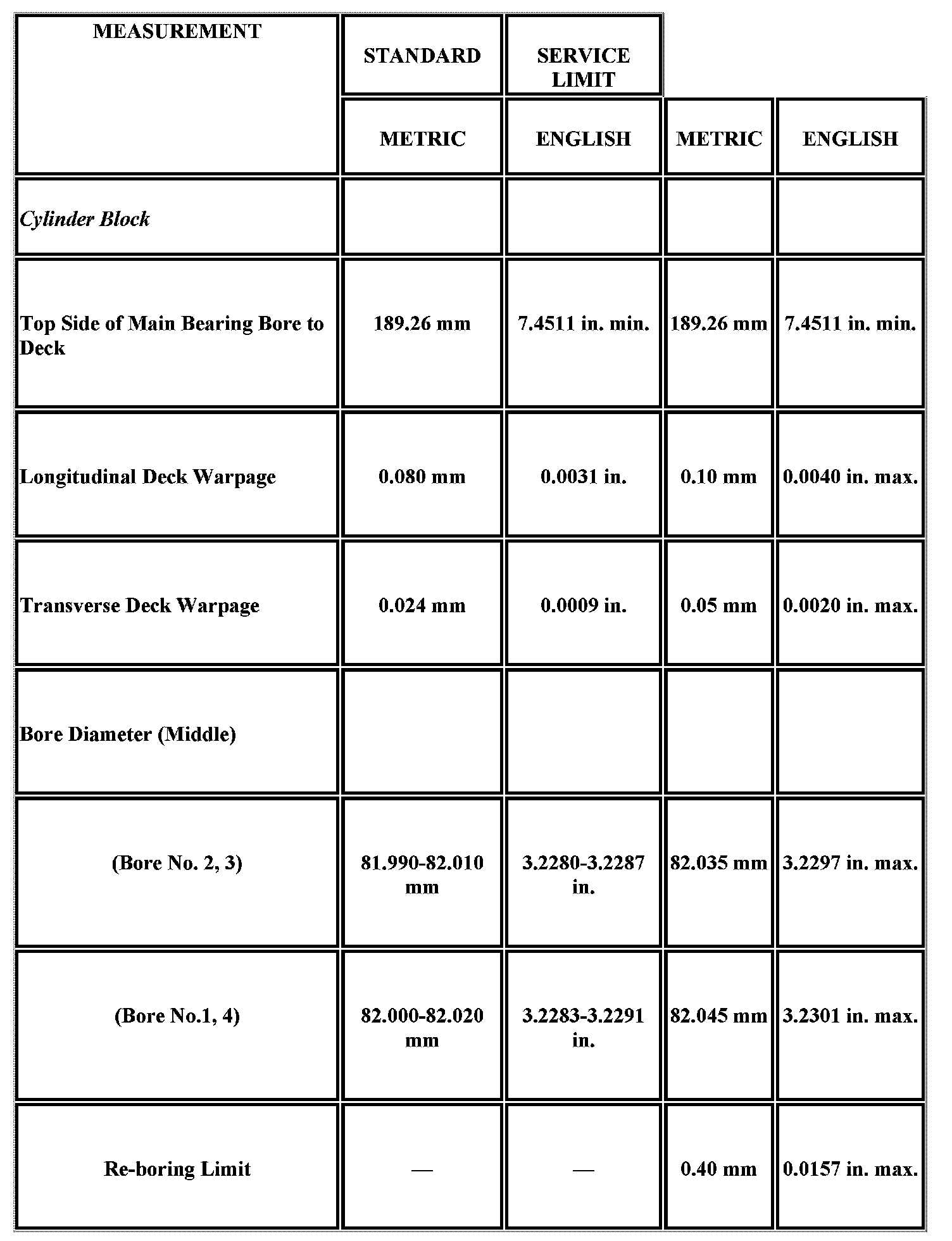

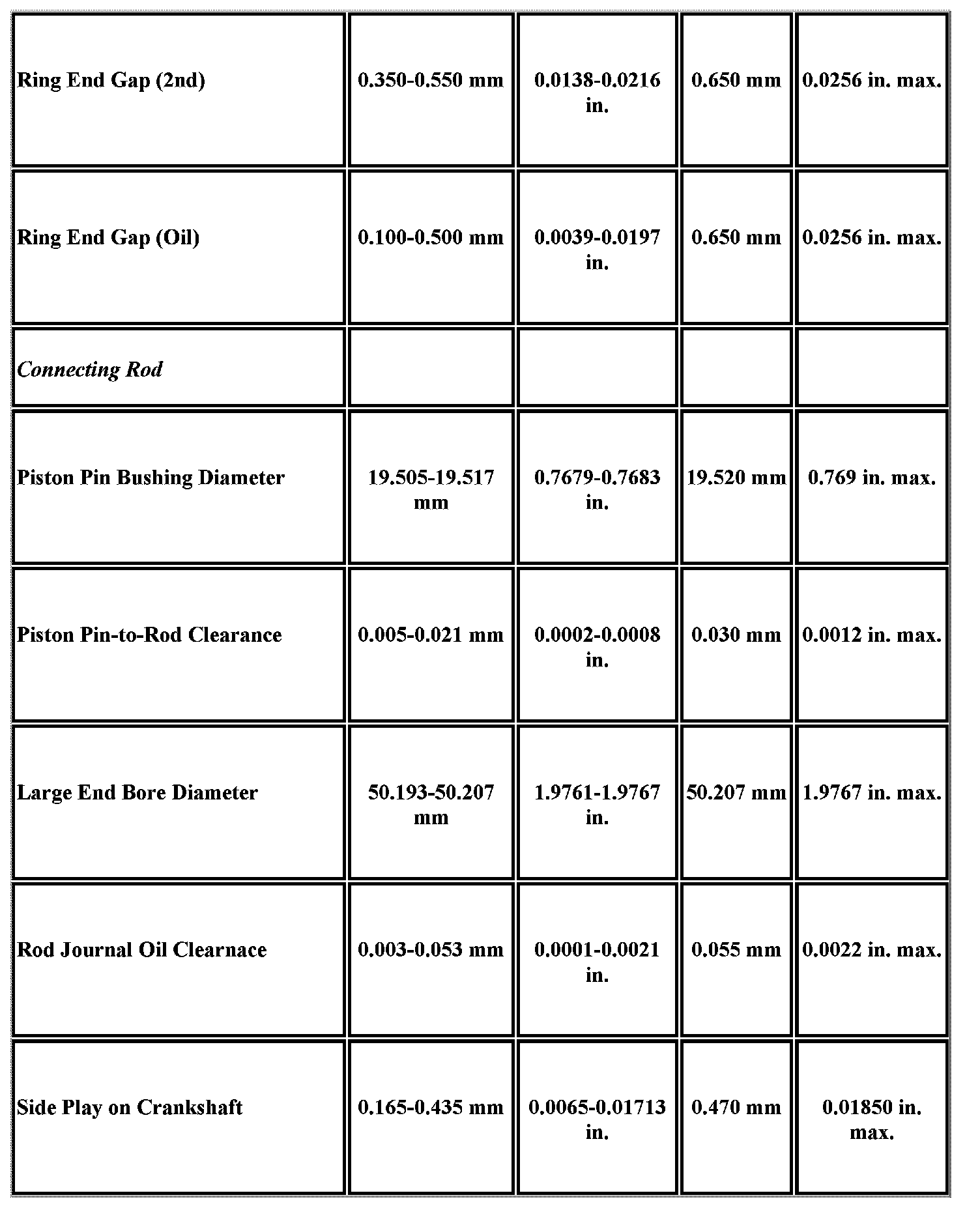

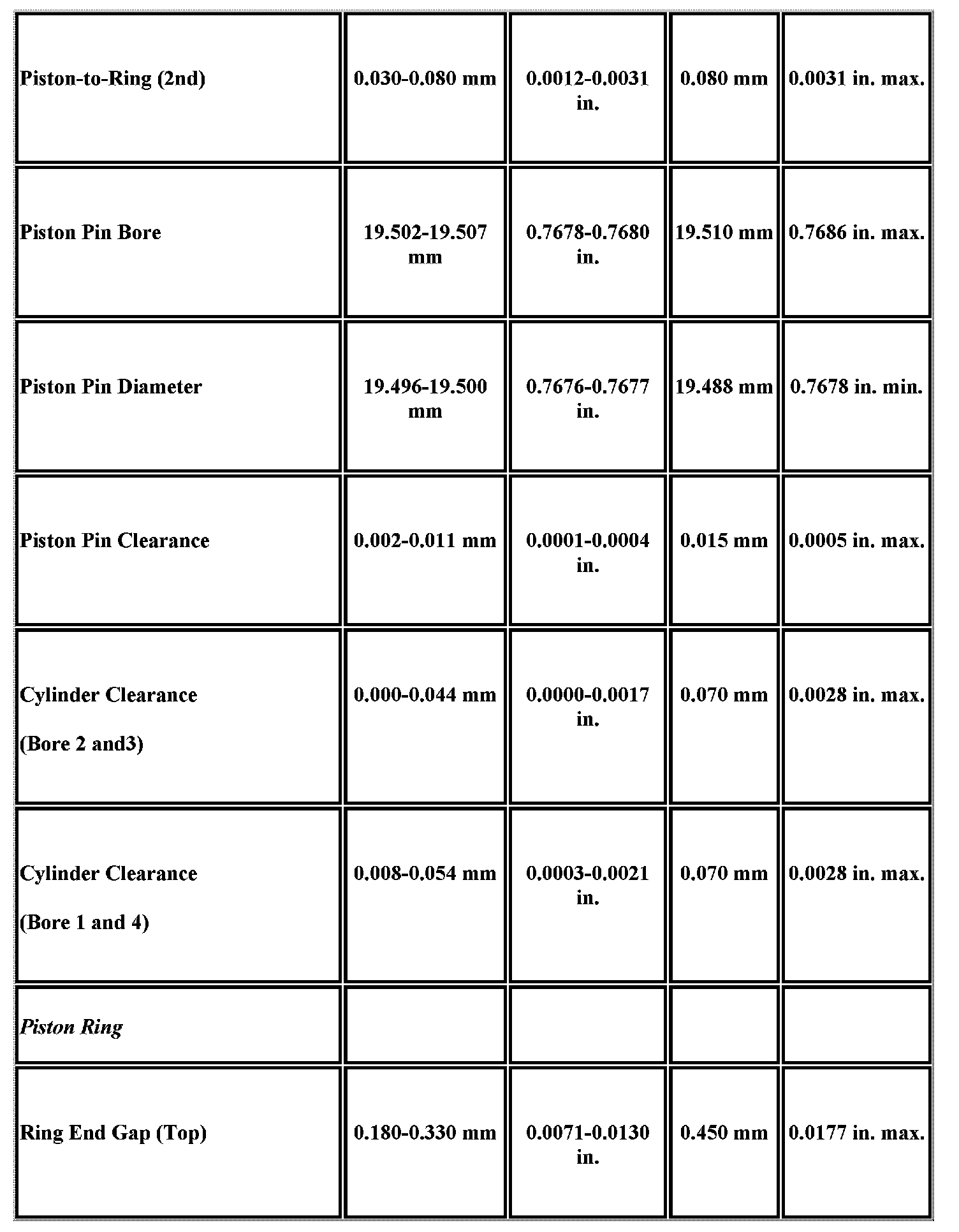

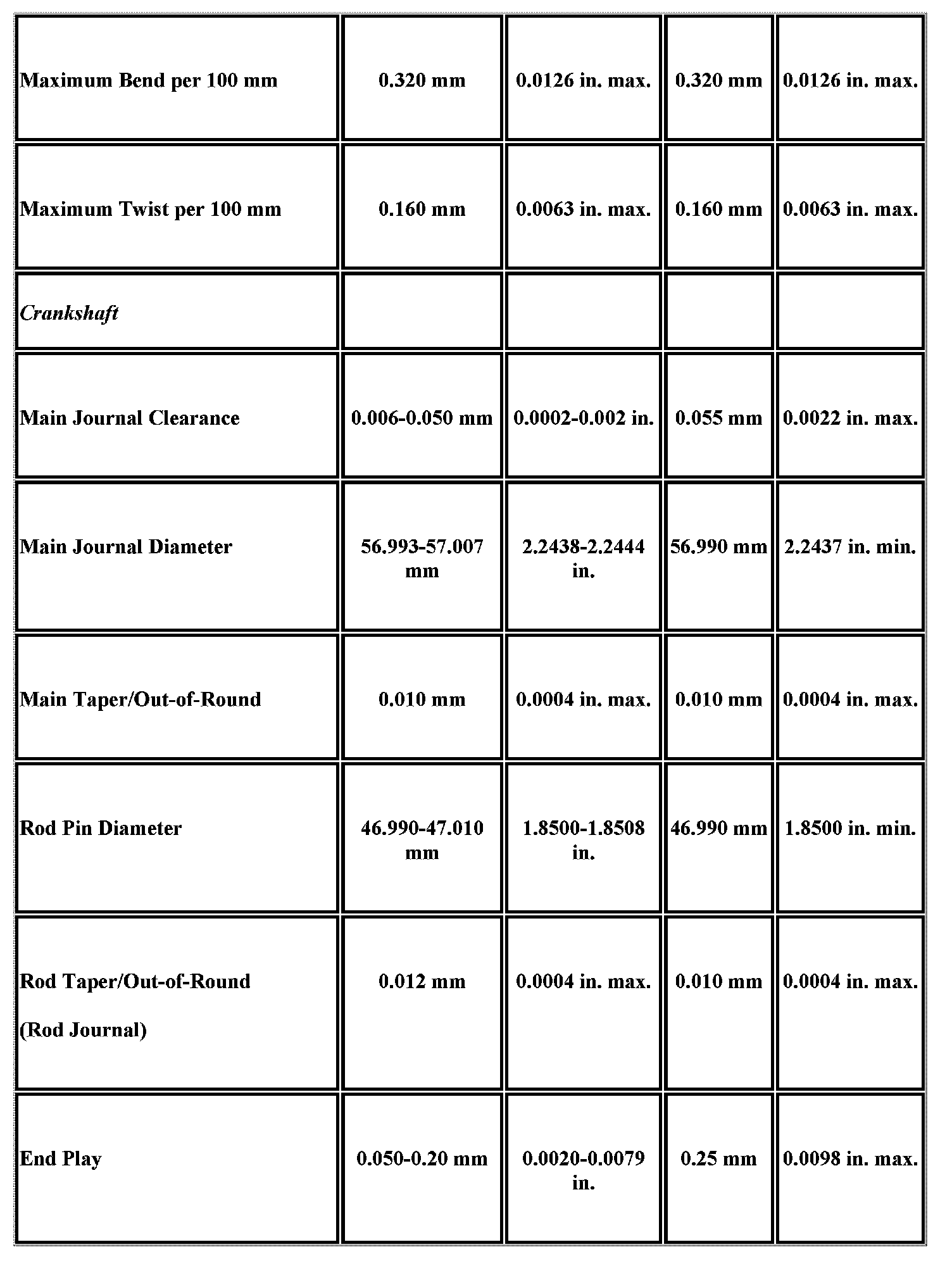

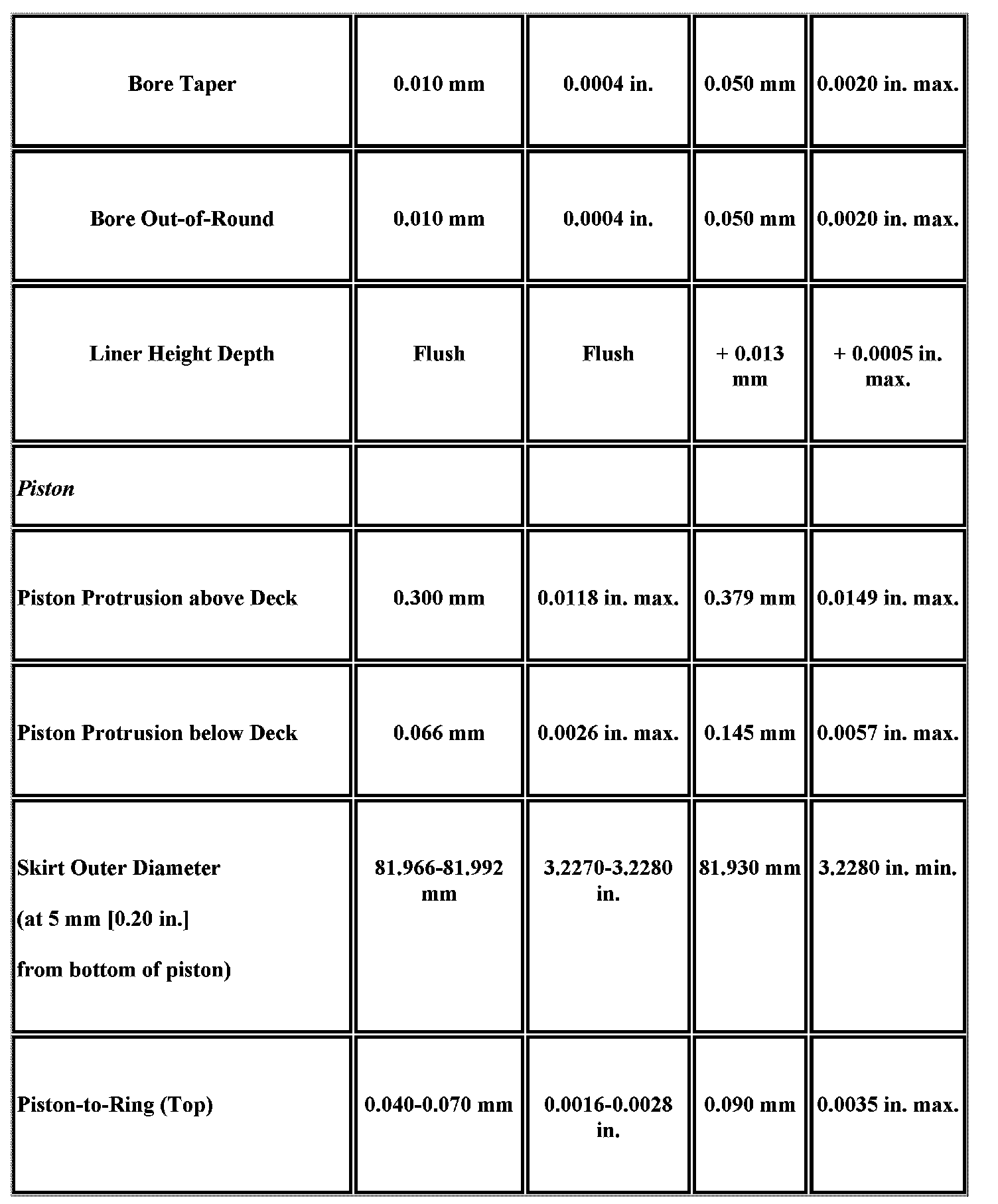

Engine Block

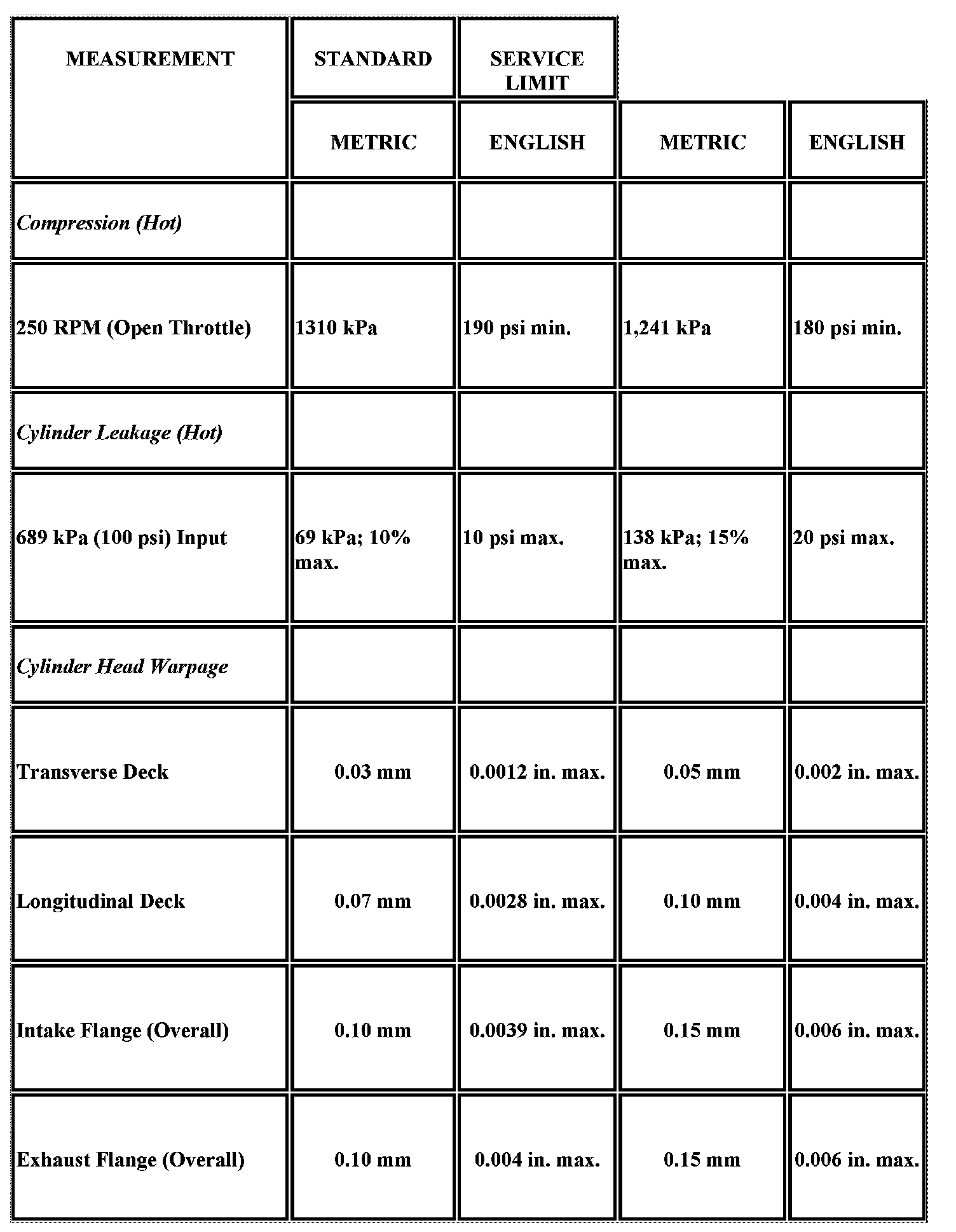

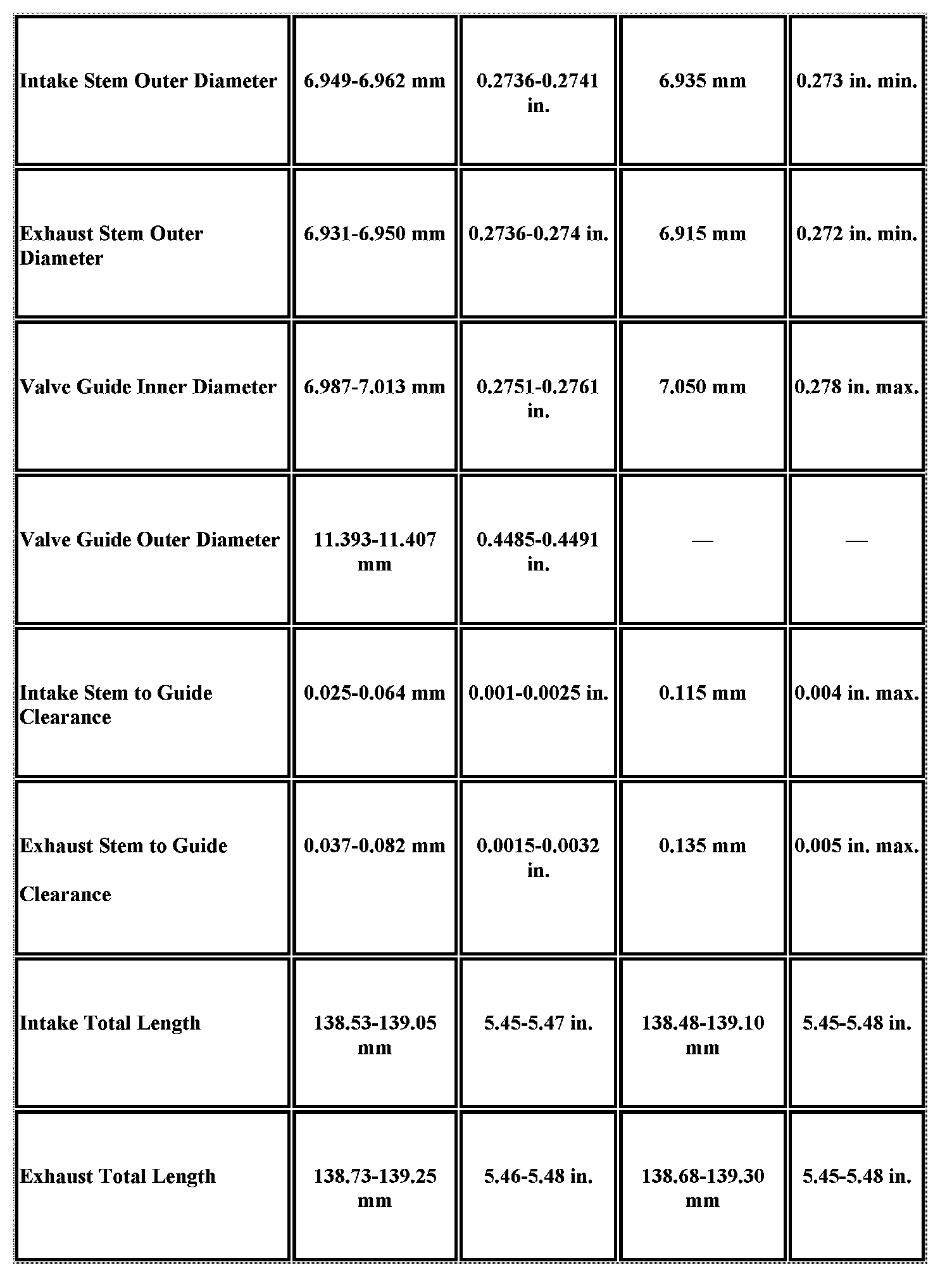

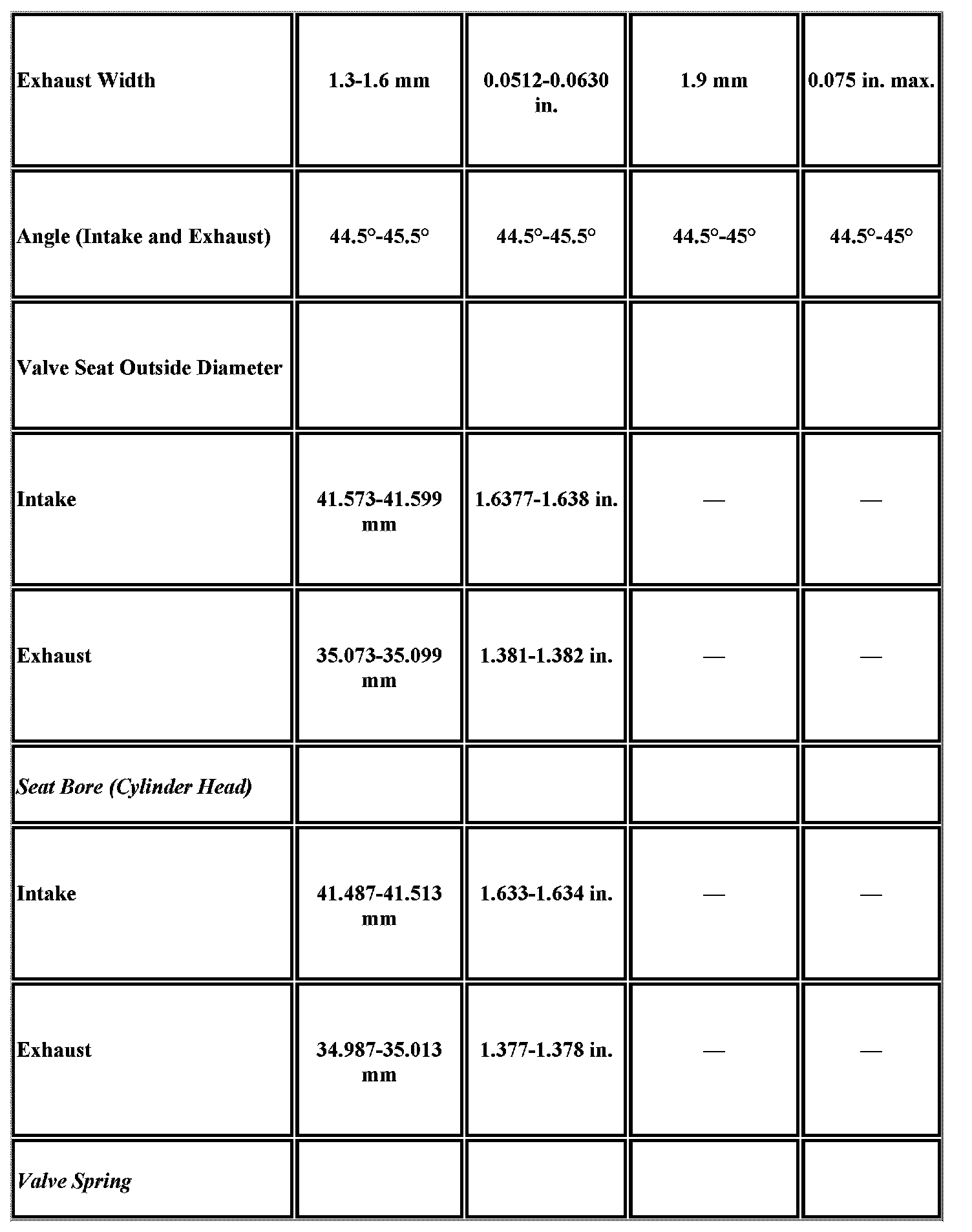

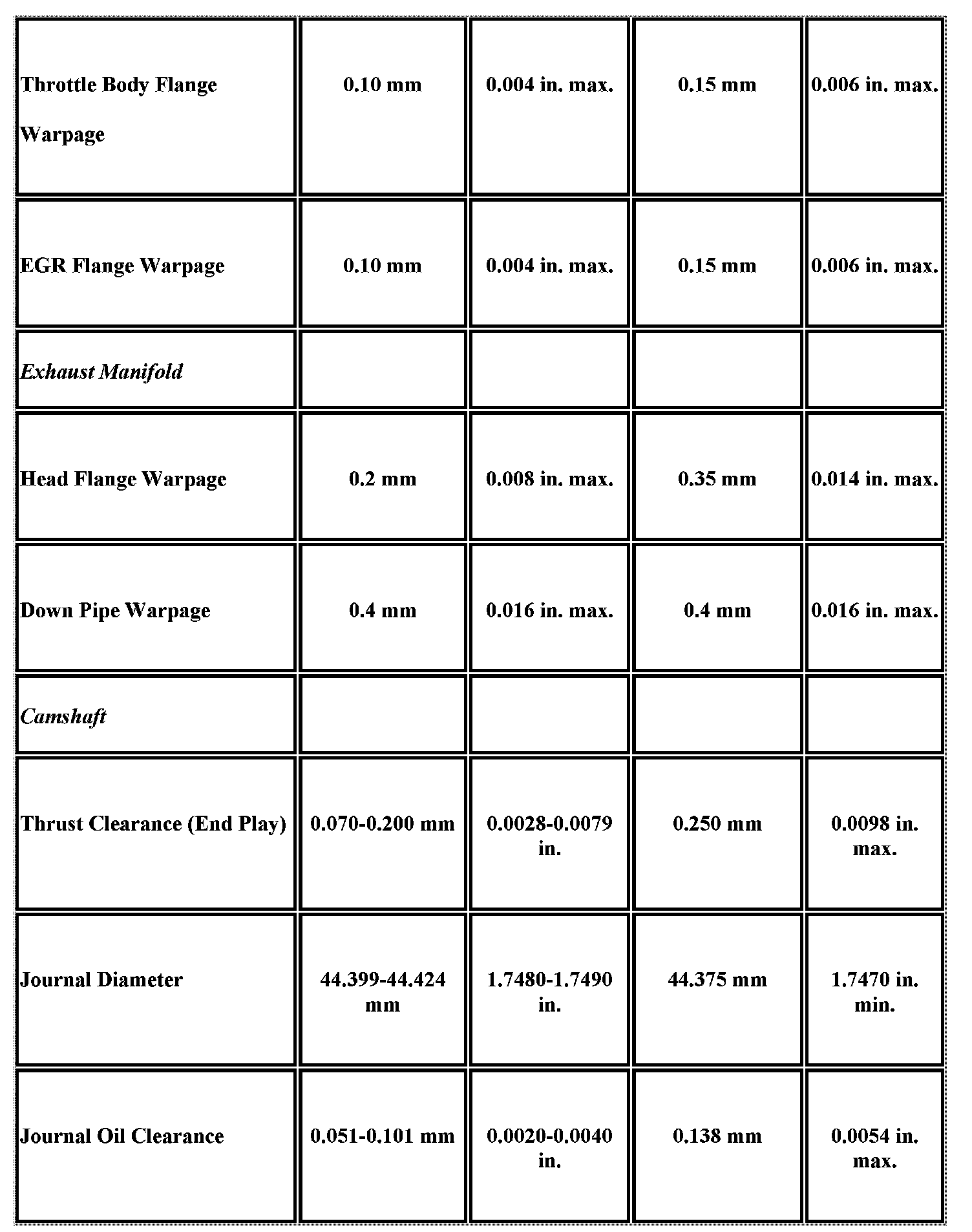

Cylinder Head

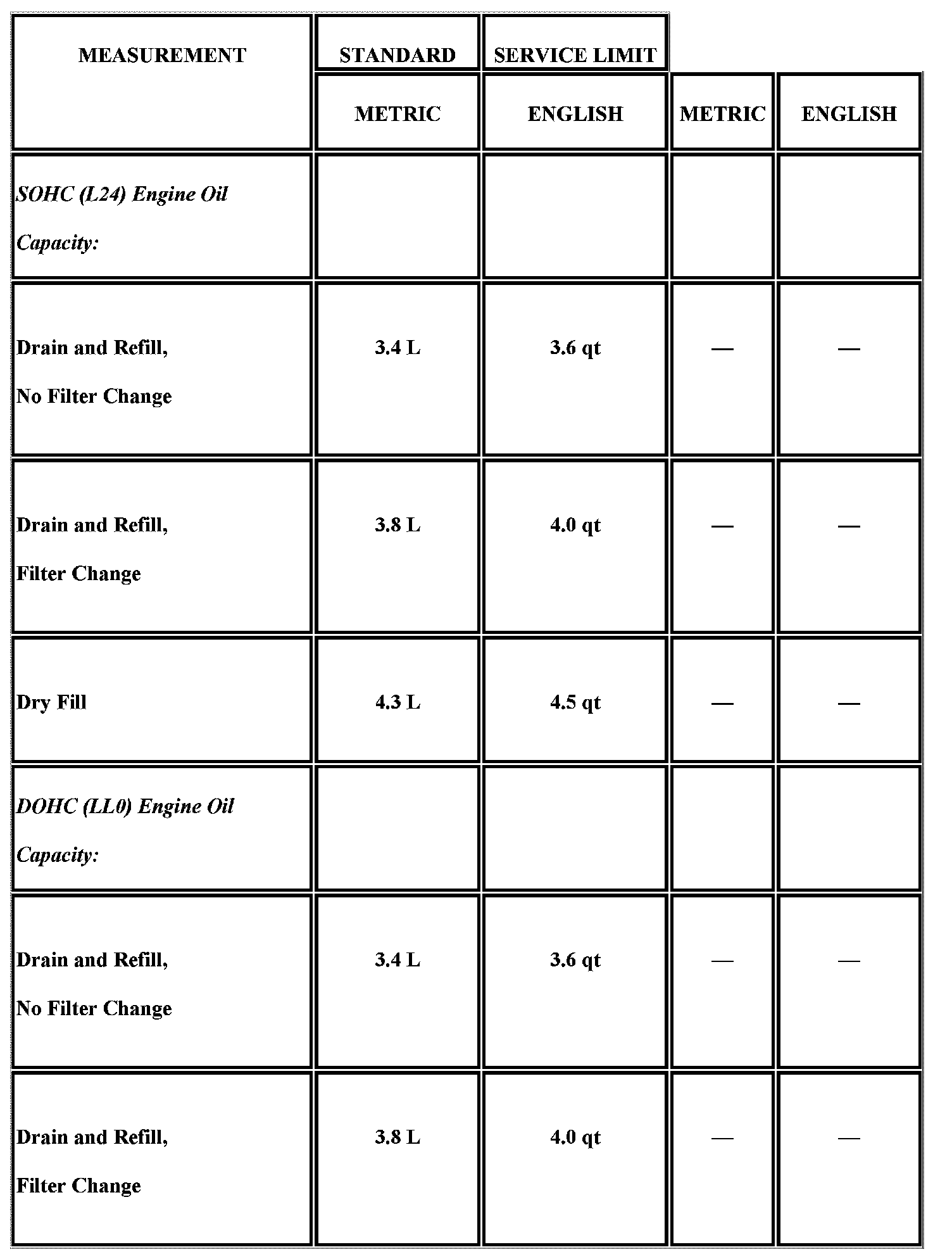

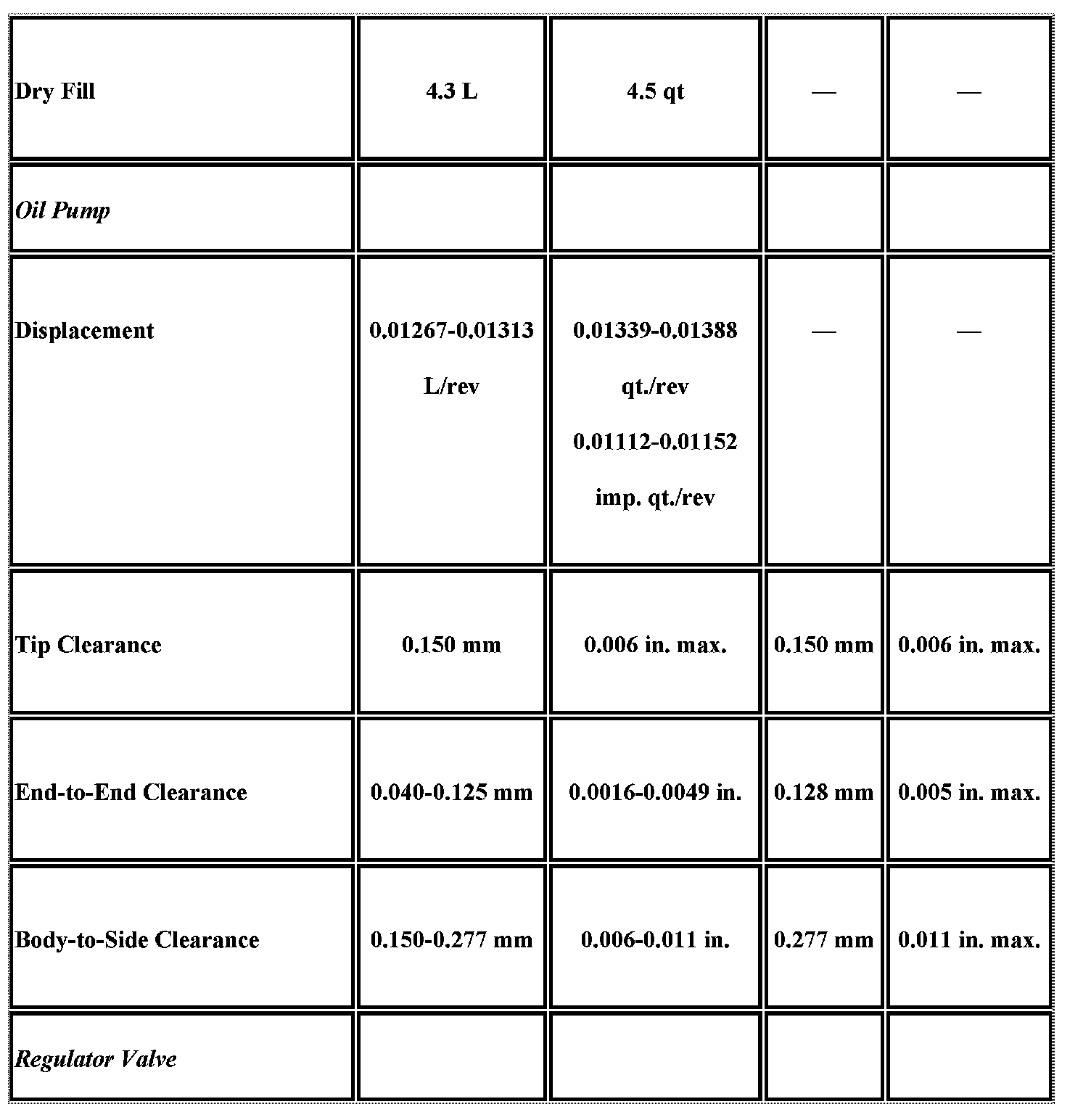

Engine Lubrication

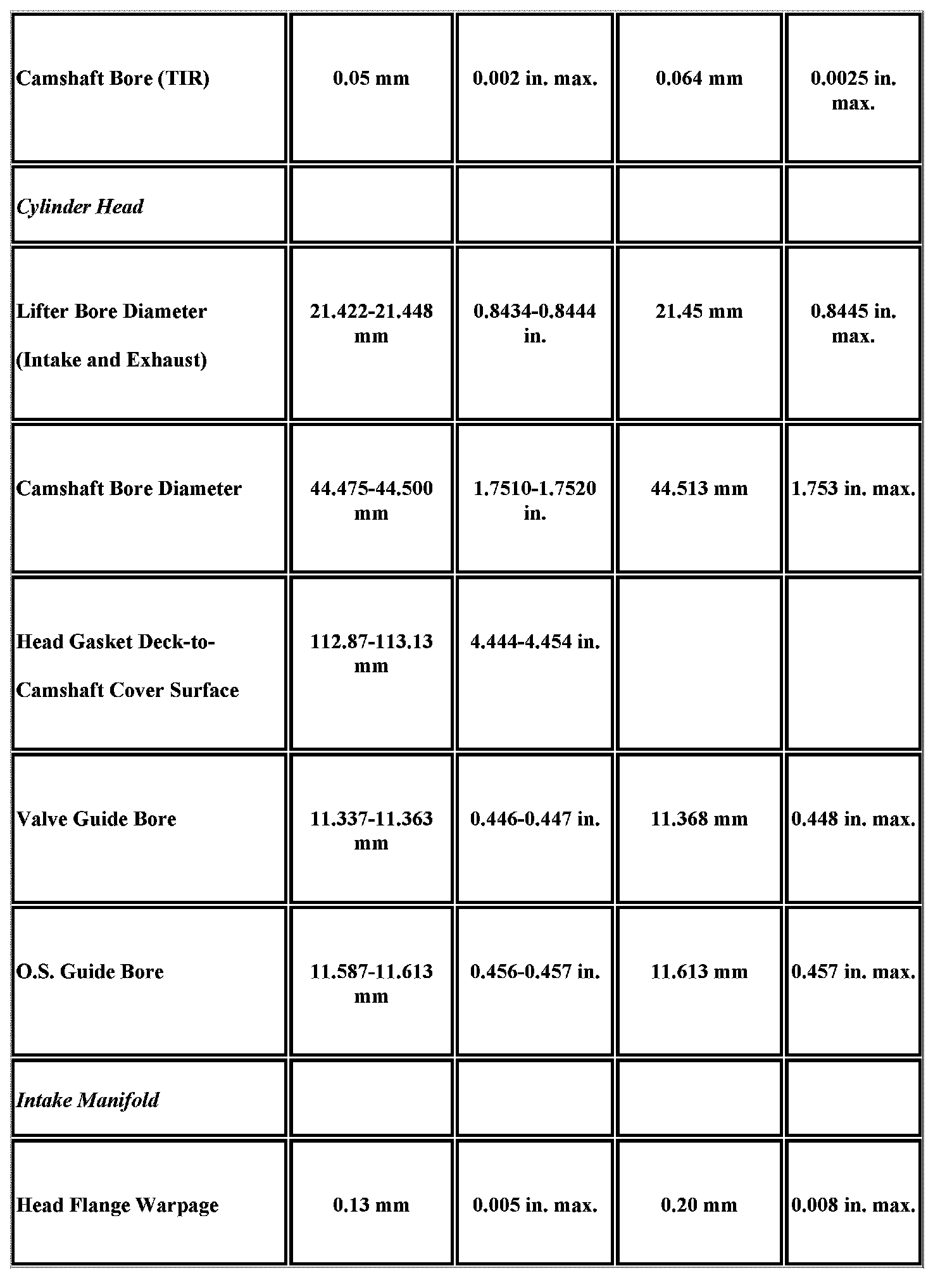

Cam Drive System






Accessory Drive Belt/Tensioner

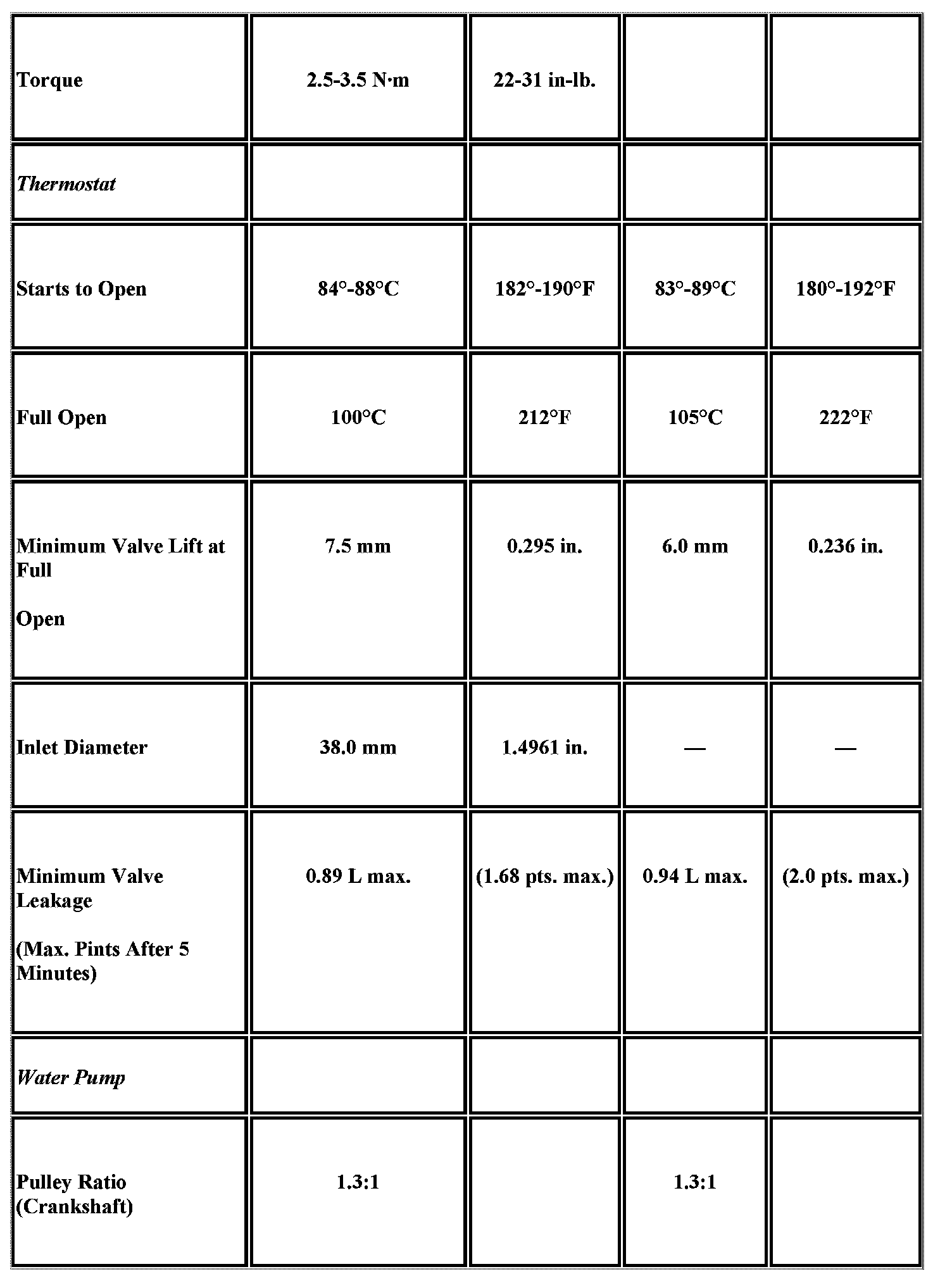

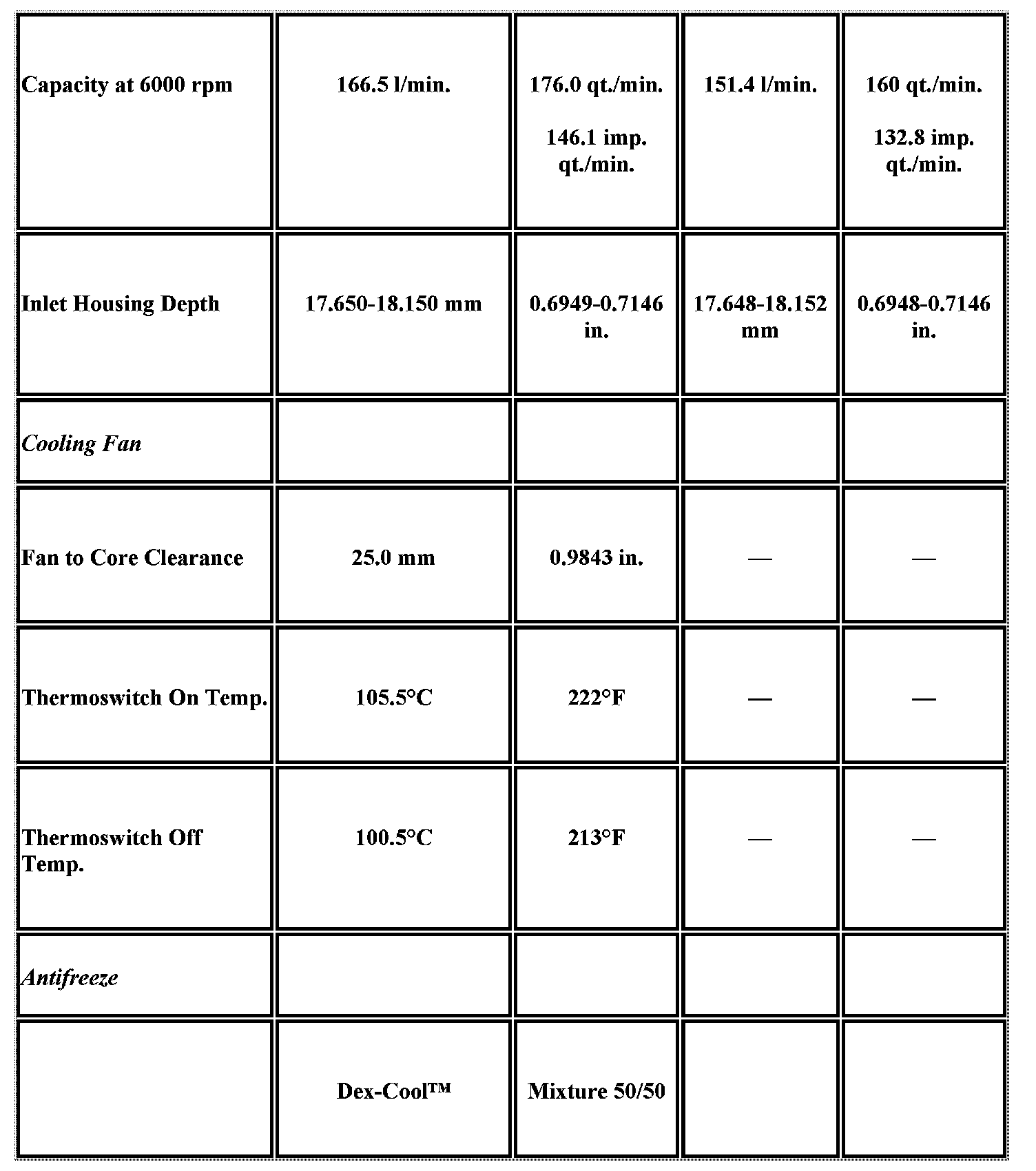

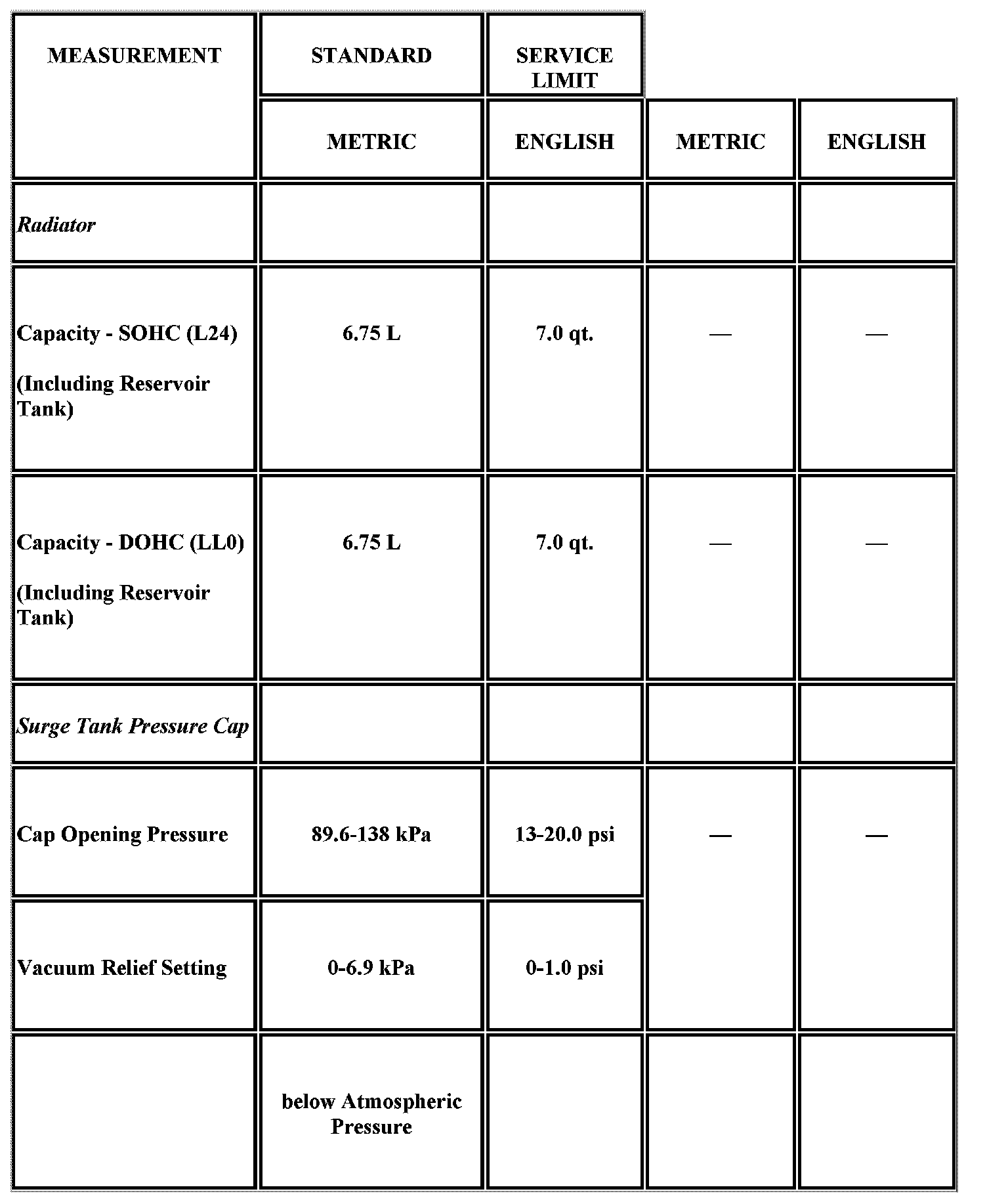

Cooling System














Fuel and Emission System

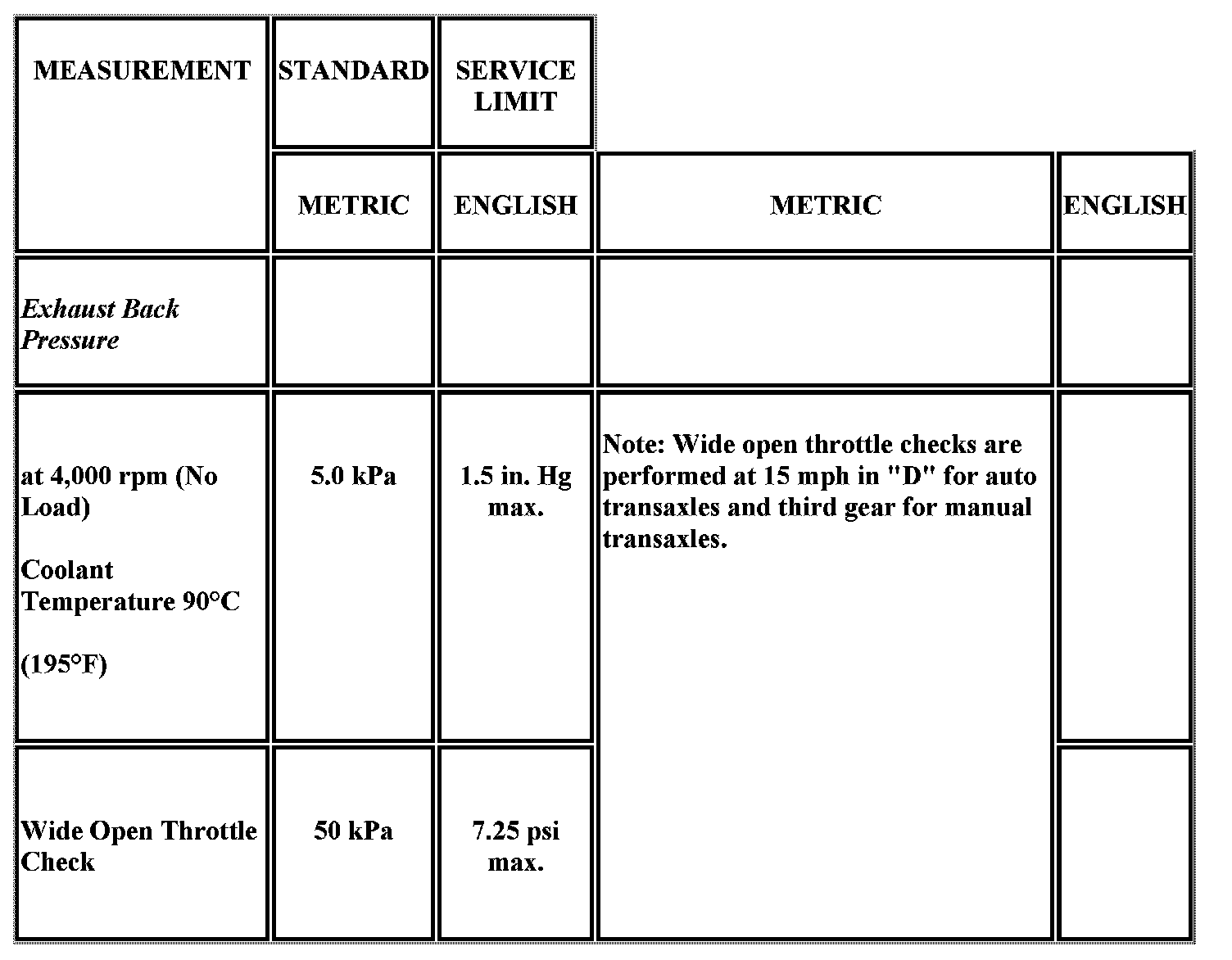

Exhaust System
