Onstar Module

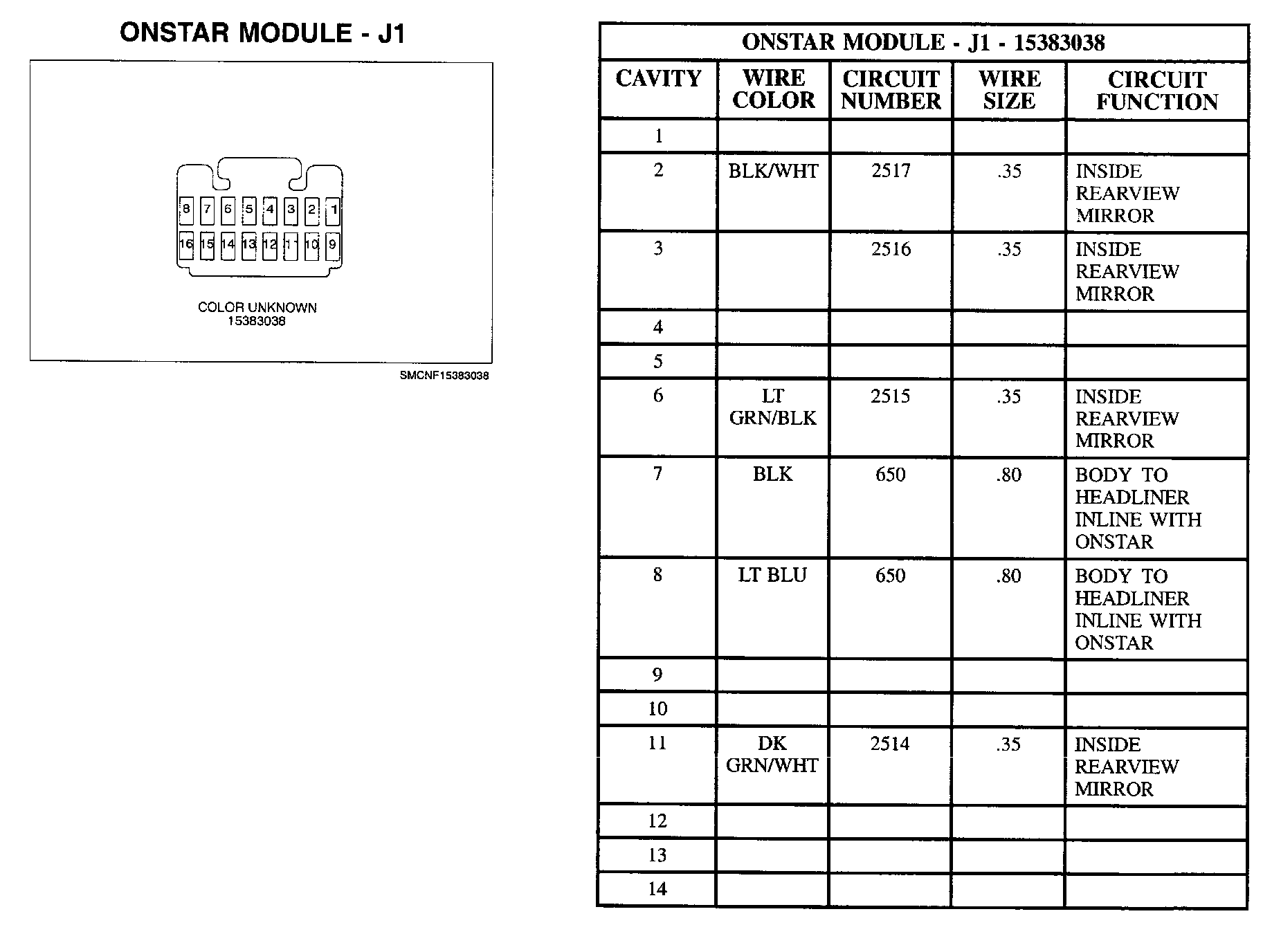

Onstar Module - J1 Part 1:
Onstar Module - J1 Part 2:

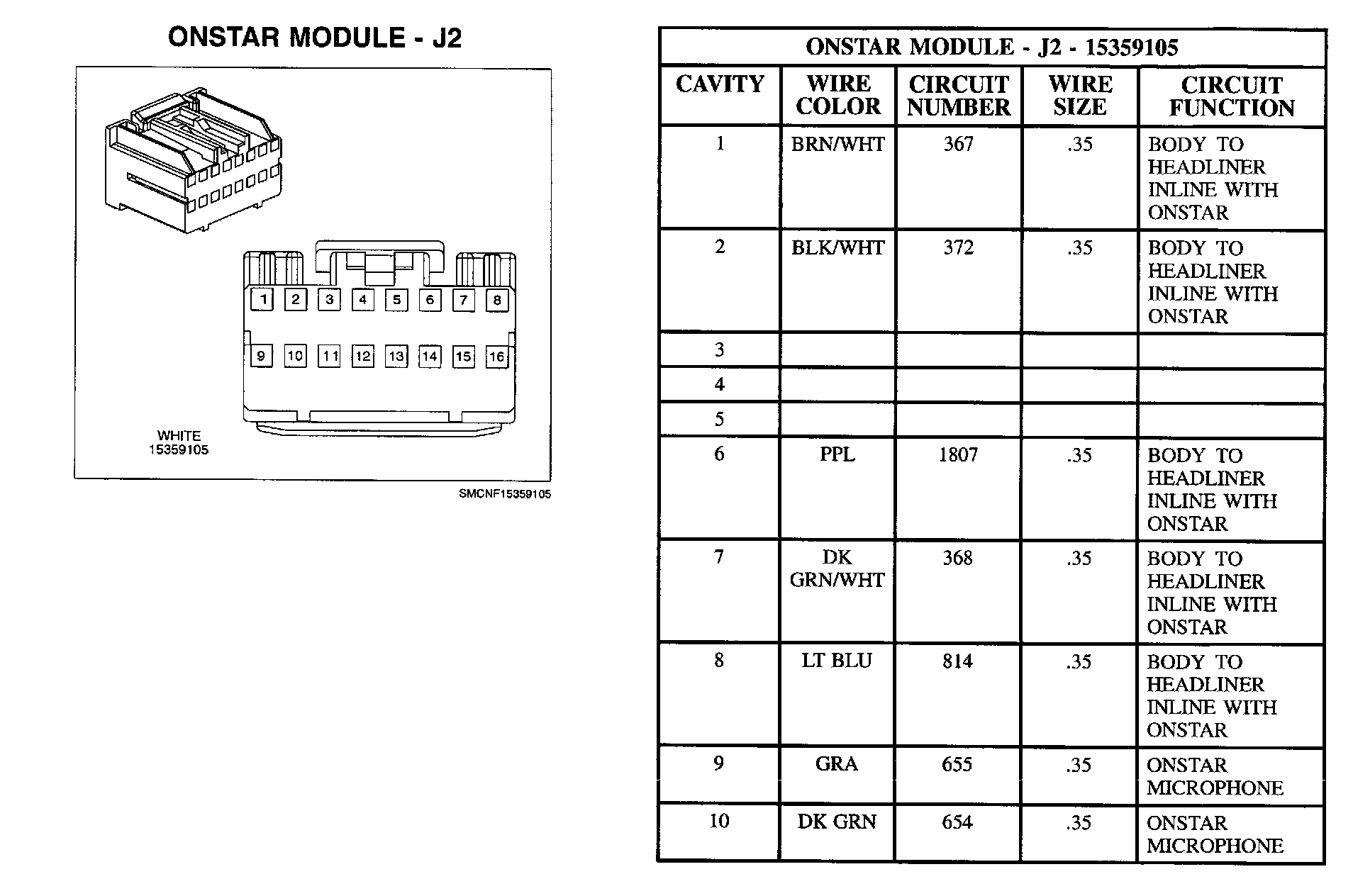

Onstar Module - J2 Part 1:
Onstar Module - J2 Part 2:
