Ignition Module/PASSLOCK Sensor: Installation

  1. Use new shear bolts to install ignition module assembly on steering column. Torque shear bolts until heads break off.
  2. Install turn signal/headlamp lever, windshield washer lever, and passlock sensor connector.

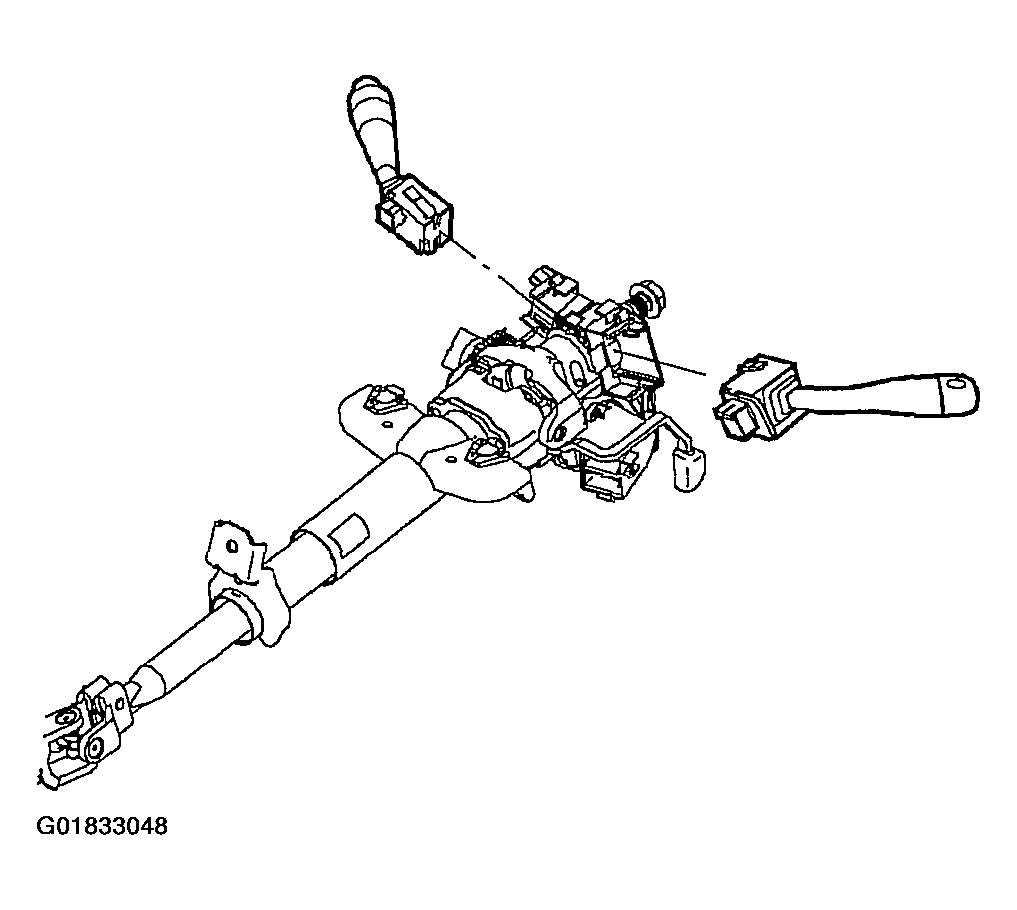

    3. Fig 1: Installing Turn Signal/Headlamp Lever, Windshield Washer Lever, & Passlock Sensor Connector
    G01833048Courtesy of GENERAL MOTORS CORP.
  3. Install park lock solenoid. Tighten park lock solenoid screws to 1.5 N.m (14 in-lbs).

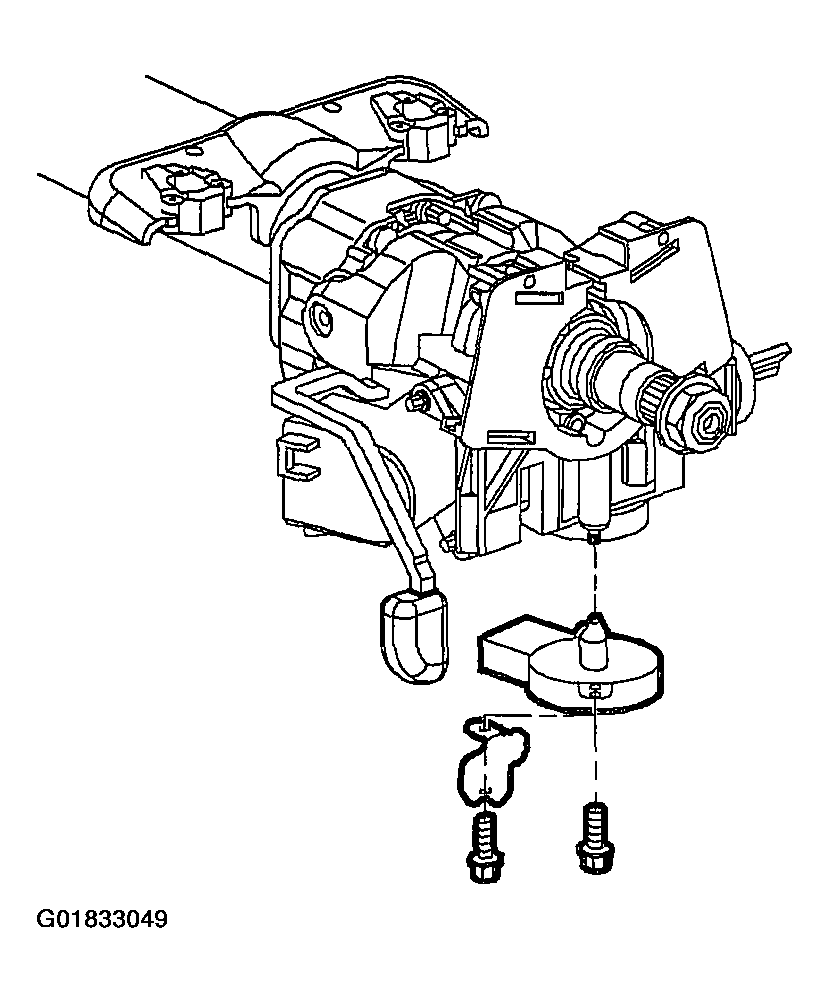

    4. Fig 2: Installing Park Lock Solenoid
    G01833049Courtesy of GENERAL MOTORS CORP.
  4. Install ignition switch and reconnect ignition switch connector. Tighten ignition switch fasteners to 1.5 N.m (13 in-lbs).

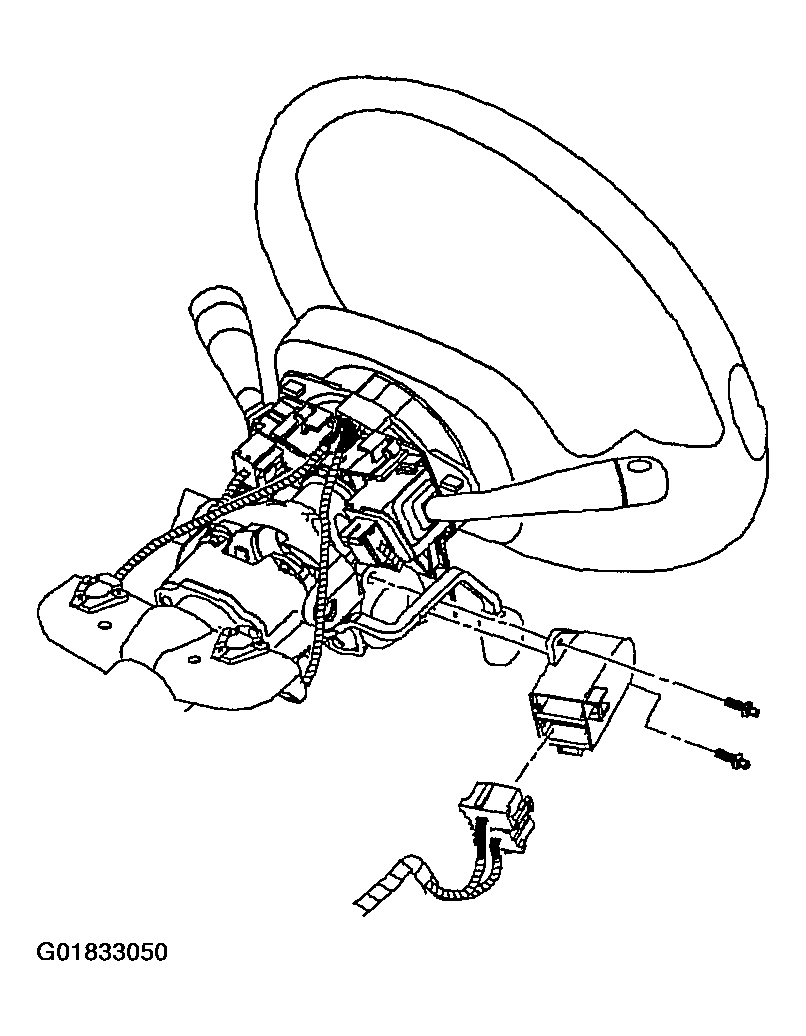

    5. Fig 3: Installing Ignition Switch
    G01833050Courtesy of GENERAL MOTORS CORP.
  5. Install shroud fasteners and steering column lower shroud panel. Tighten steering wheel shroud fasteners to 3 N.m (27 in-lbs).

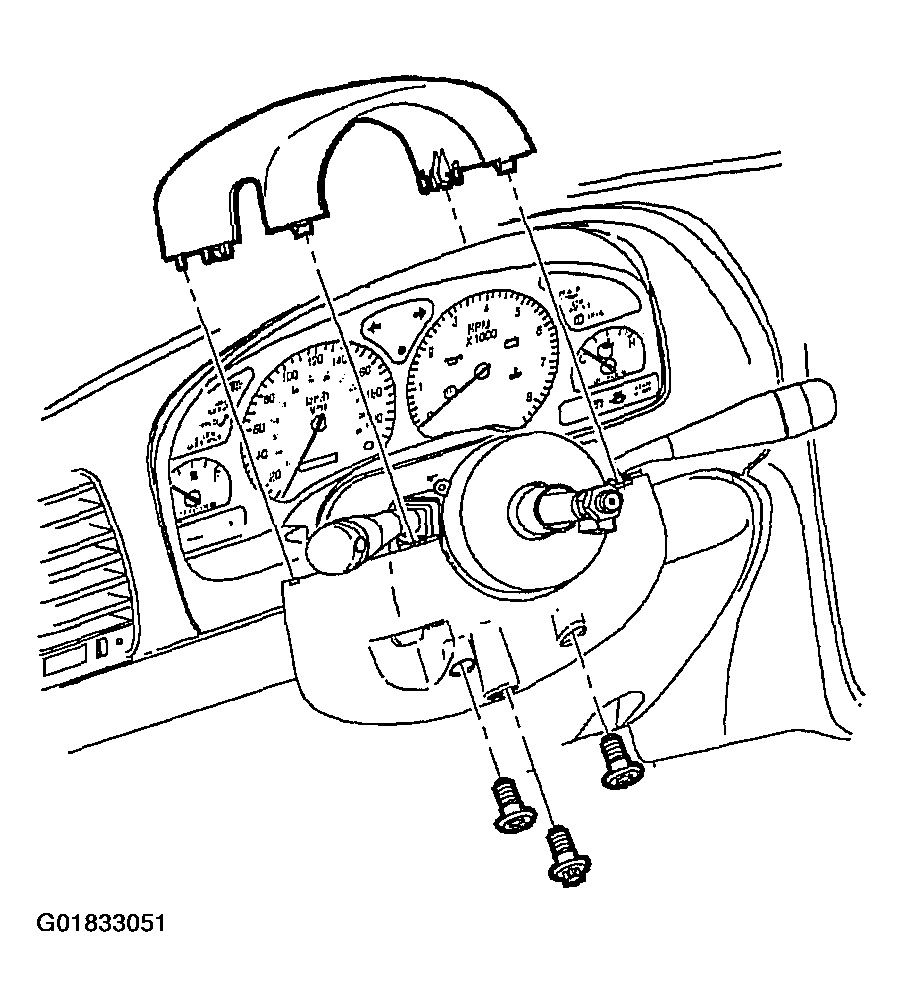

    Fig 4: Installing Shroud Fasteners & Steering Column Lower Shroud Panel
    G01833051Courtesy of GENERAL MOTORS CORP.
    NOTE: Actuator blade within ignition module housing must be in the RUN position to install lock cylinder assembly. If rotated, replace it to the RUN position using needle nose pliers.
  6. Insert key into ignition lock cylinder and install into ignition module.

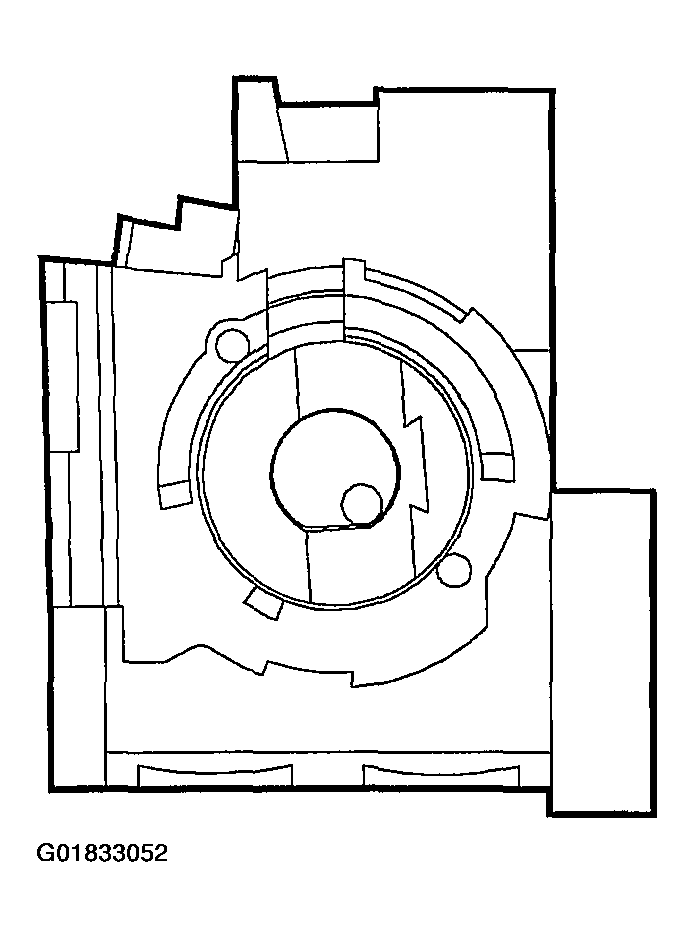

    7. Fig 5: Inserting Key Into Ignition Lock Cylinder
    G01833052Courtesy of GENERAL MOTORS CORP.
  7. Install steering column upper shroud panel.
  8. Install lock cylinder bezel.

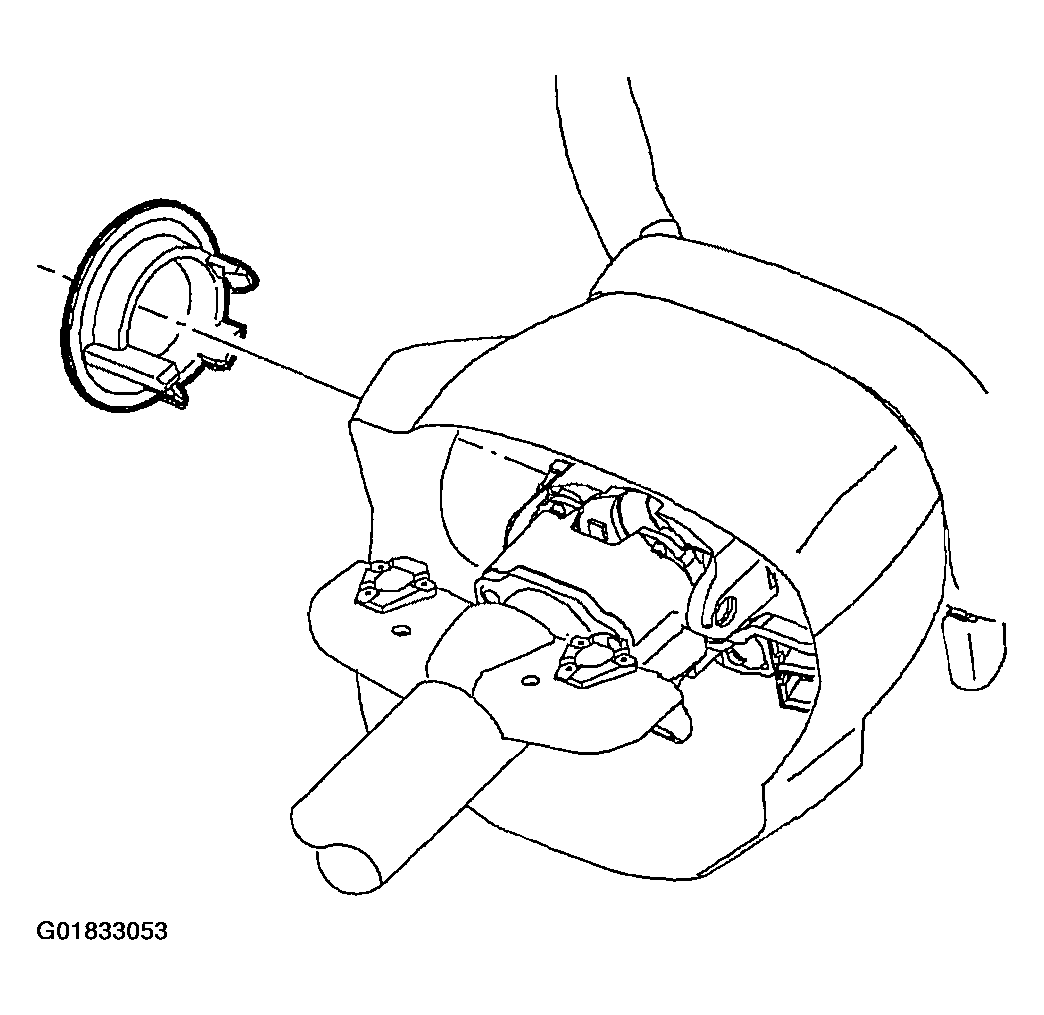

    9. Fig 6: Install lock cylinder bezel
    G01833053Courtesy of GENERAL MOTORS CORP.
