DTC B2965: Key-In-Ignition Circuit Malfunction: Notes

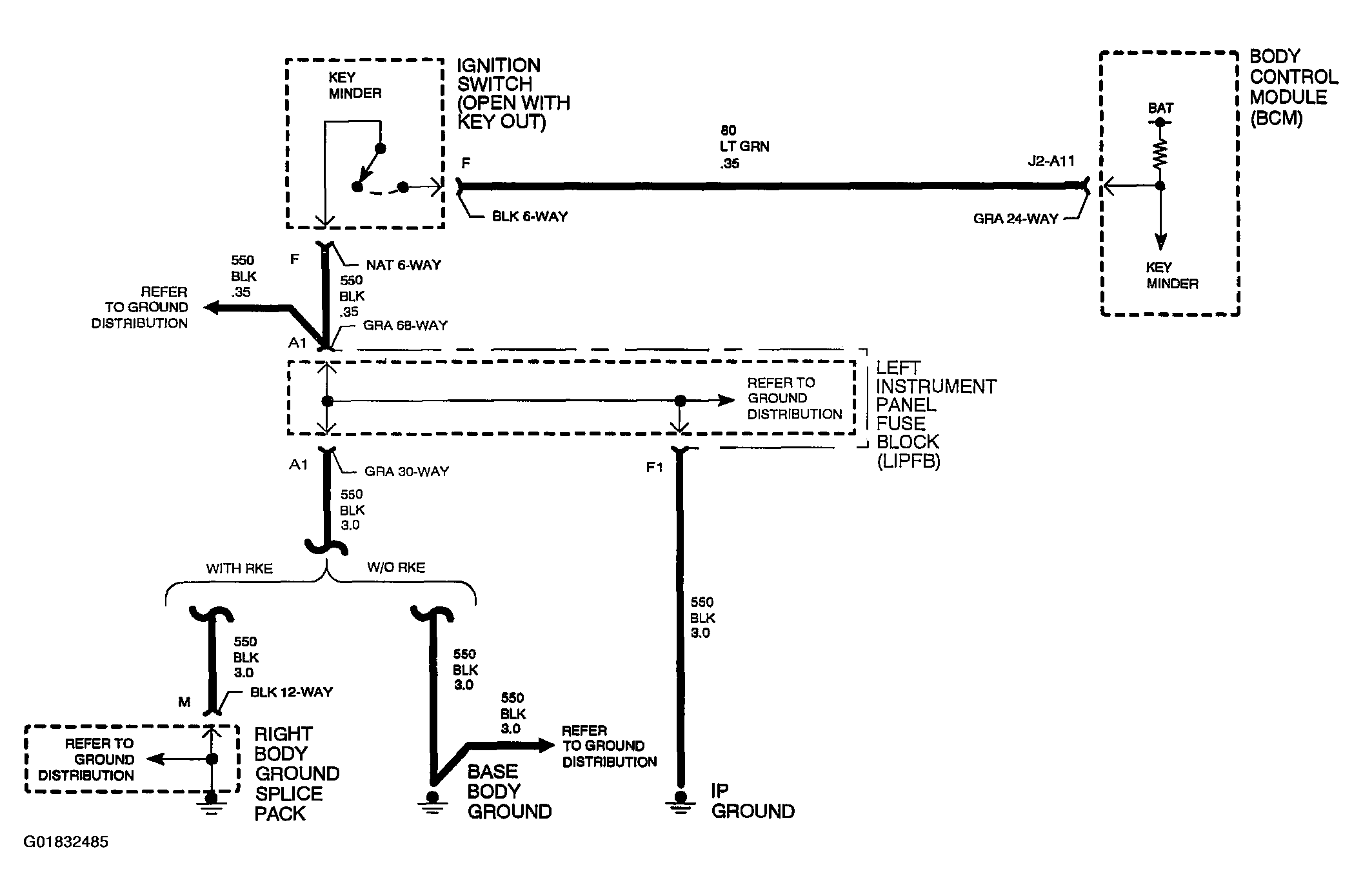

Fig 1: B2965 - Key-In-Ignition Circuit Malfunction Schematic
G01832485Courtesy of GENERAL MOTORS CORP.
