Scan Tool Displays

The following table lists the parameters displayed by the Scan tool. The parameters are displayed by ABS/TCS data, switch inputs, exterior lamps, interior lamps, door locks, wiper/washer and security data groups.

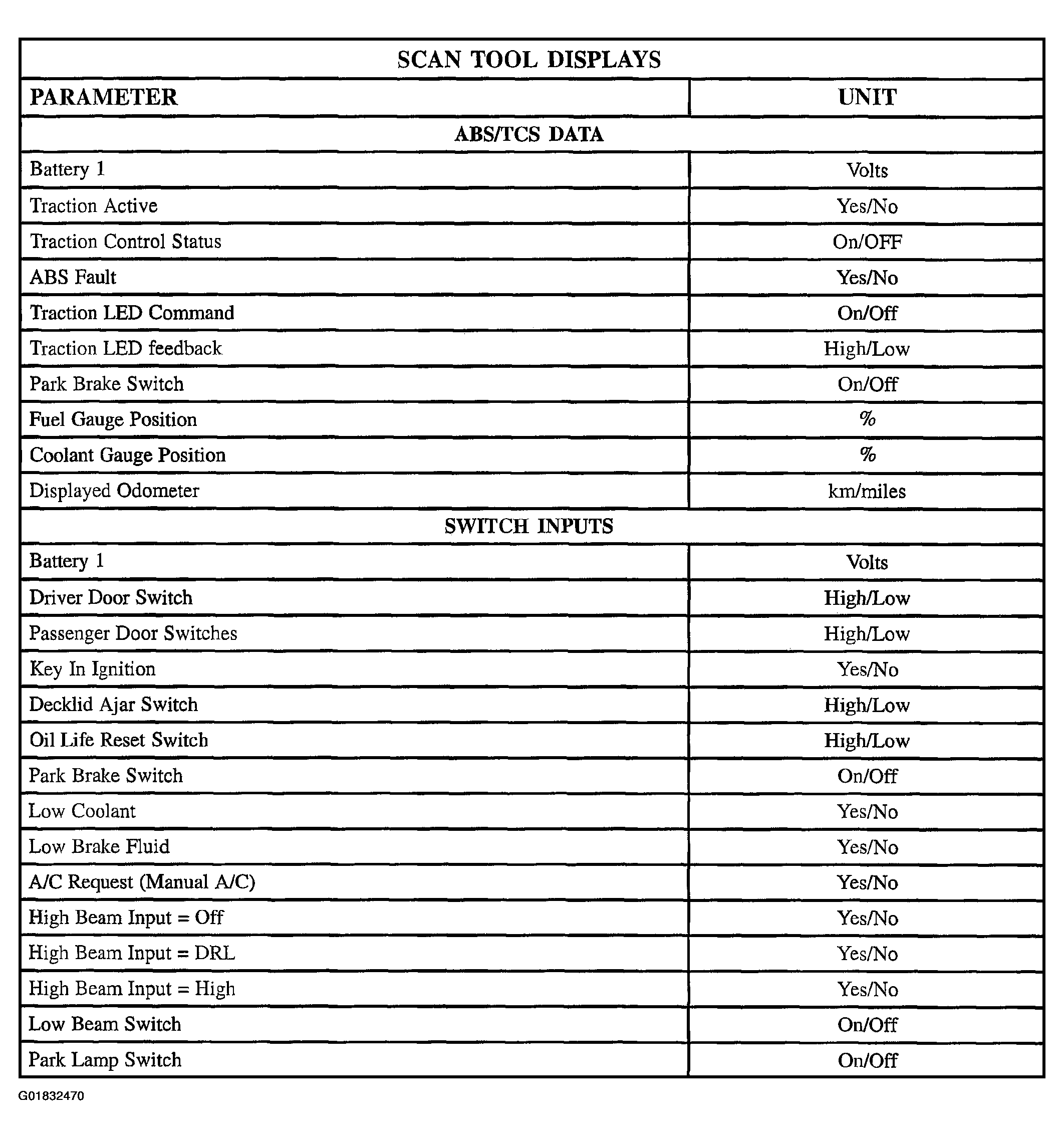

Fig 1: Scan Tool Displays ABS/TCS Data & Switch Inputs

Courtesy of GENERAL MOTORS CORP.

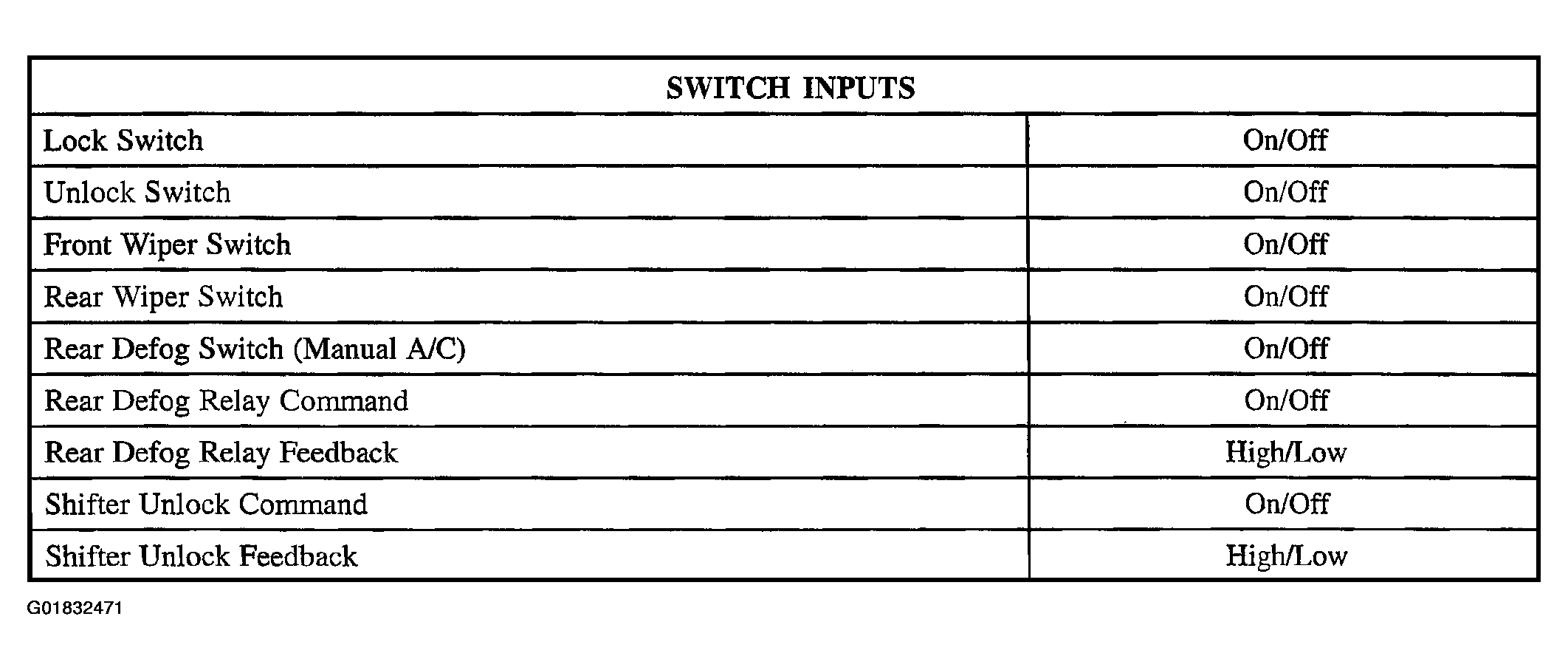

Fig 2: Scan Tool Displays Switch Inputs

Courtesy of GENERAL MOTORS CORP.

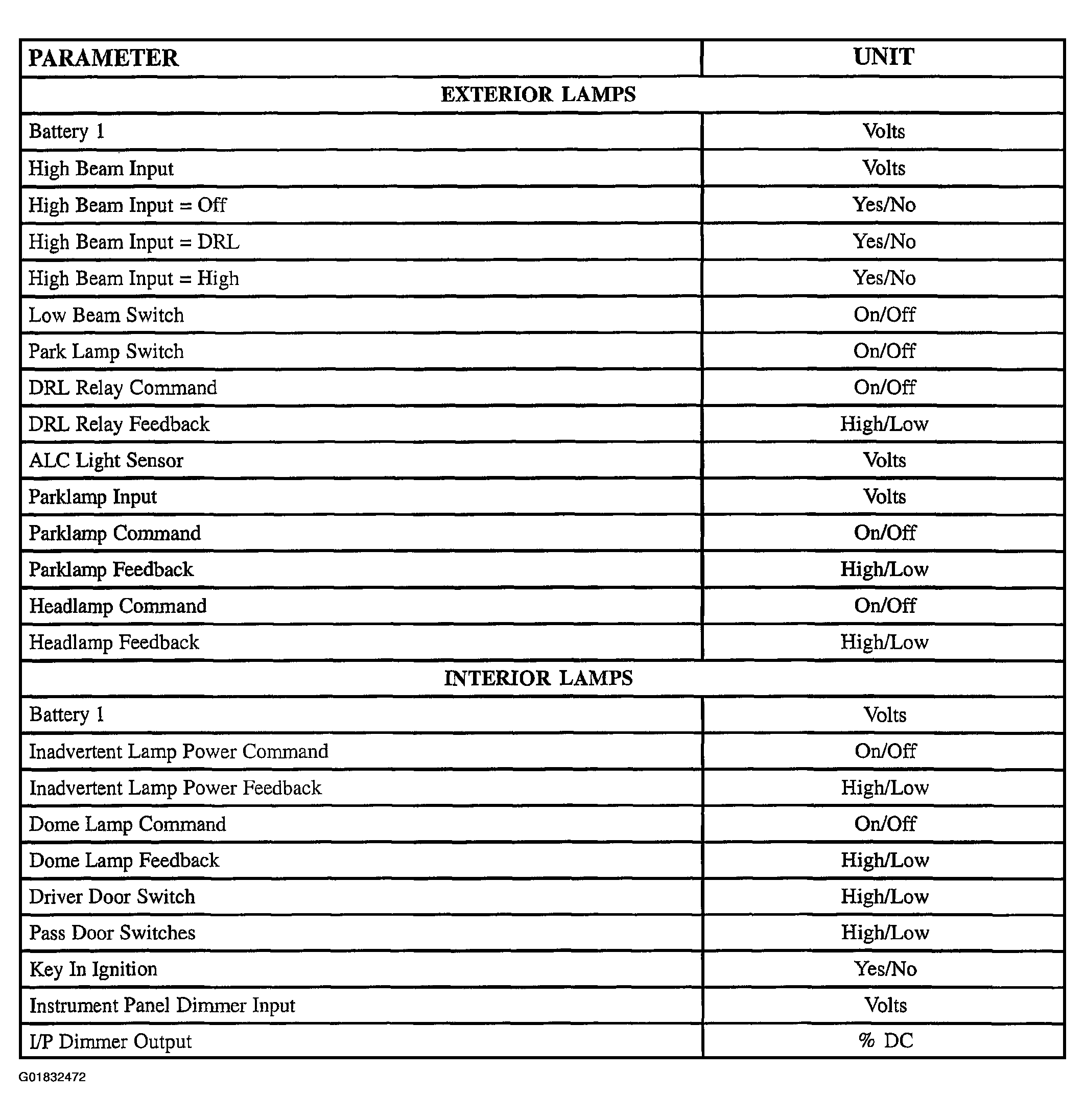

Fig 3: Scan Tool Displays Exterior Lamps & Interior Lamps

Courtesy of GENERAL MOTORS CORP.

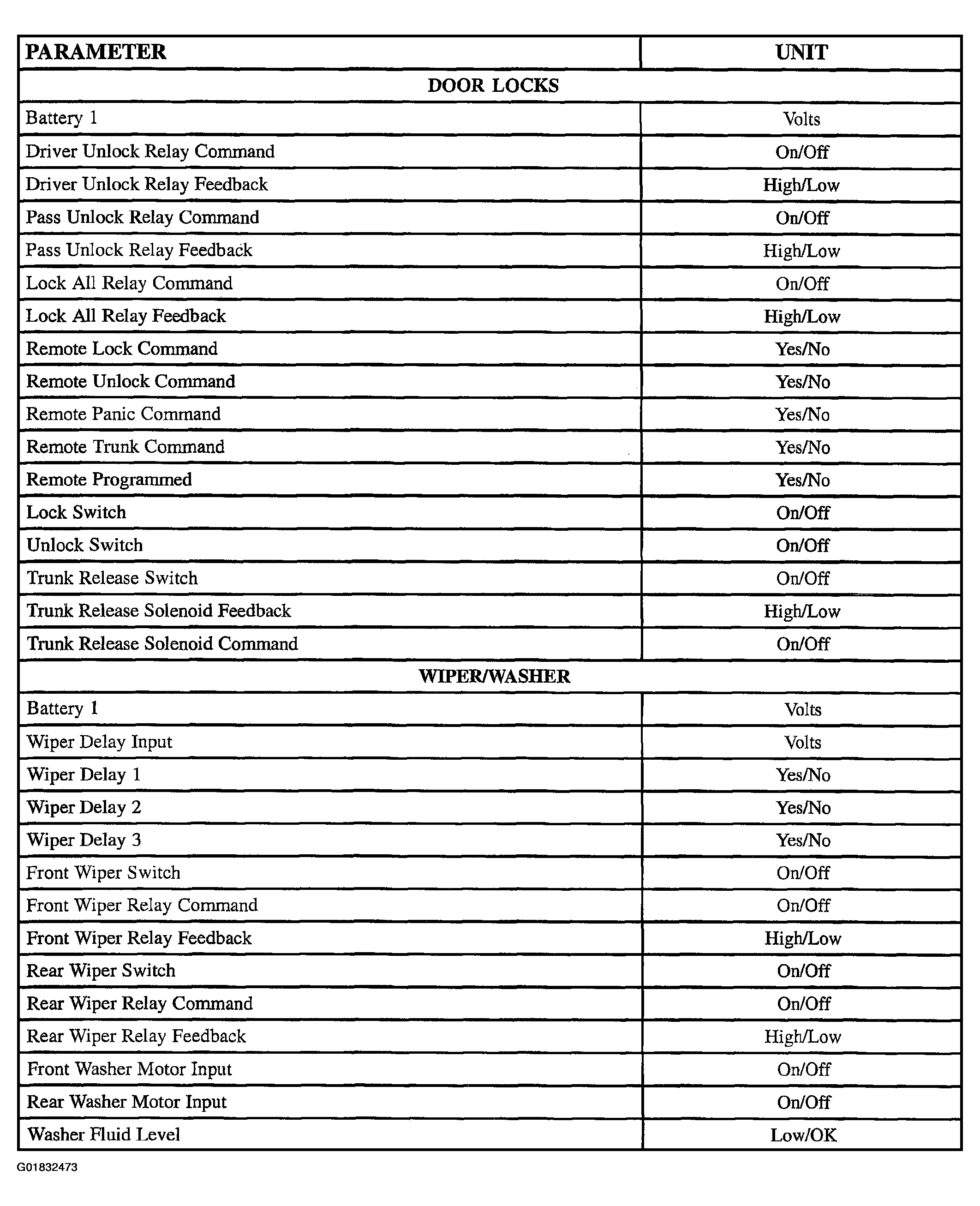

Fig 4: Scan Tool Displays Door Locks & Wiper/Washer

Courtesy of GENERAL MOTORS CORP.

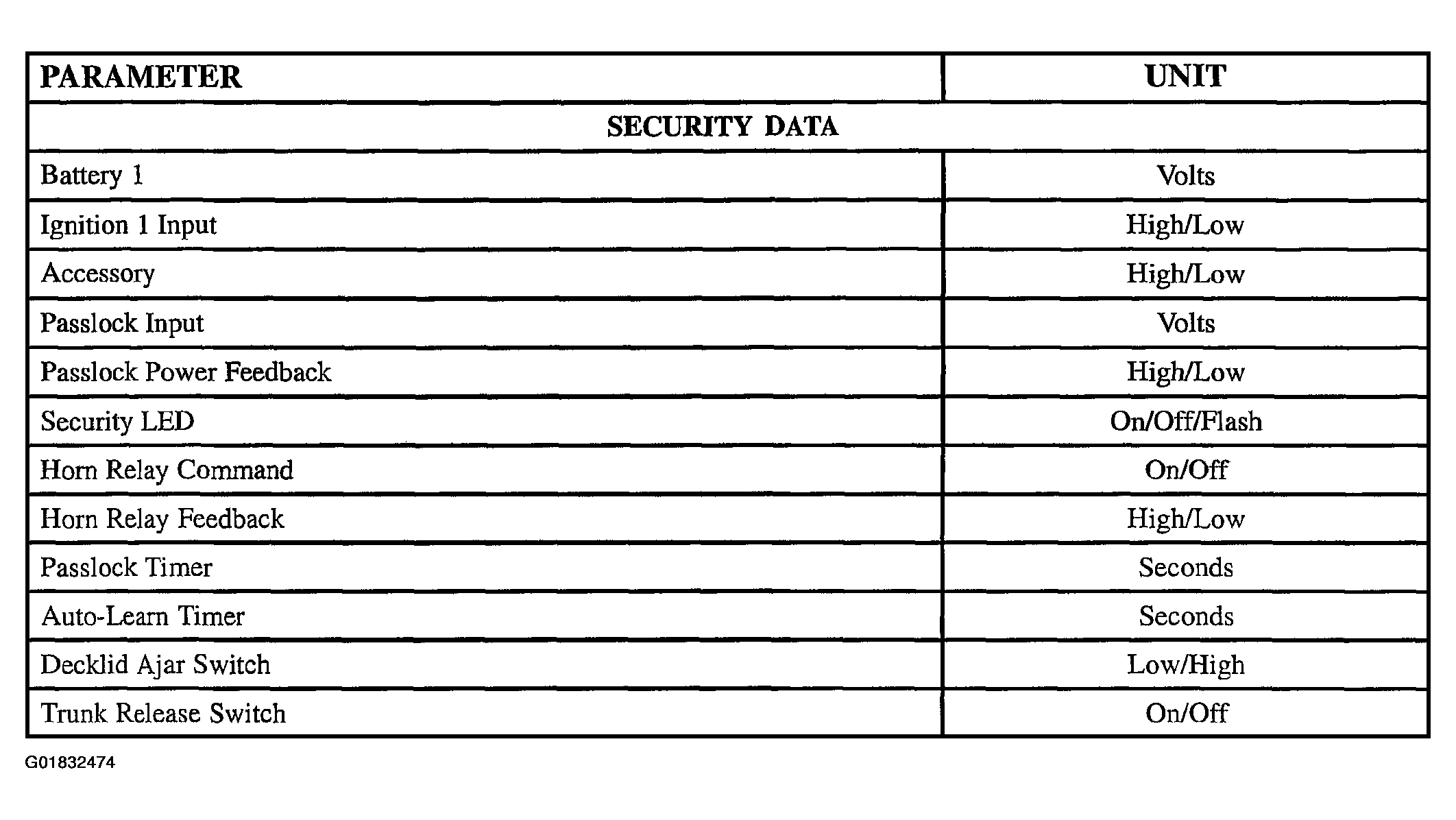

Fig 5: Scan Tool Displays Security Data

Courtesy of GENERAL MOTORS CORP.
