Data Link Communication Schematics: L81

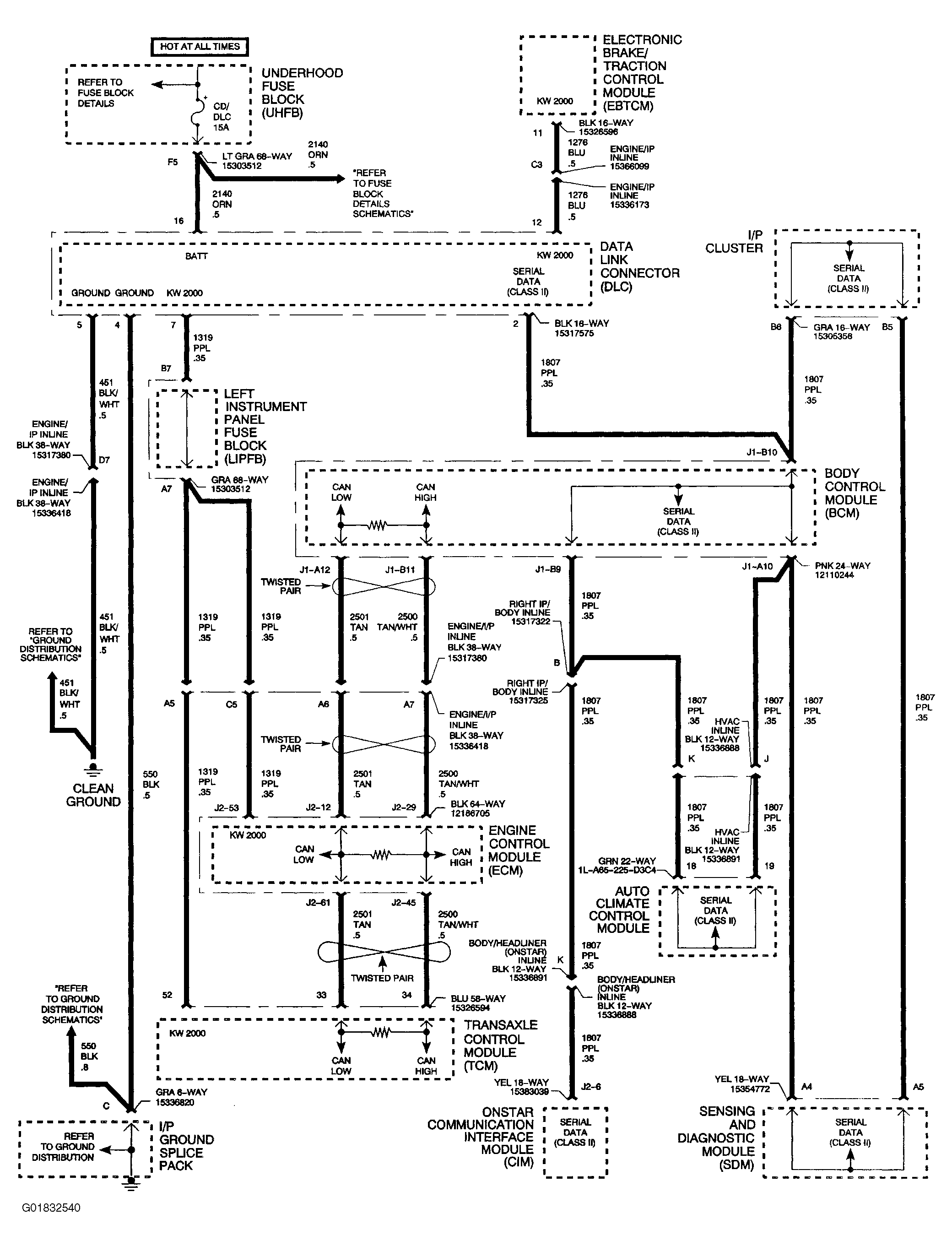

Fig 1: Data Link Communication Schematics
Courtesy of GENERAL MOTORS CORP.
