Serial Data Link Connector Face Views

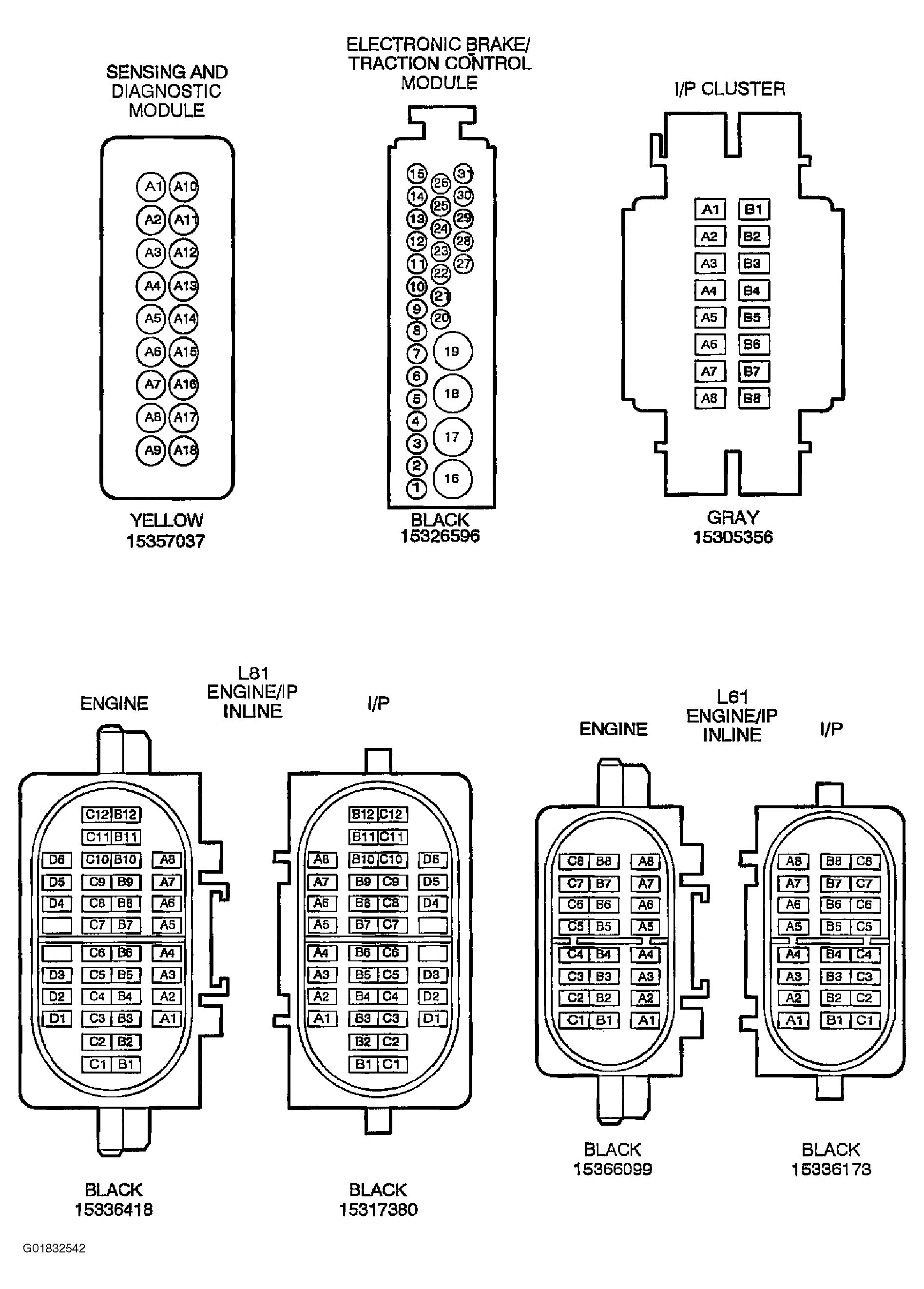

Fig 1: Serial Data Link Connector Face Views (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

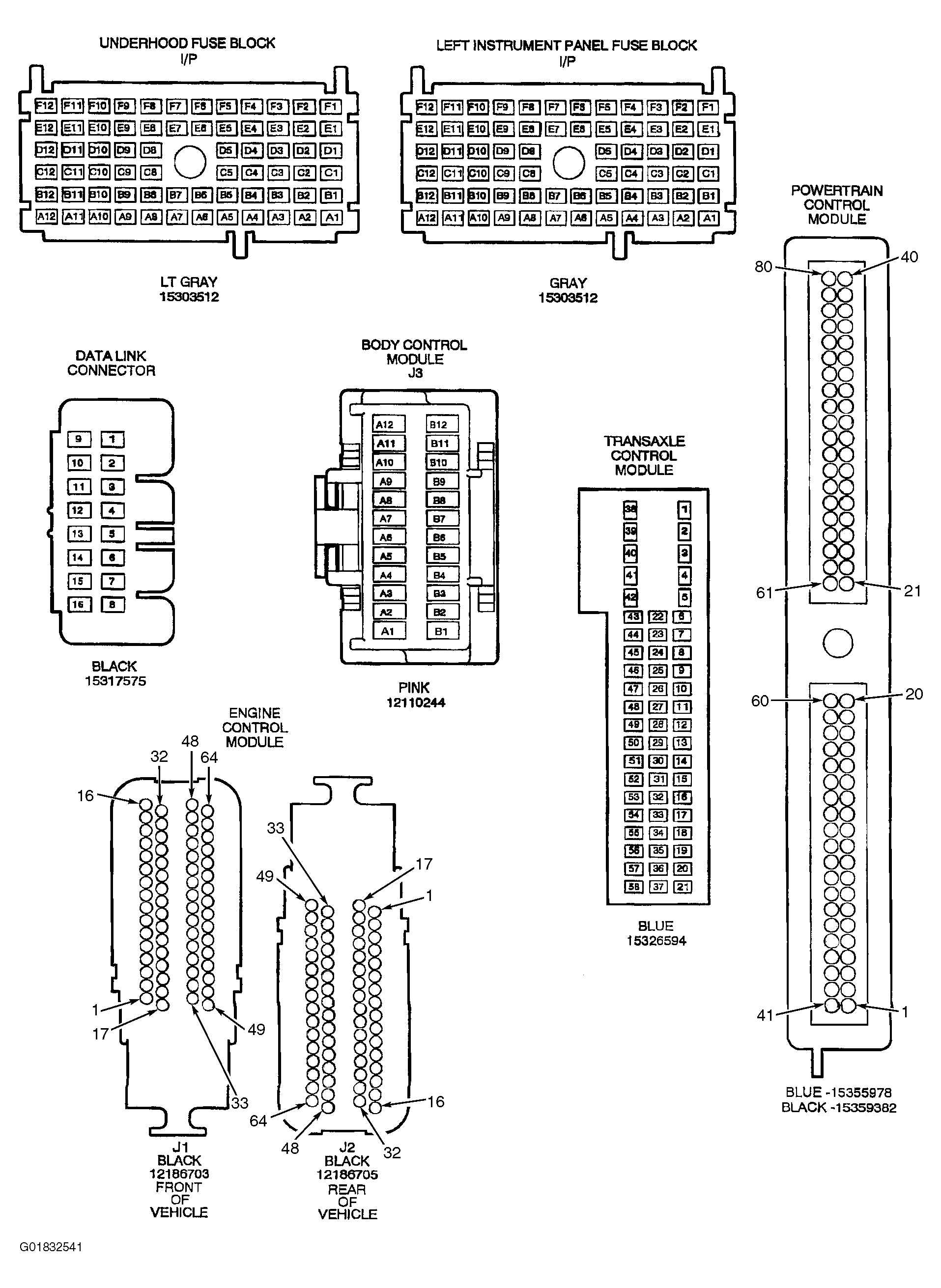

Fig 2: Serial Data Link Connector Face Views (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
