Chart 3 - Transmitters Will Not Synchronize Or Program

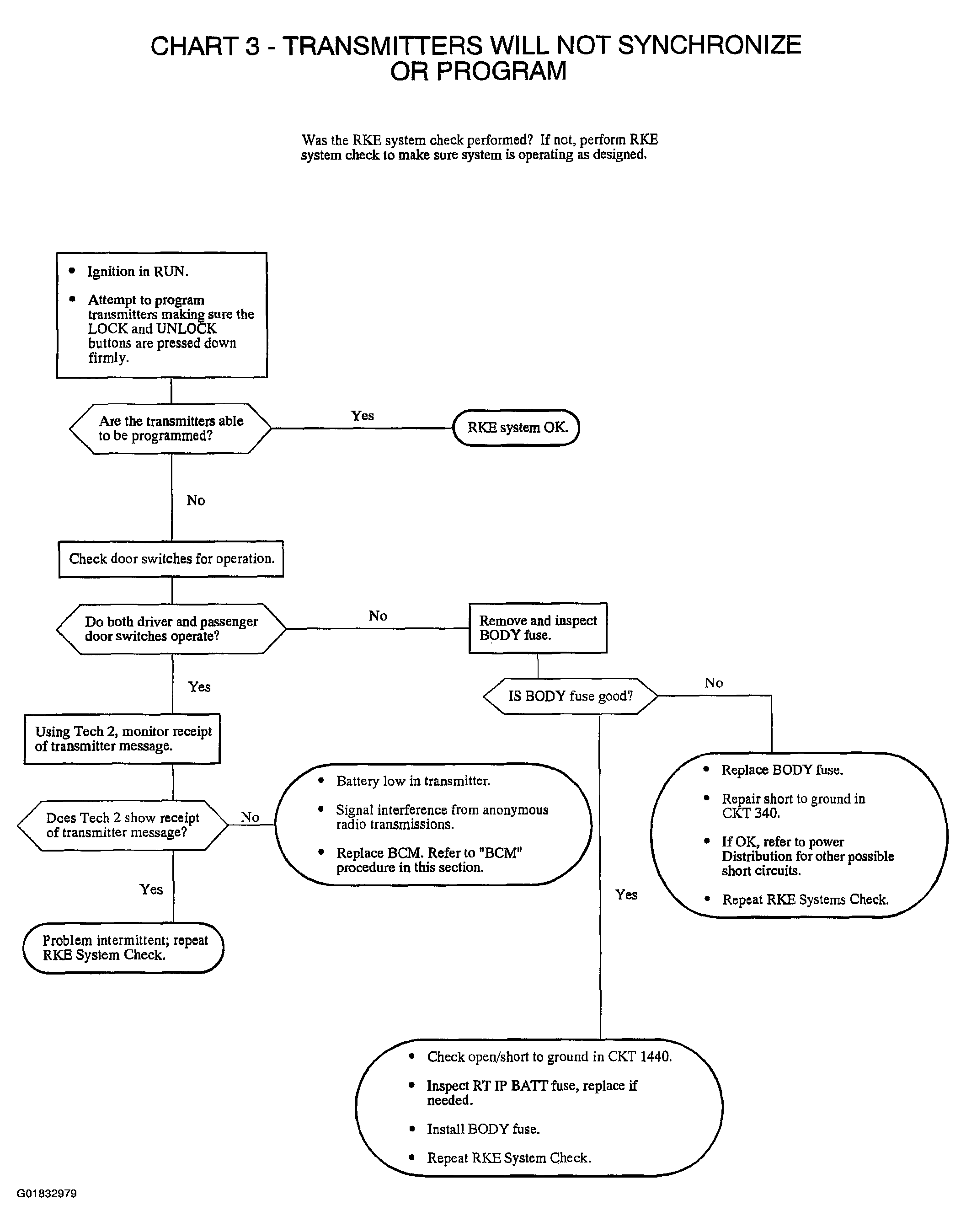

Fig 1: Chart 3 - Transmitters Will Not Synchronize Or Program
G01832979Courtesy of GENERAL MOTORS CORP.
