Chart 10 - Key Cannot Be Removed From Ignition Module

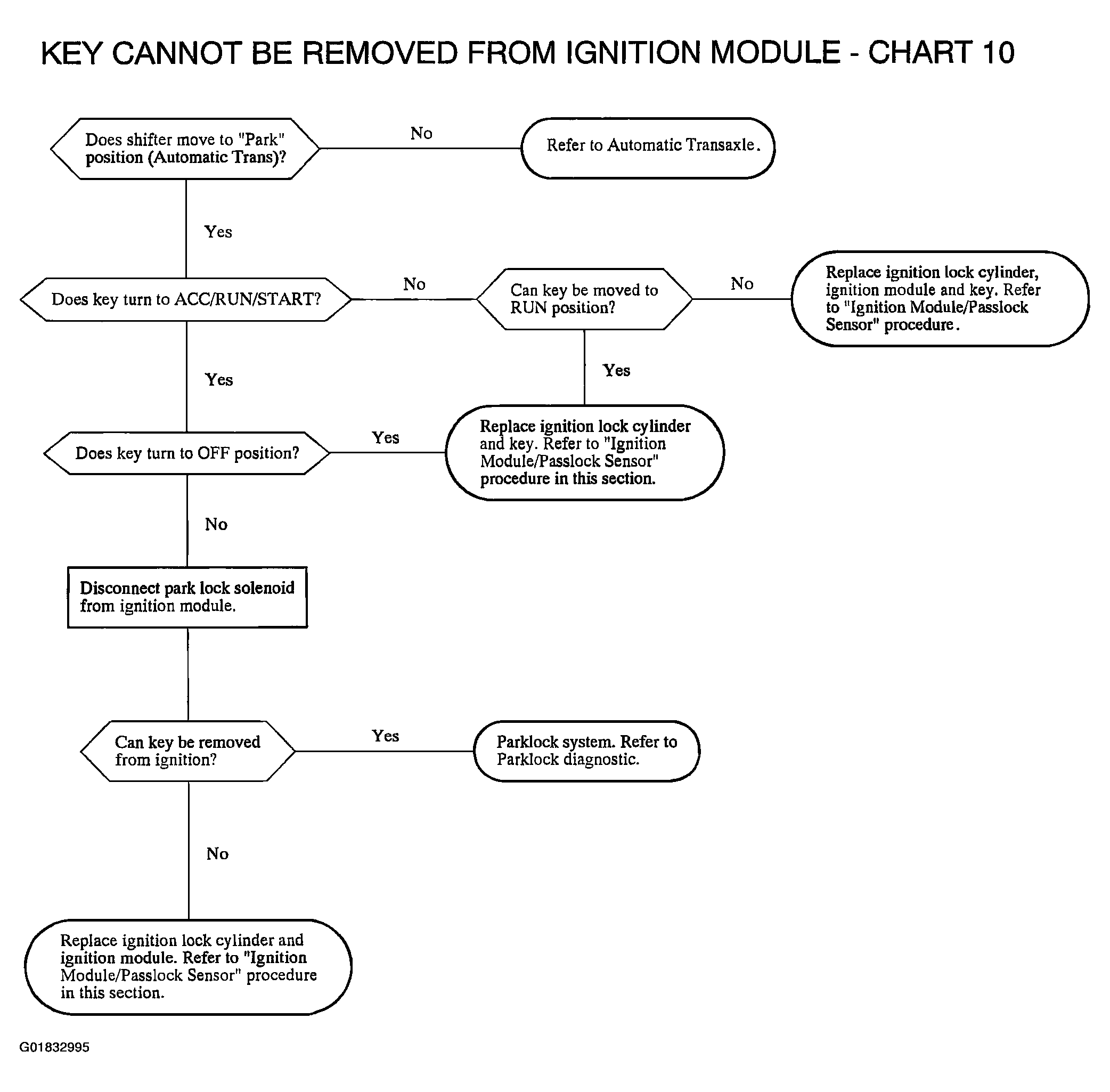

Fig 1: Chart 10 - Key Cannot Be Removed From Ignition Module
G01832995Courtesy of GENERAL MOTORS CORP.
