Stationary Windows Component Views

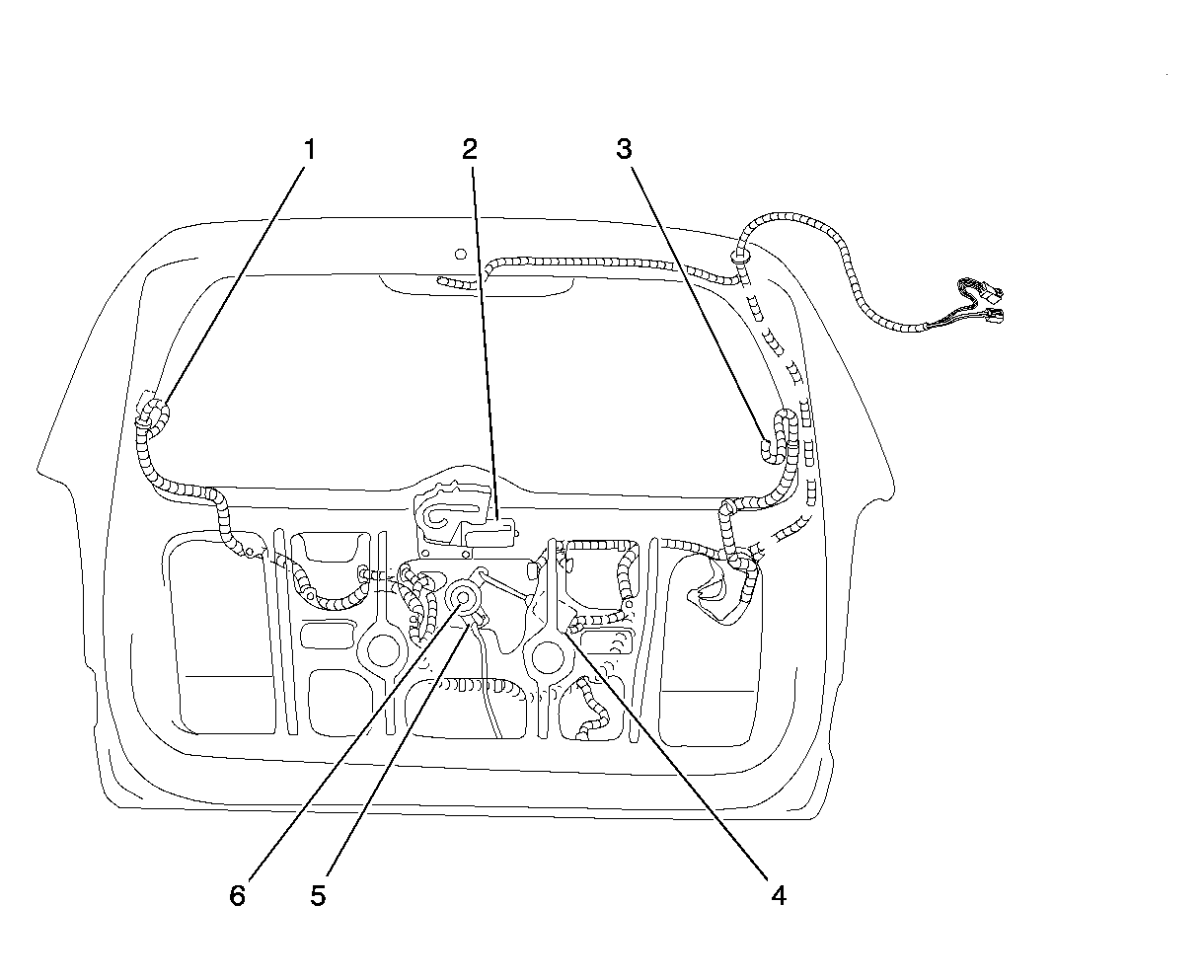

Fig 1: Liftgate Component View- Wagon

GM1255442

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid C2
2	Wiper Motor- Rear
3	Rear Window Defogger Grid C1
4	Liftgate Release Actuator
5	Liftgate Ajar Switch
6	Liftgate Key Cylinder

Fig 2: Inside Rearview Mirror Component View (ISRM)

GM897903

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRM)
