Stationary Windows Connector End Views

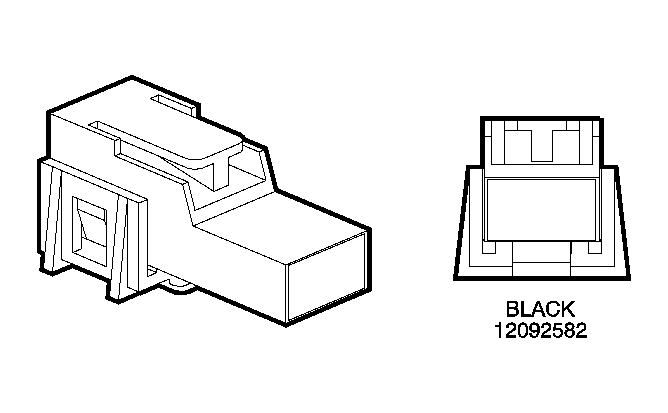

Rear Defogger Grid C1

GM885048Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092582
  • 1 Way 250 Series (BK)
Pin Wire Color Circuit Number Function
A PU 293 Rear Defog Element Supply Voltage
Rear Defogger Grid C2

GM885048Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092582
  • 1 Way 250 Series (BK)
Pin Wire Color Circuit Number Function
A BK 650 Ground
