Installation Procedure

  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows (Windshield)  or Urethane Adhesive Installation of Stationary Windows (Back Window) .

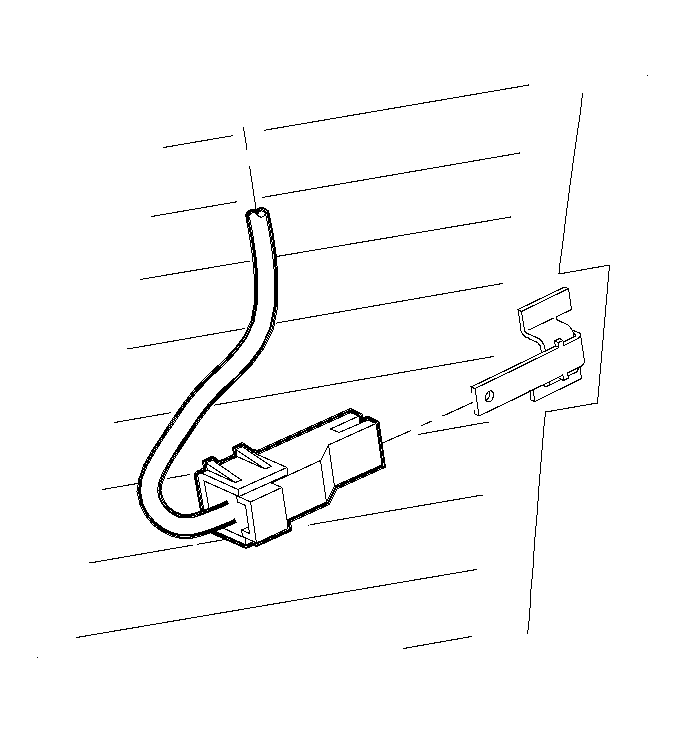

    2. Fig 1: Connecting Rear Window Defogger Bus Bar Electrical Connectors
    GM893690Courtesy of GENERAL MOTORS CORP.
  2. Connect the rear window defogger electrical connectors to the bus bars.
  3. Install the rear wiper motor. Refer to Wiper Motor Replacement - Rear in Wiper/Washer Systems.
  4. Install the lift gate trim panel. Refer to Trim Panel Replacement - Liftgate in Body Rear End.
  5. Install the high mounted stop lamp. Refer to High Mounted Stop Lamp Replacement in Lighting Systems.
