Design Specifications

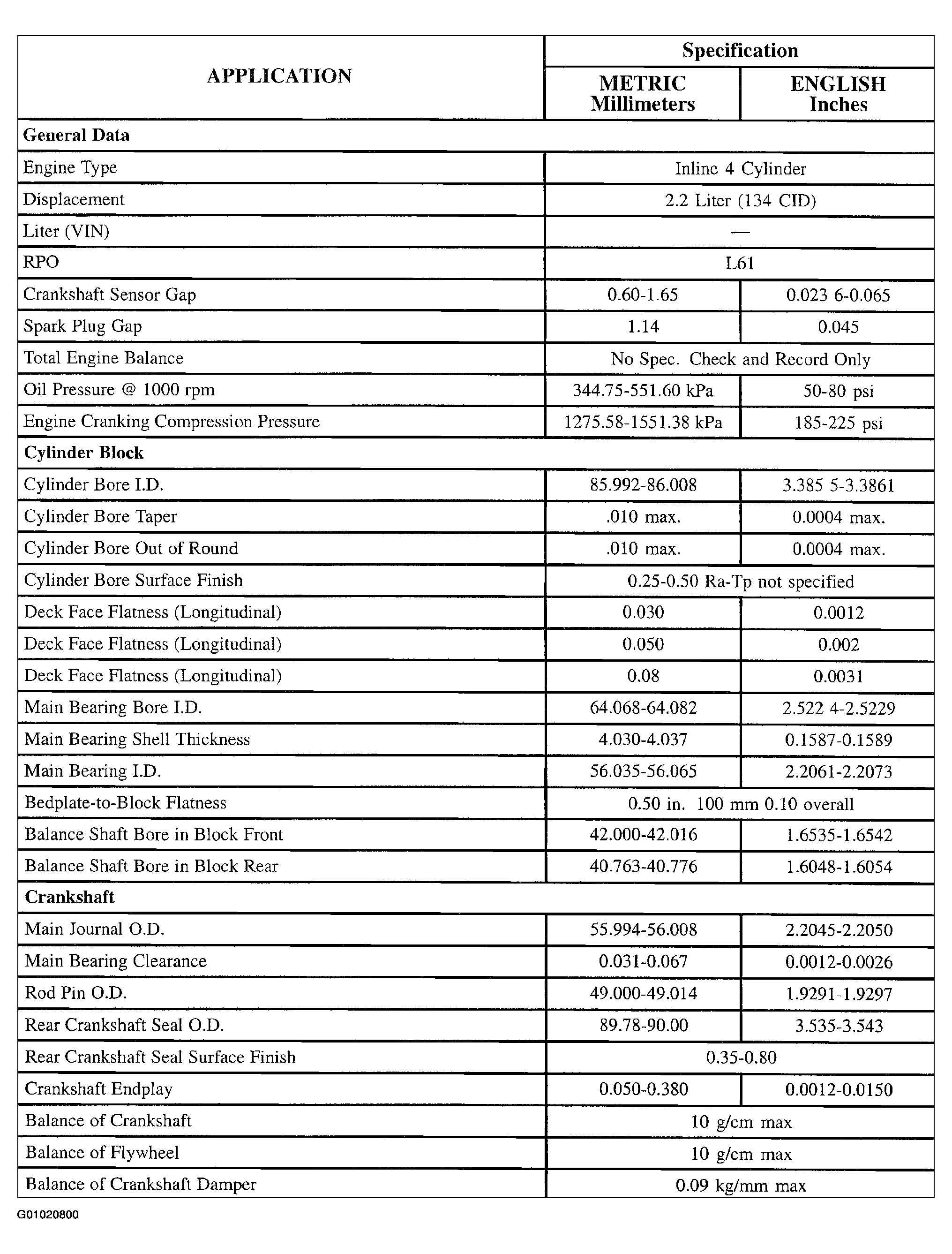

Fig 1: Design Specifications (1 Of 5)
G01020800Courtesy of GENERAL MOTORS CORP.

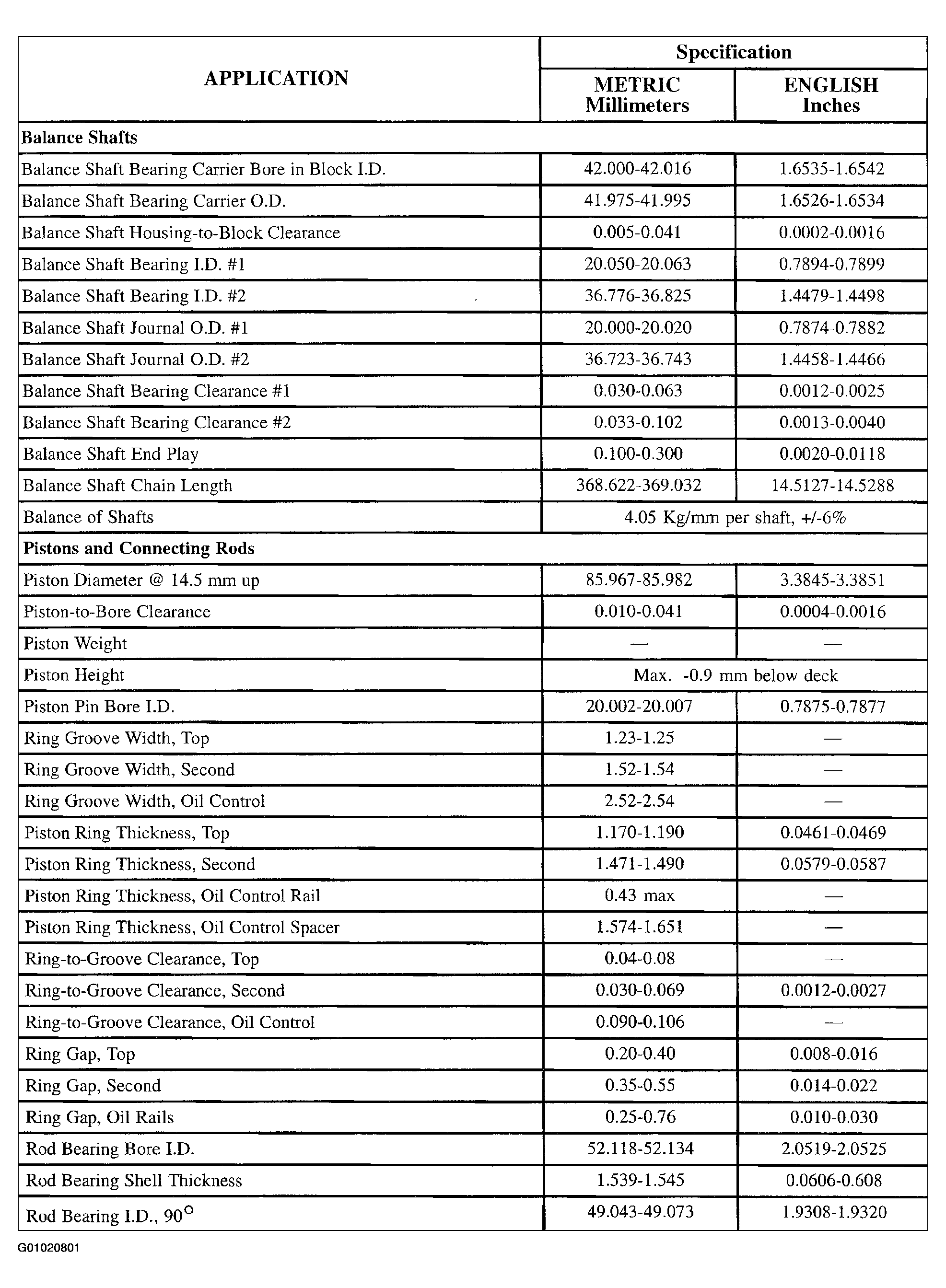

Fig 2: Design Specifications (2 Of 5)
G01020801Courtesy of GENERAL MOTORS CORP.

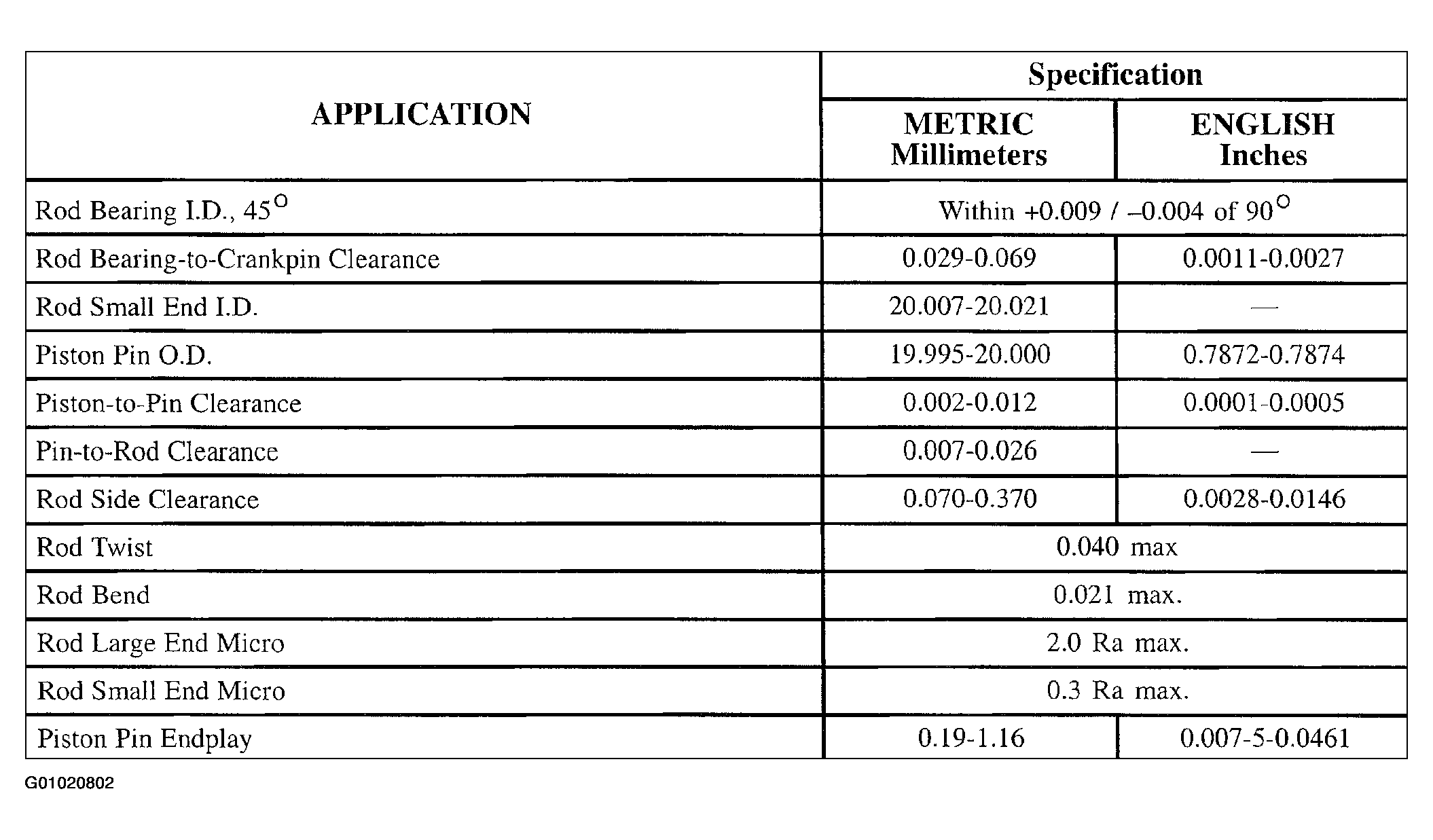

Fig 3: Design Specifications (3 Of 5)
G01020802Courtesy of GENERAL MOTORS CORP.

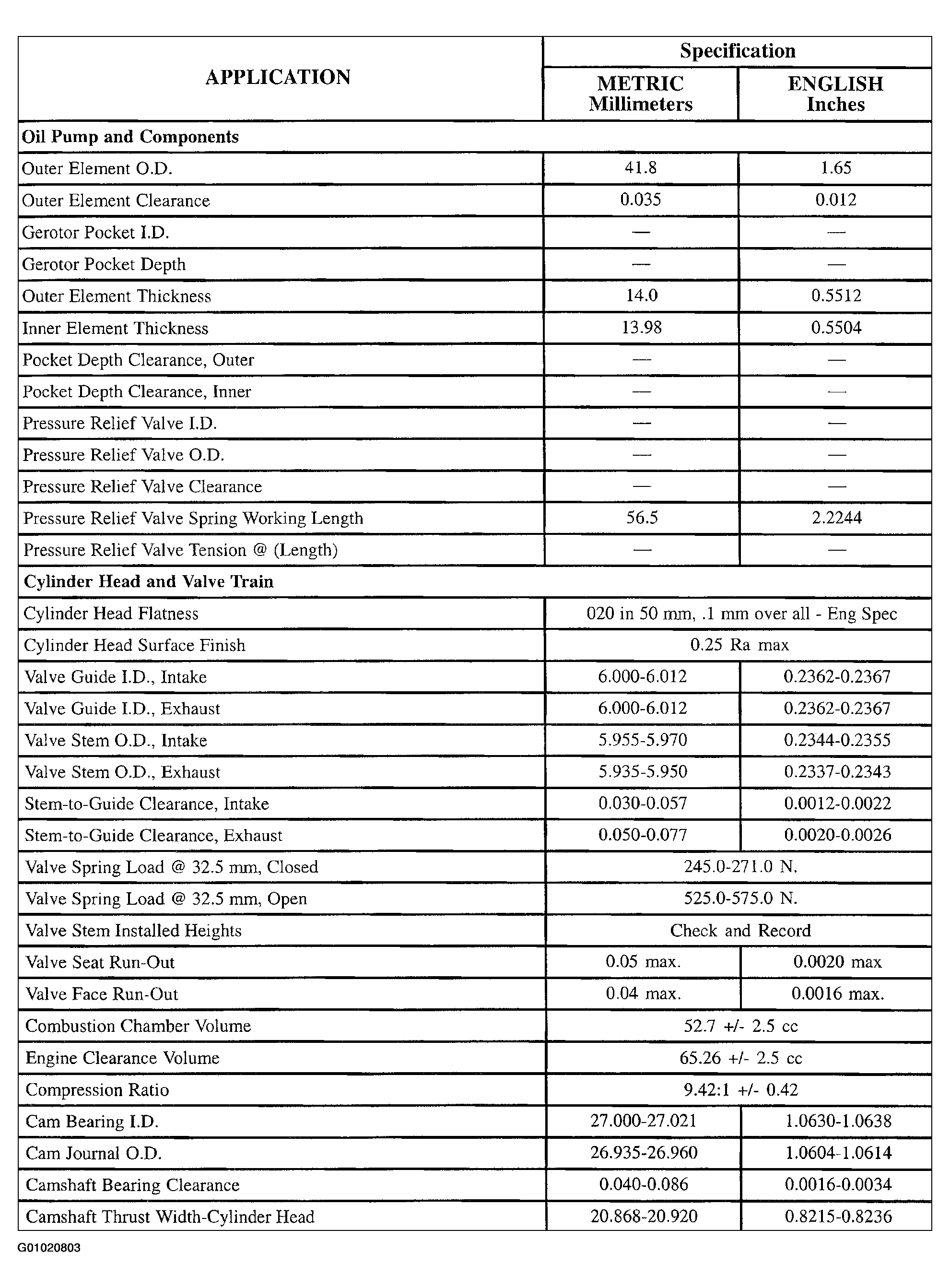

Fig 4: Design Specifications (4 Of 5)
G01020803Courtesy of GENERAL MOTORS CORP.

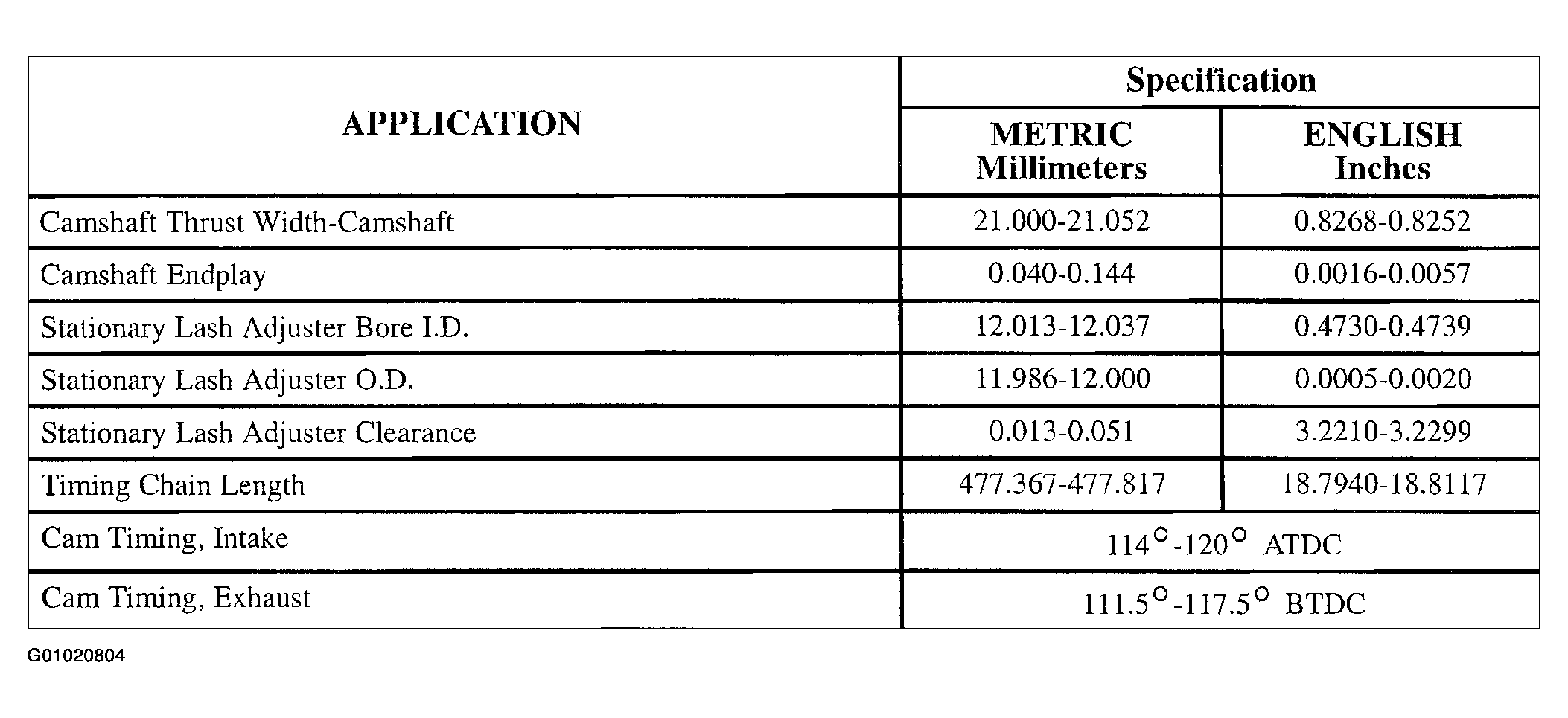

Fig 5: Design Specifications (5 Of 5)
G01020804Courtesy of GENERAL MOTORS CORP.
