Engine Block (Front View)

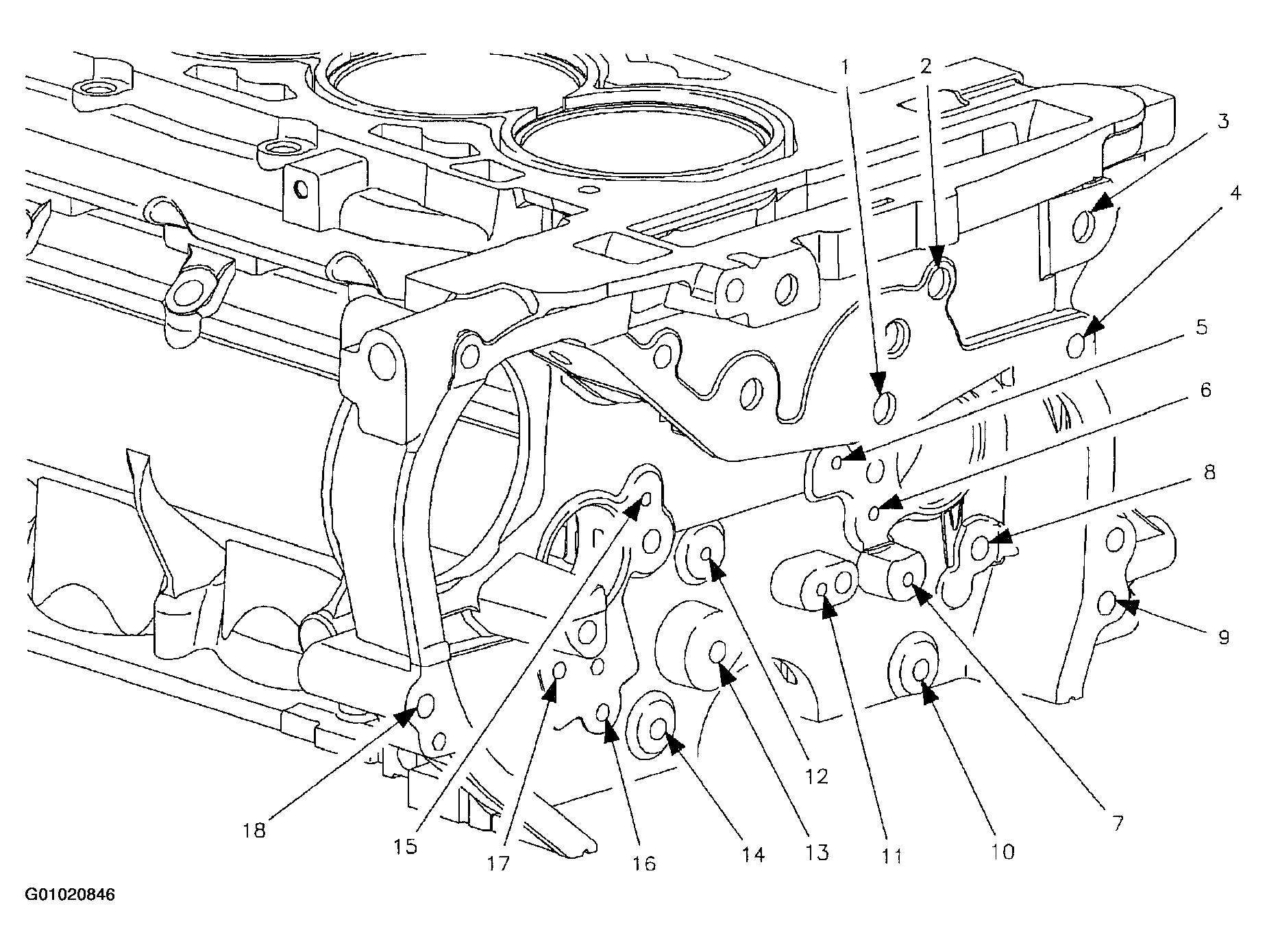

Fig 1: Engine Block (Front View)
G01020846Courtesy of GENERAL MOTORS CORP.

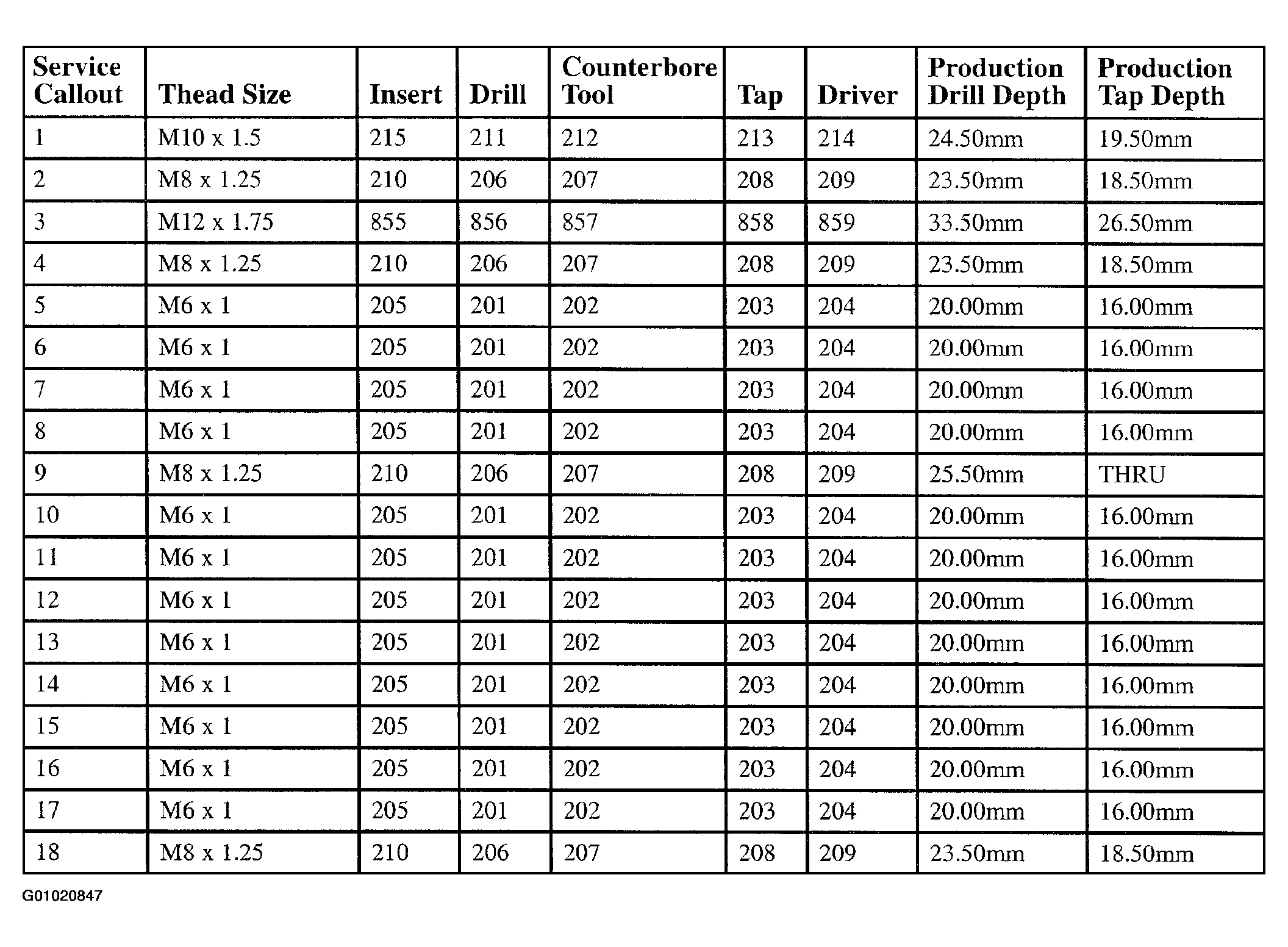

Fig 2: Engine Block (Front View) Specifications (1 Of 2)
G01020847Courtesy of GENERAL MOTORS CORP.

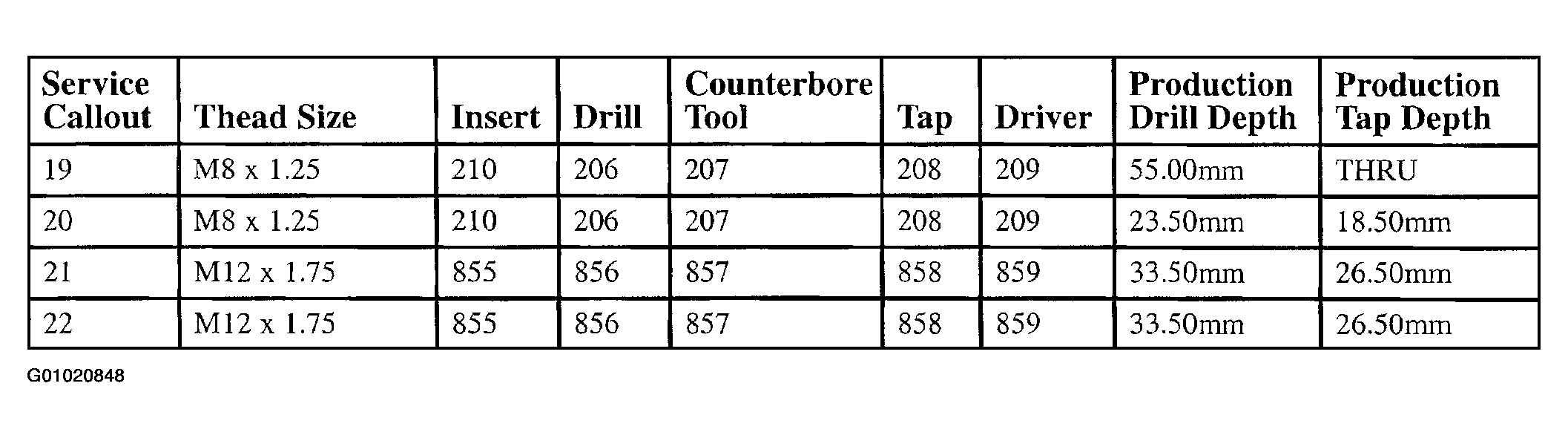

Fig 3: Engine Block (Front View) Specifications (2 Of 2)
G01020848Courtesy of GENERAL MOTORS CORP.
