Lighting Systems Component Views
WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Daytime Running Lamp (DRL) Resistor |
| 2 | G103 |
| Callout | Component Name |
|---|---|
| 1 | Headlamp/Turn Signal Switch |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Vanity Lamps |
| 4 | Courtesy/ Reading Lamps |
| 5 | Dome Lamp |
| 6 | Rear Compartment Lamp |
| 7 | Tail Lamp Assembly- Right |
| 8 | License Lamp |
| 9 | Tail Lamp Assembly- Left |
| 10 | Radio |
| 11 | Courtesy Lamp- LR Door (RR Similar) |
| 12 | Electronic PRNDL Module |
| 13 | Cigar Lighter |
| 14 | Courtesy Lamp- Driver Door (Front Passenger Similar) |
| 15 | Dimmer/ Rear Compartment Lid Release Switch |
| Callout | Component Name |
|---|---|
| 1 | Radio |
| 2 | Right Heated Seat/Traction Switch |
| 3 | Hazard Switch |
| 4 | Left Heated Seat/Fog Lamp Switch |
| 5 | Passlock Sensor |
| 6 | Ambient Light Sensor |
| 7 | Ignition Lock Cylinder Solenoid |
| 8 | Windshield Wiper/Washer Switch |
| 9 | Ignition Switch C1 |
| 10 | Headlamp/Turn Signal Switch |
| 11 | Ignition Switch C2 |
| 12 | Inflatable Restraint Steering Wheel Module Coil C4 |
| 13 | Instrument Panel Cluster (IPC) |
| 14 | Dimmer/Rear Compartment Lid Release Switch |
| 15 | Wheel Speed Conditioner Module |
| 16 | Cruise/Brake Switch |
| 17 | Fuse Block - I/P - Left |
| 18 | C207 |
| 19 | Data Link Connector (DLC) |
| 20 | C215 |
| 21 | Accelerator Pedal Position (APP) Sensor |
| 22 | Cruise Control Module |
| 23 | C215 |
| 24 | C205 |
| 25 | I/P Compartment Lamp |
| 26 | Body Control Module (BCM) |
| 27 | C204 (w/o UE1) |
| 28 | C204 (w/ UE1) |
| 29 | Fuse Block - I/P - Right |
| 30 | C200 Body Harness Side |
| 31 | C200 Headliner Harness Side |
| 32 | Inflatable Restraint I/P Module |
| Callout | Component Name |
|---|---|
| 1 | Cruise Set/Resume Switch |
| 2 | Cruise On/Off Switch |
| 3 | Stop Lamp Switch |
| 4 | Cruise Brake Switch |
| 5 | Cruise Clutch Switch (M/T) |
| 6 | Cruise Control Module (CCM) |
| Callout | Component Name |
|---|---|
| 1 | Door Jamb Switch - LR - RR Similar |
| 2 | Inflatable Restraint Side Impact Sensor (SIS) - Left Connector - Right Similar) |
| 3 | C800 - C700 Similar |
| Callout | Component Name |
|---|---|
| 1 | Tail Lamp Assembly-Left (Right Similar) |
| 2 | Park/Turn Signal Lamp-LF |
| 3 | Left Headlamp Assembly |
| 4 | Fog Lamp-Left |
| 5 | Fog Lamp-Right |
| 6 | Horn (Behind Fascia) |
| 7 | Right Headlamp Assembly |
| Callout | Component Name |
|---|---|

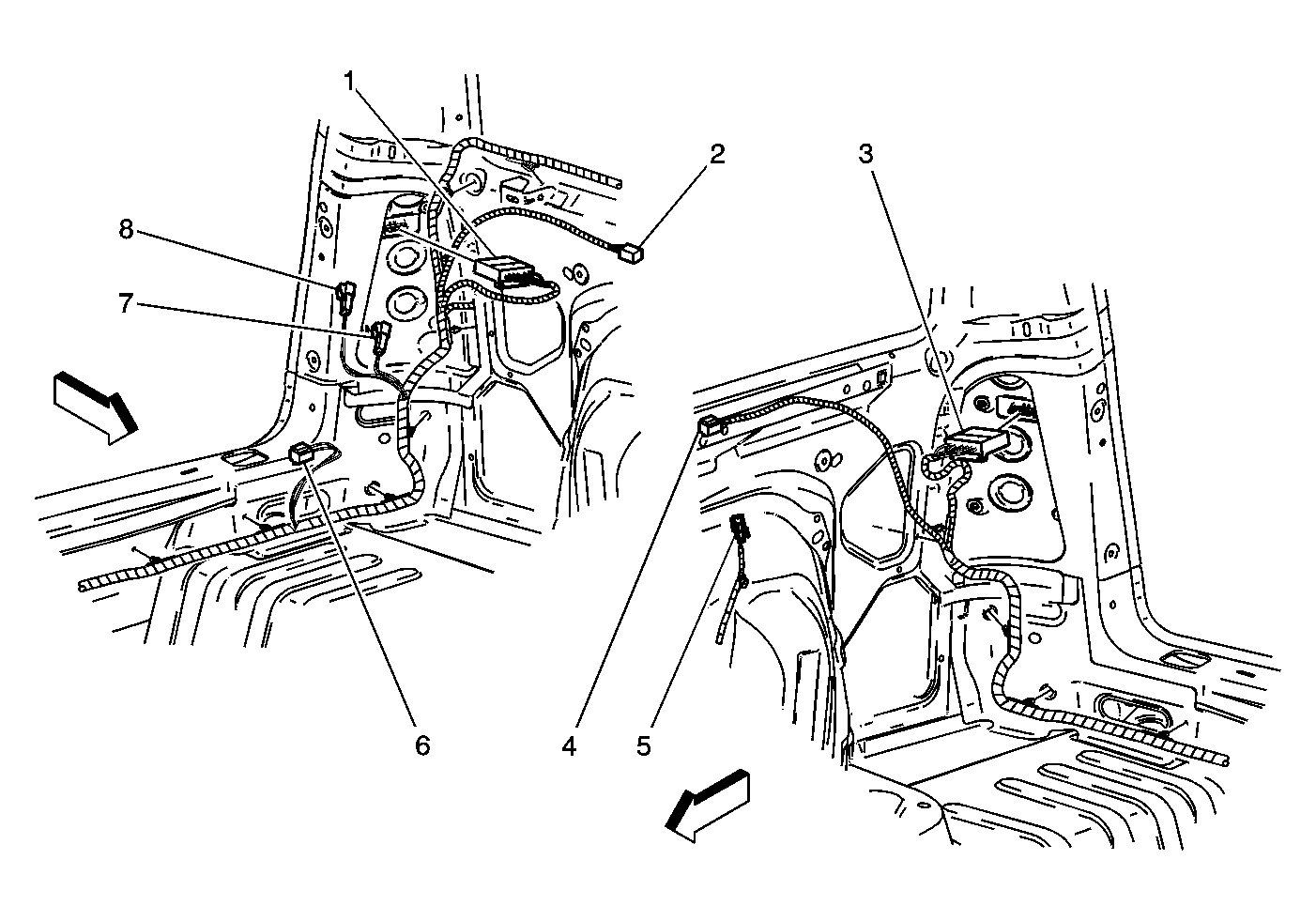

| 1 | Tail Lamp Assembly - Left |
| 2 | Inflatable Restraint Side Impact Module - Left Connector |
| 3 | Tail Lamp Assembly - Right |
| 4 | Inflatable Restraint Side Impact Module - Right Connector |
| 5 | C408 |
| 6 | Speaker - Subwoofer Connector |
| 7 | C495 |
| 8 | C493 |
| Callout | Component Name |
|---|---|
| 1 | Ambient Light Sensor |
| 2 | Windshield Wiper/Washer Switch |
| 3 | Left Heated Seat/Fog Lamp Switch |
| 4 | Hazard Switch |
| 5 | Right Heated Seat/Traction Switch |
| 6 | Radio |
| 7 | HVAC Control Module |
| 8 | Headlamp/Turn Signal Switch |
| 9 | Dimmer/Rear Compartment Lid Release Switch |
| 10 | Instrument Panel Cluster (IPC) |
| 11 | Ignition Lock Cylinder Solenoid |
