Engine Electrical Component Views
WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

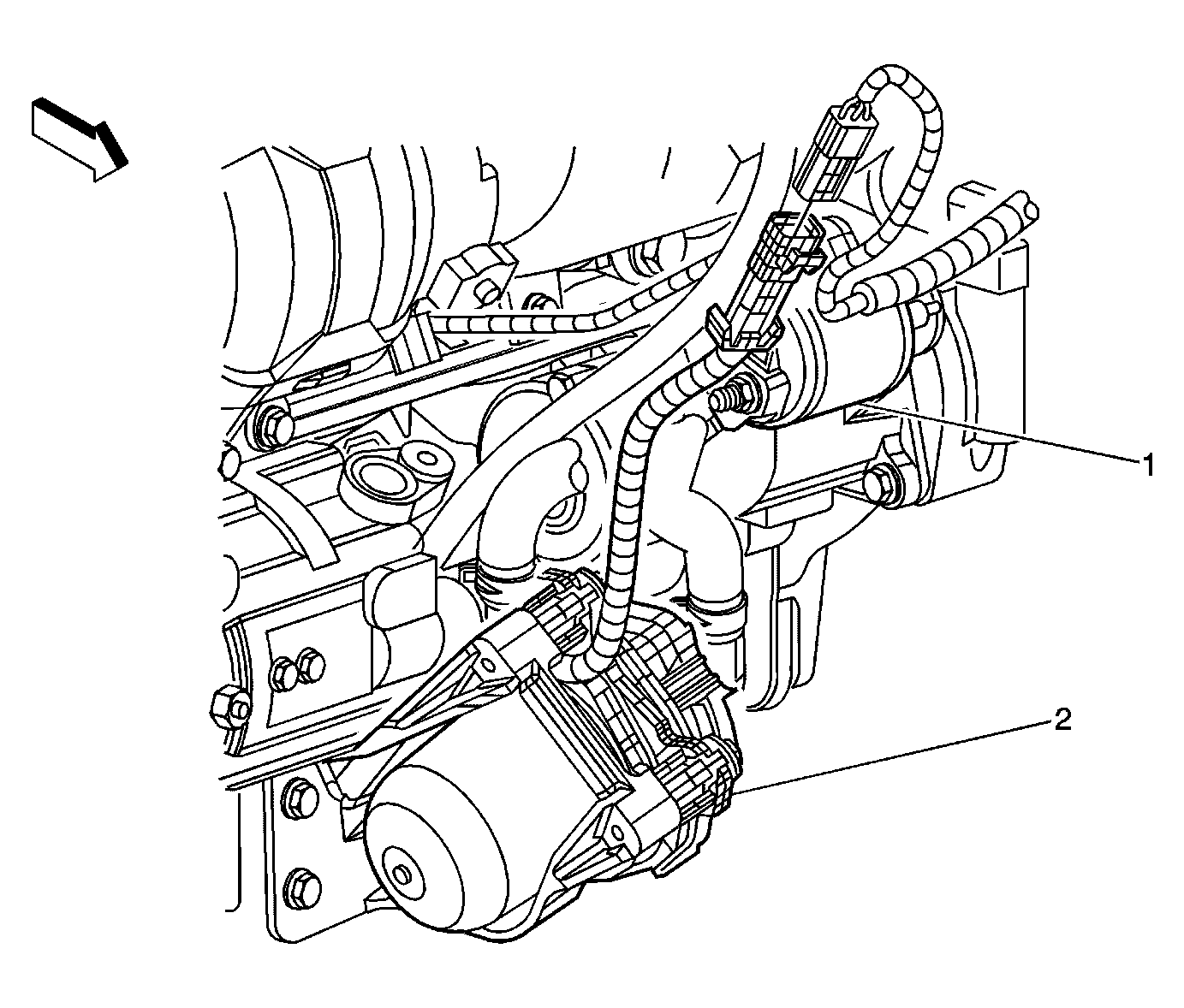

| Callout | Component Name |
|---|---|
| 1 | Starter Solenoid |
| 2 | Secondary Air Injection (AIR) Pump |
| Callout | Component Name |
|---|---|
| 1 | Cooling Fan Control Module |
| 2 | Battery |
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position (CMP) Sensor |
| 2 | Mass Air Flow (MAF) Sensor |
| 3 | Throttle Actuator Control (TAC) Module |
| 4 | Ignition Control Module (ICM) |
| 5 | Engine Control Module (ECM) |
| 6 | Engine Coolant Temperature (ECT) Sensor |
| 7 | Crankshaft Position (CKP) Sensor |
| 8 | Knock Sensor (KS) 2 |
| 9 | A/C Compressor Clutch Coil (Hidden) |
| 10 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 11 | Generator |

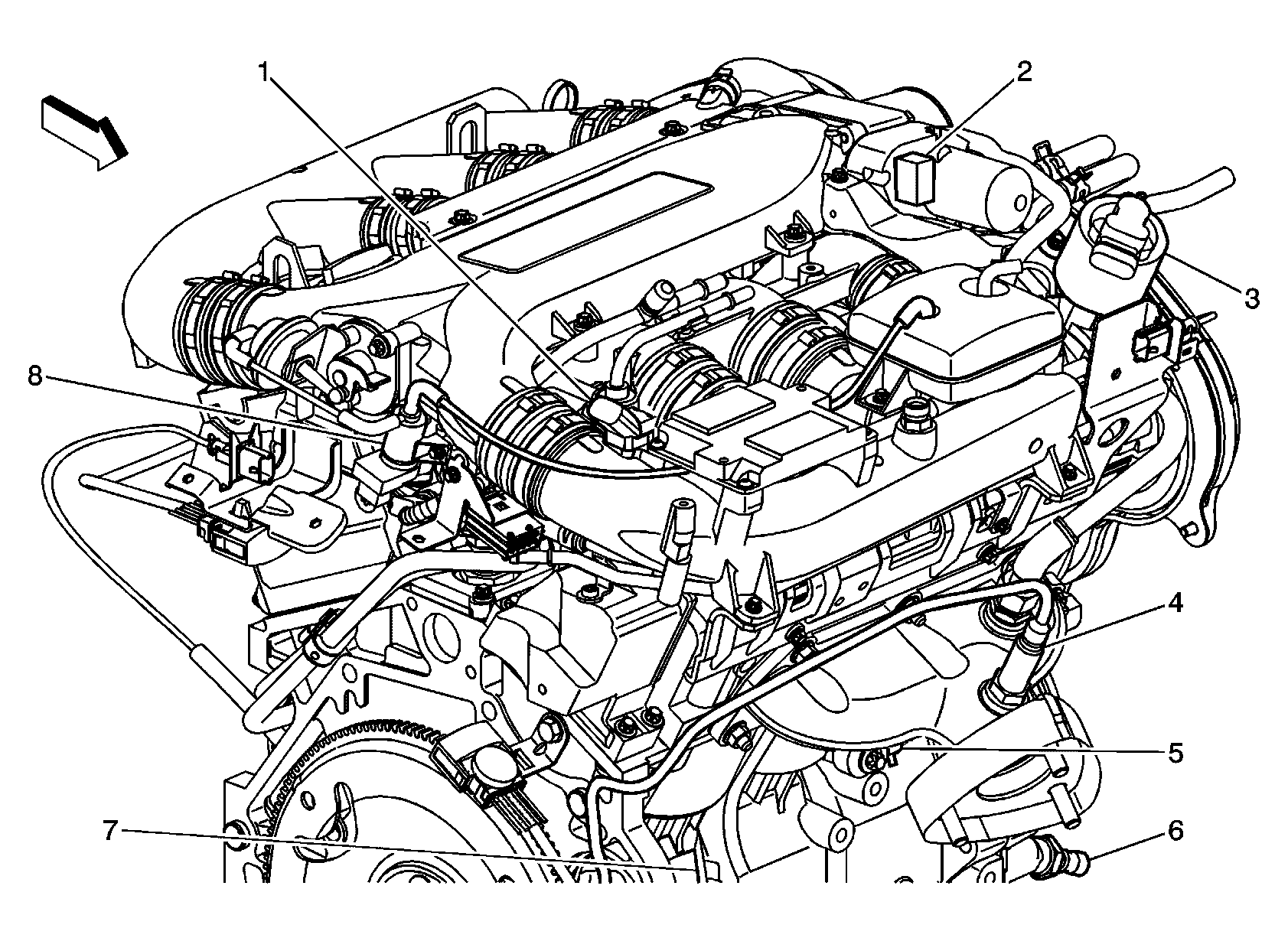

| Callout | Component Name |
|---|---|
| 1 | Manifold Absolute Pressure (MAP) Sensor |
| 2 | Throttle Actuator Control (TAC) Module |
| 3 | Exhaust Gas Recirculation (EGR) Valve |
| 4 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 |
| 5 | Knock Sensor (KS) 1 |
| 6 | Engine Oil Pressure (EOP) Switch |
| 7 | Starter |
| 8 | Intake Manifold Runner Control (IMRC) Solenoid |

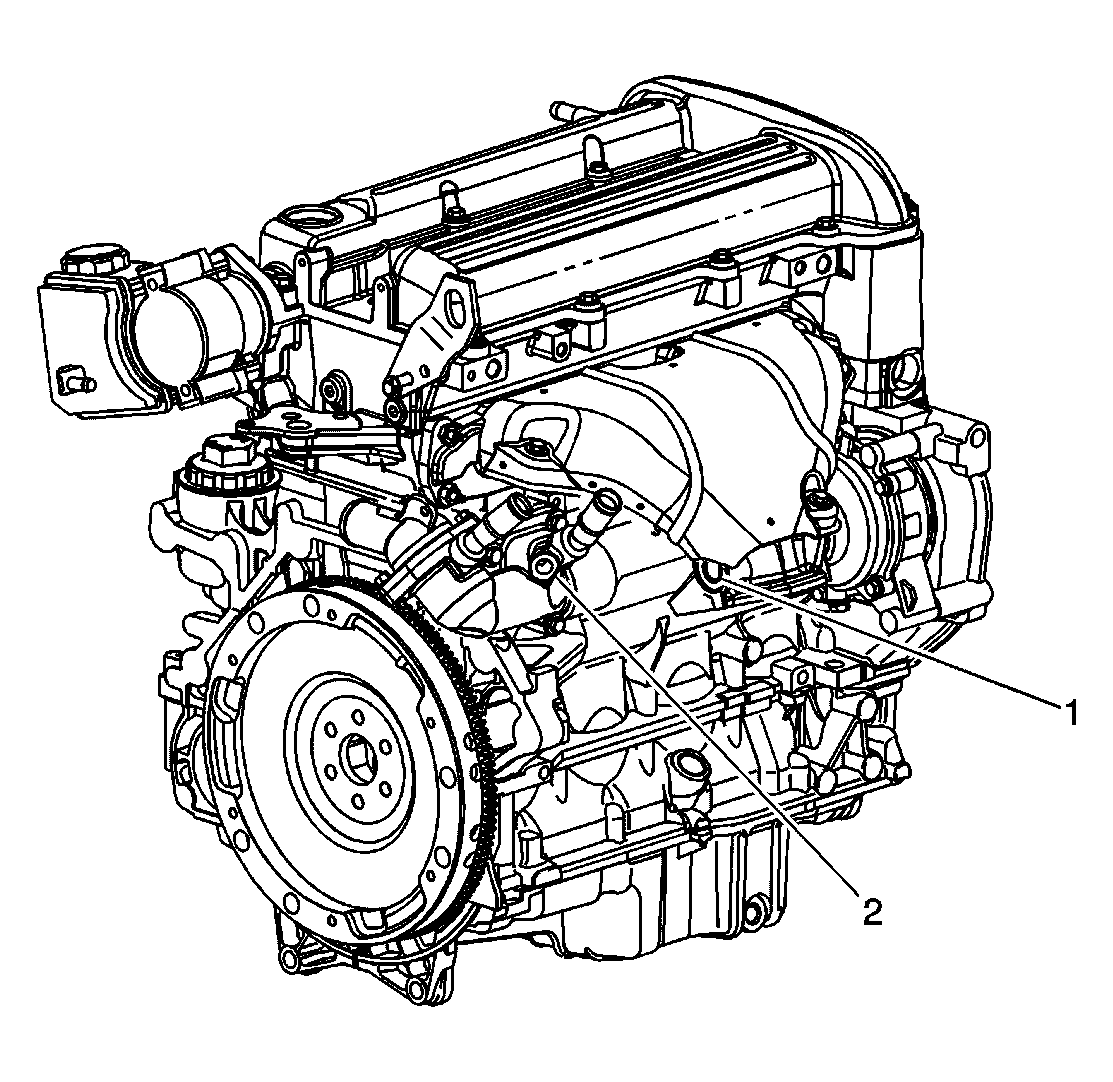

| Callout | Component Name |
|---|---|
| 1 | Heated Oxygen Sensor (HO2S) - Front |
| 2 | Engine Coolant Temperature (ECT) Sensor |

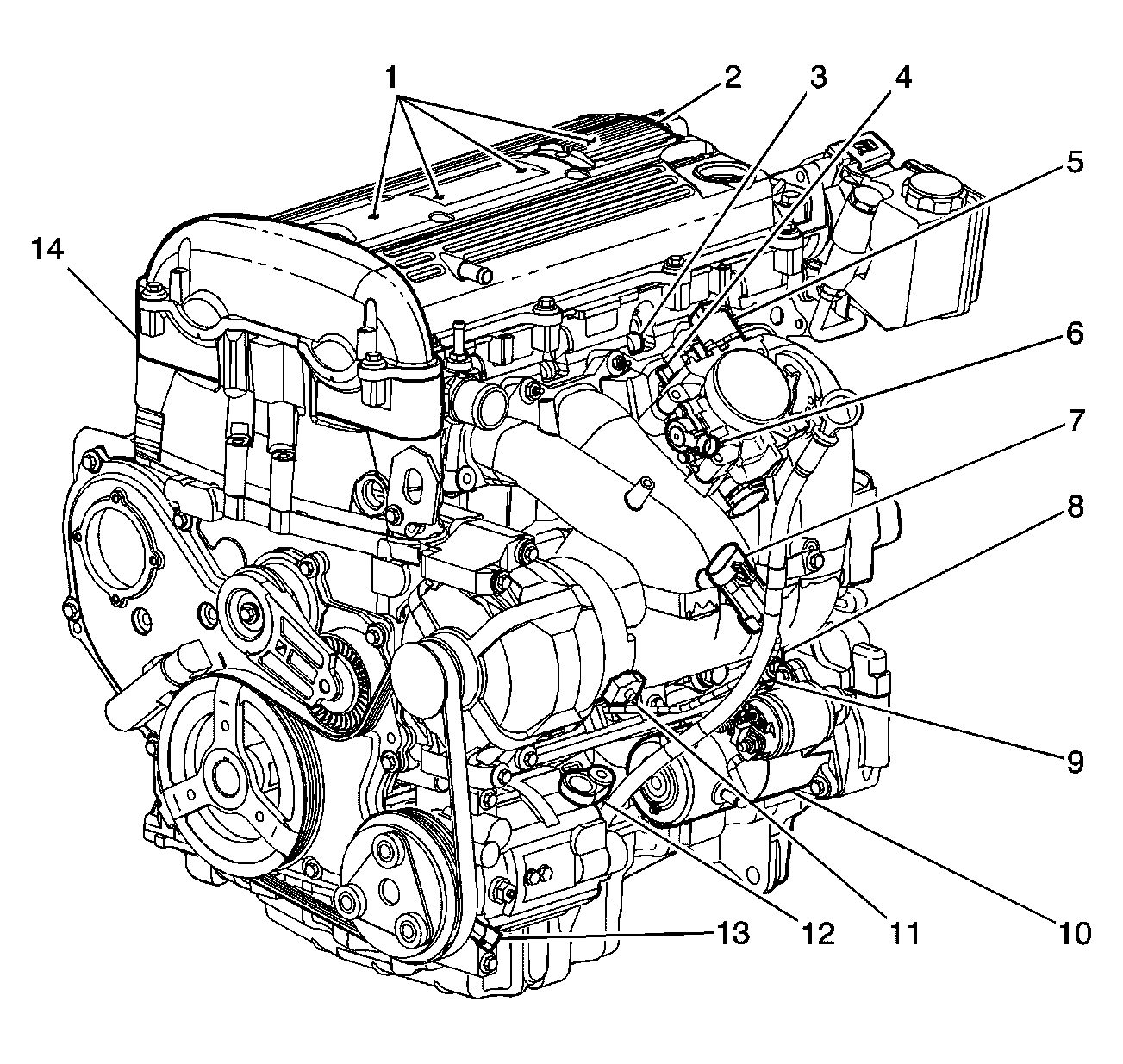

| Callout | Component Name |
|---|---|
| 1 | Spark Plugs |
| 2 | Ignition Control Module (ICM) |
| 3 | Fuel Injectors |
| 4 | Manifold Absolute Pressure (MAP) Sensor |
| 5 | Idle Air Control (IAC) Valve |
| 6 | Throttle Position (TP) Sensor |
| 7 | Knock Sensor (KS) |
| 8 | Crankshaft Position (CKP) Sensor |
| 9 | Engine Oil Pressure (EOP) Switch |
| 10 | Starter |
| 11 | Generator |
| 12 | A/C Refrigerant Pressure Sensor |
| 13 | A/C Compressor Clutch |
| 14 | Evaporative Emissions (EVAP) Canister Purge Solenoid |
