HVAC System Connector End View

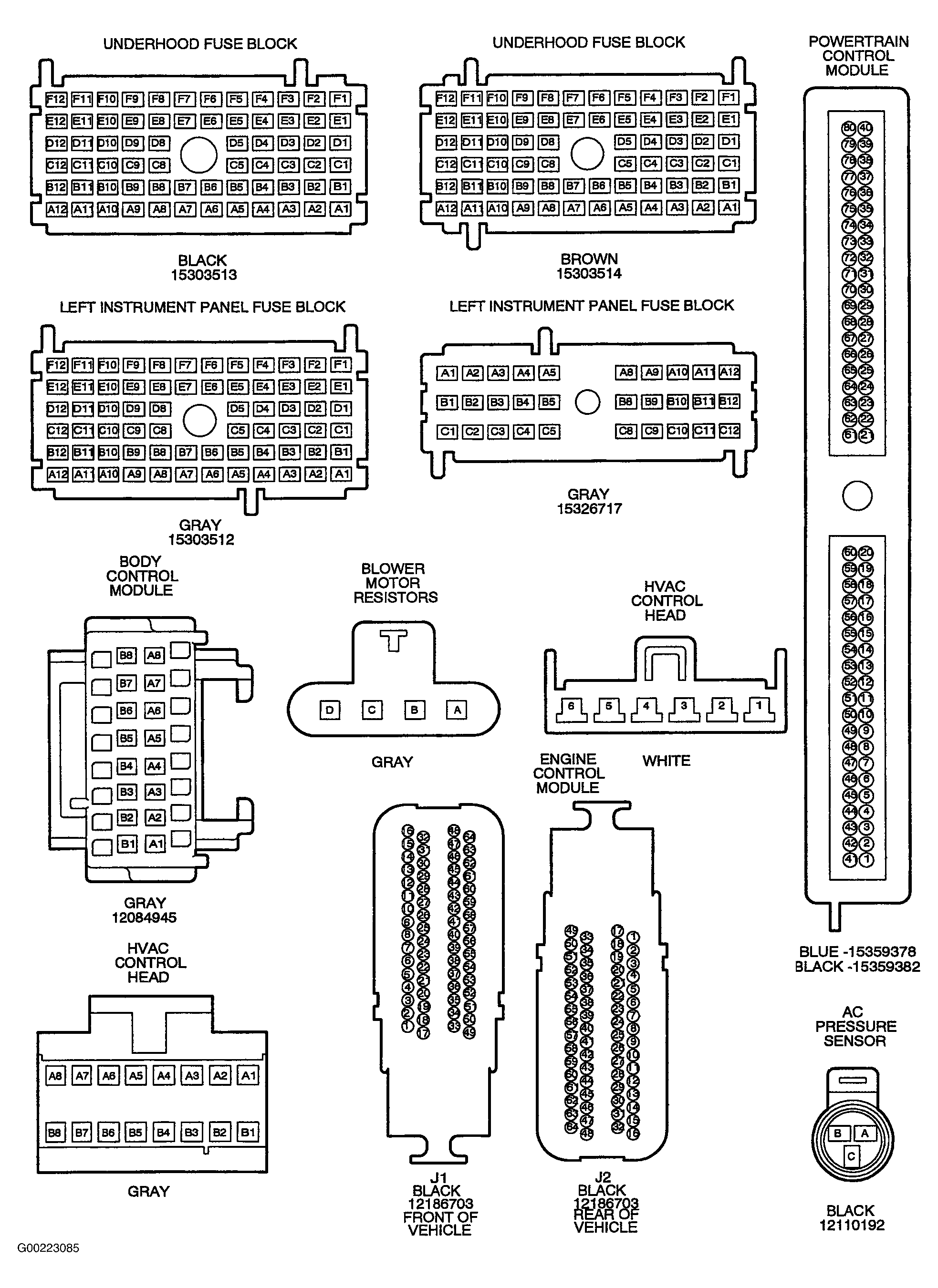

Fig 1: HVAC System
Courtesy of GENERAL MOTORS CORP.
Fig 1: HVAC System
Courtesy of GENERAL MOTORS CORP.
