Body Control Module Diagnostic Codes

The following figures list the Body Control Module (BCM) diagnostic codes:

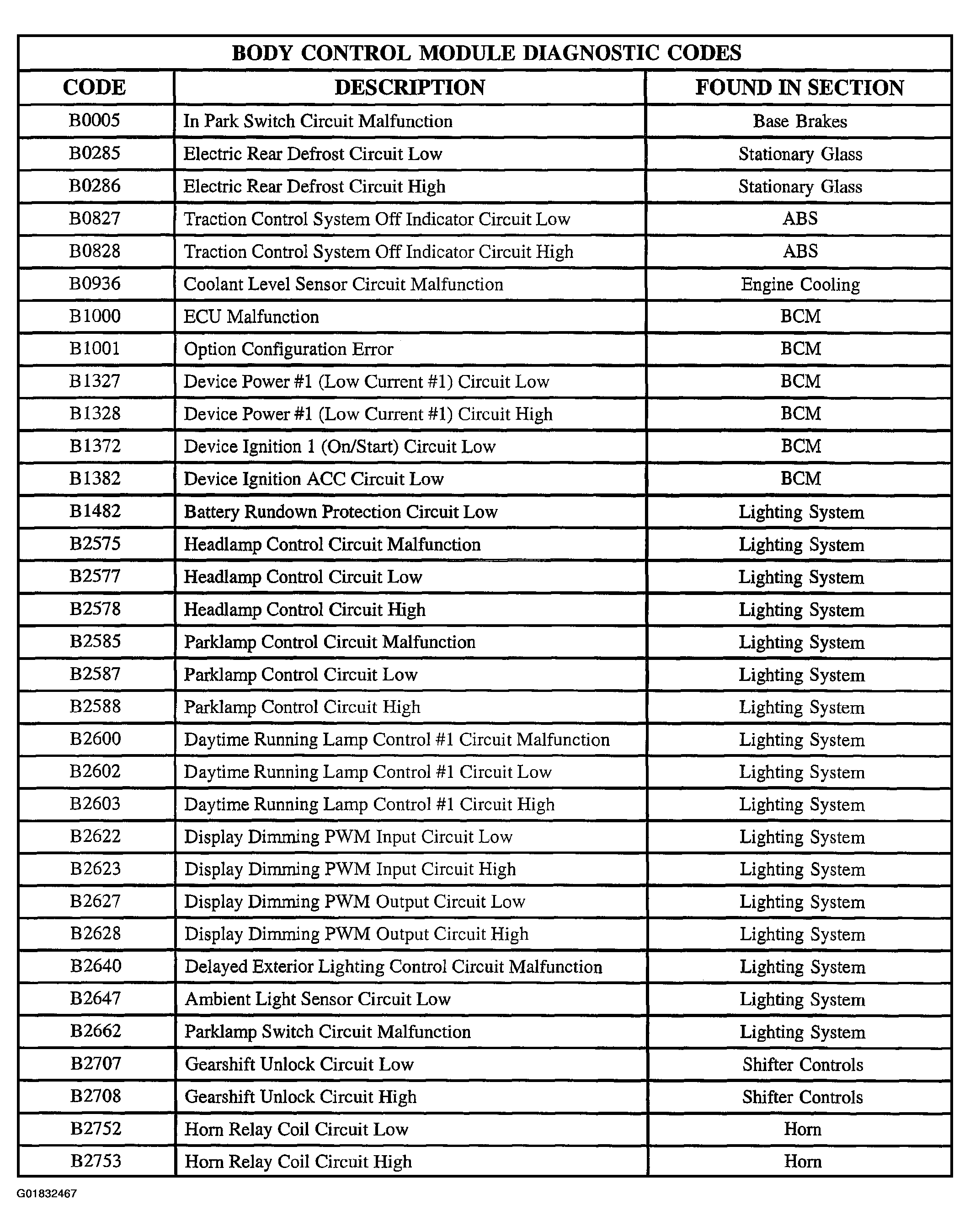

Fig 1: Body Control Module Diagnostic Codes Table (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

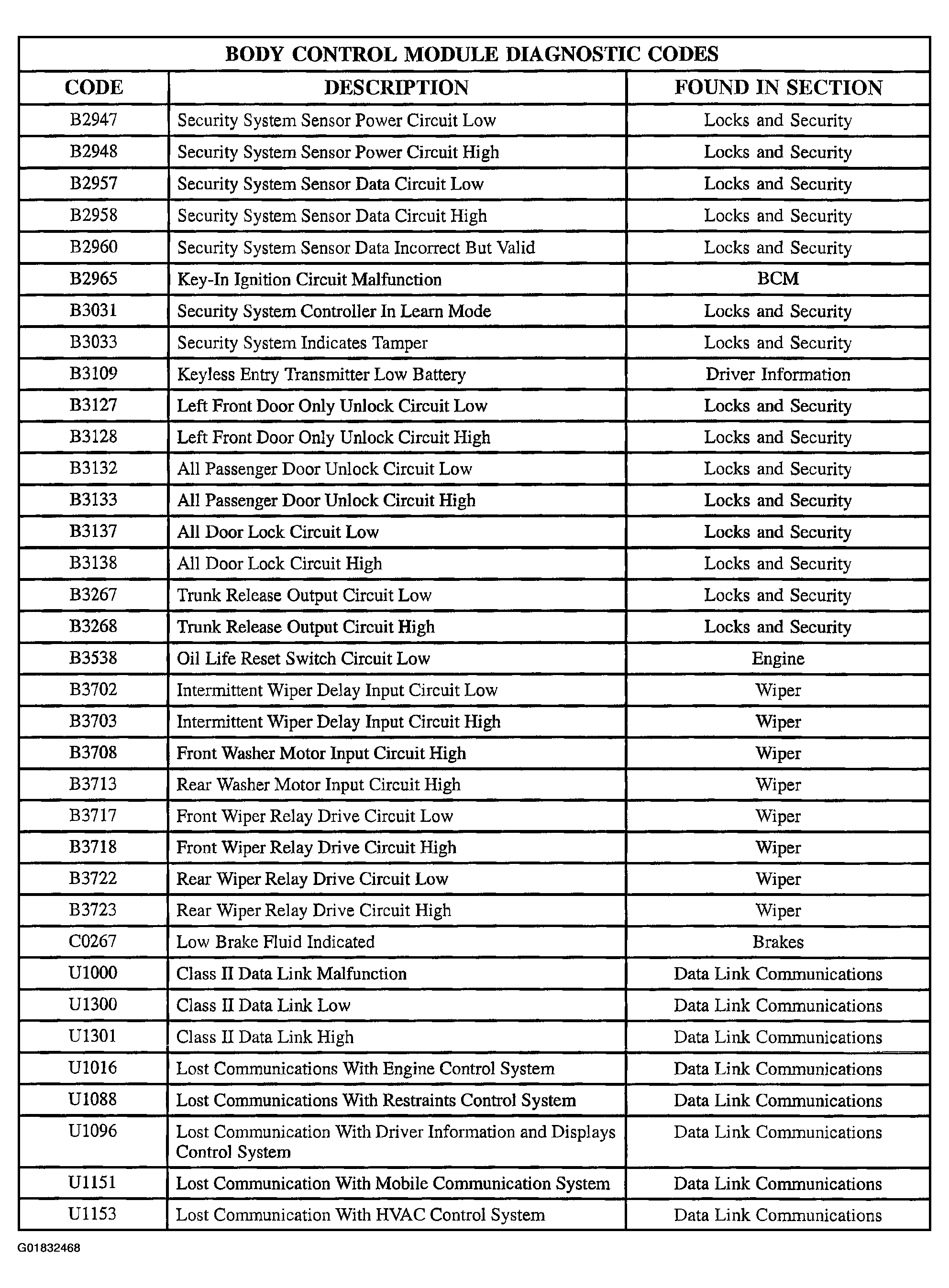

Fig 2: Body Control Module Diagnostic Codes Table (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

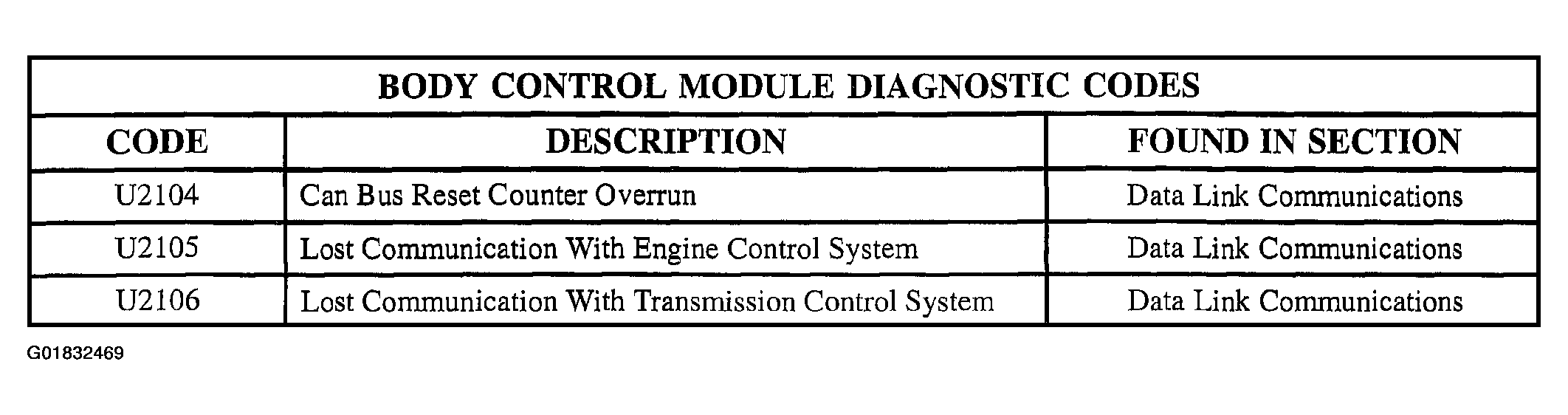

Fig 3: Body Control Module Diagnostic Codes Table (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
