J2

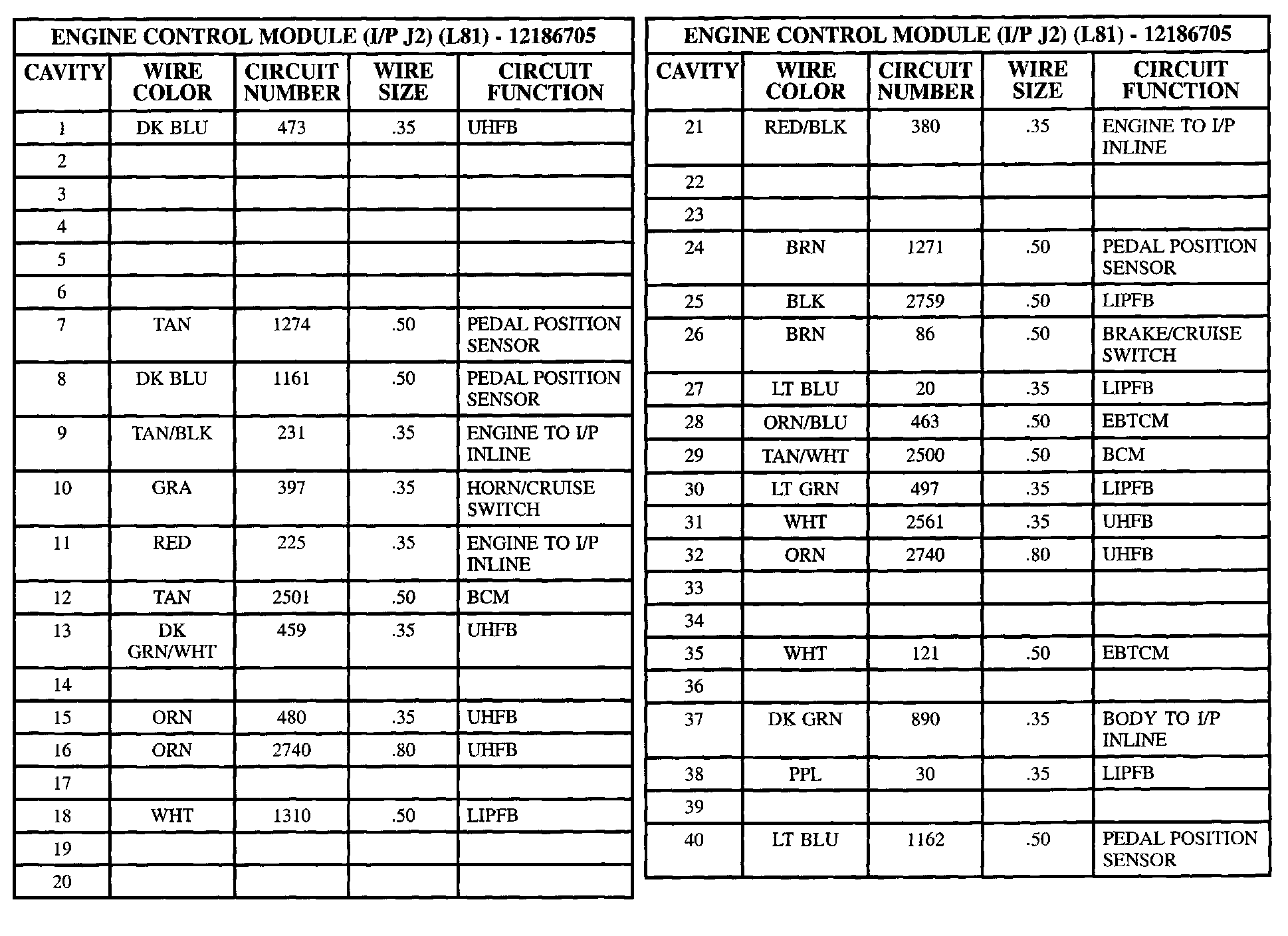

Engine Control Module (I/P J2) Part 1:
Engine Control Module (I/P J2) Part 2:

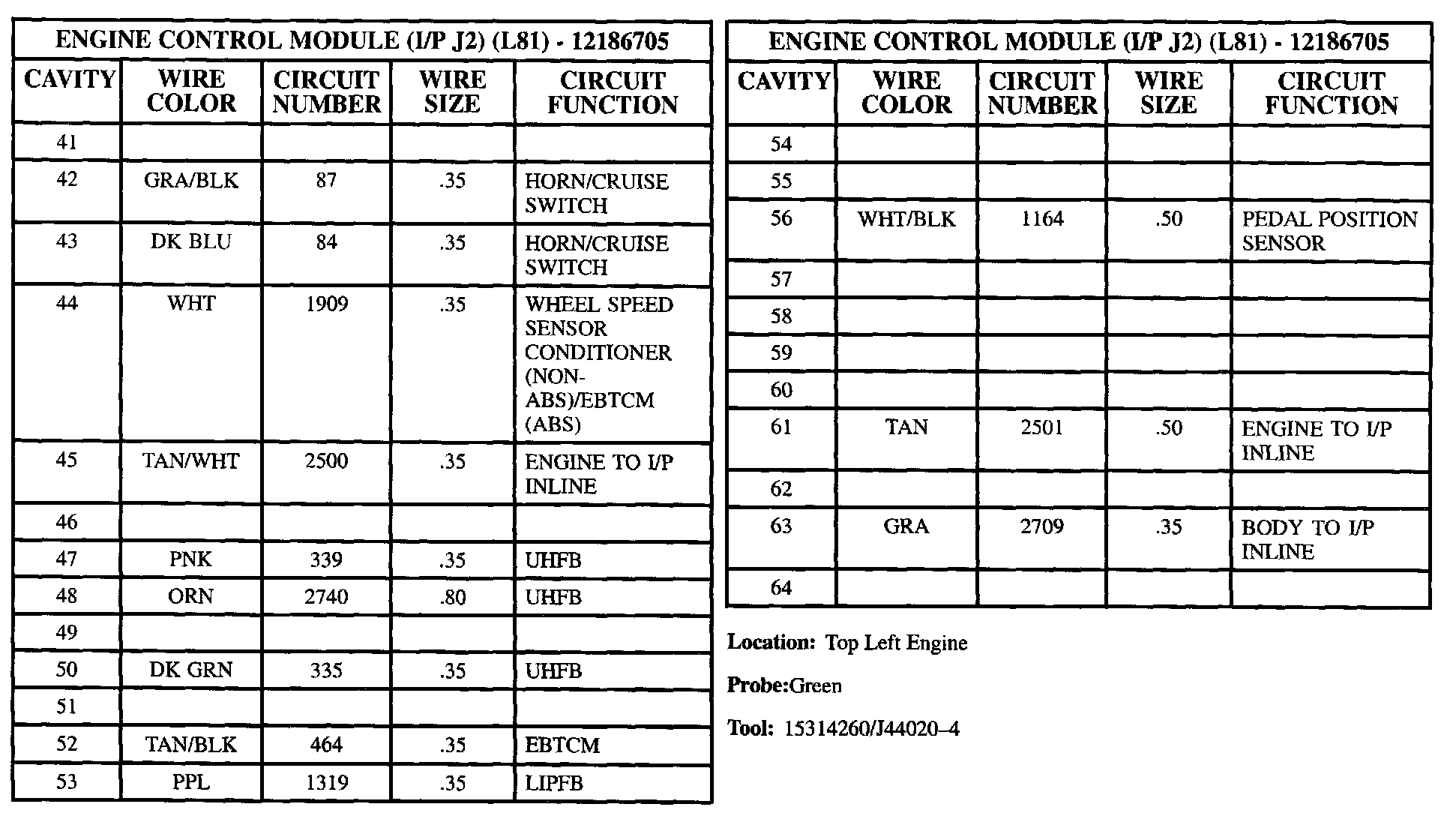

Engine Control Module (I/P J2) Part 3:
