Transaxle Control Module (TCM) Inputs and Outputs Schematics

TRANSAXLE CONTROL MODULE (TCM) INPUTS AND OUTPUTS (L81 ONLY) SCHEMATICS

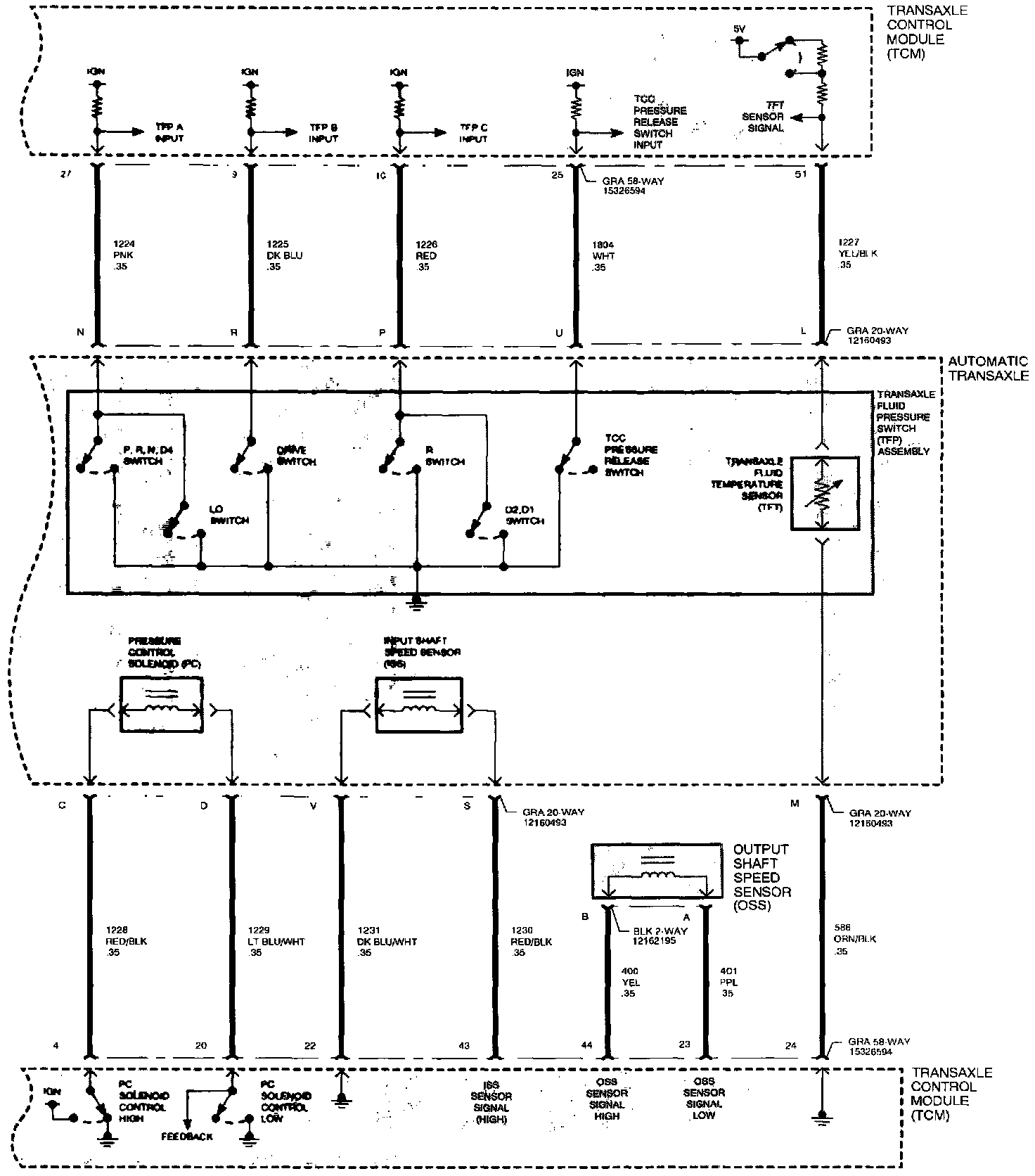

Part 1 of 2

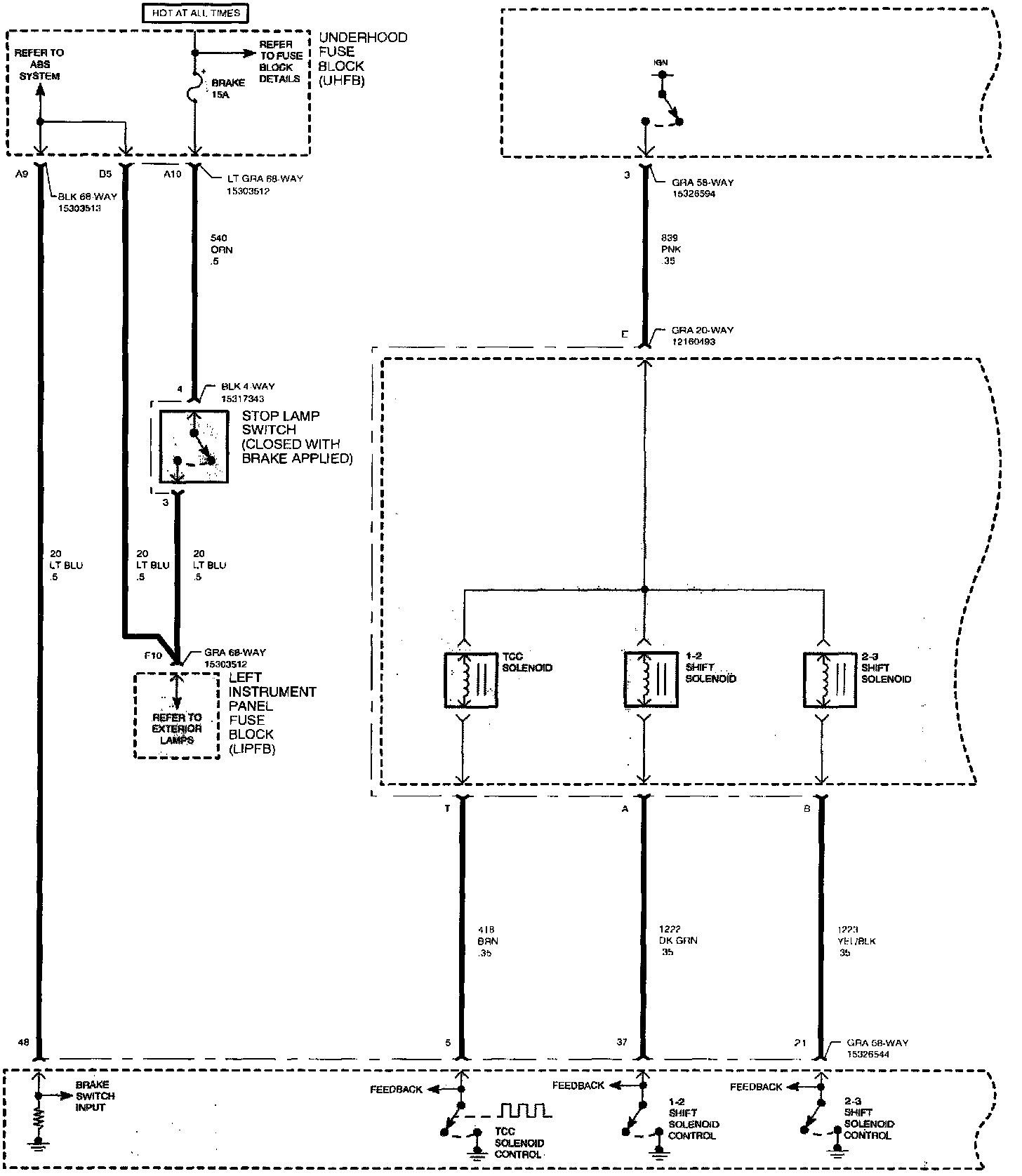

Part 2 of 2
