Cruise Control Module And Throttle Cable: Installation

NOTE: Once factory cable has been removed it cannot be reused. Replace factory cable with adjustable type cable. An initial adjustment of the new cable will be necessary. Afterwards, the lash learn capability of the cruise control module will compensate for future adjustments. For more information on the lash learn capability see CRUISE CONTROL SYSTEM DESCRIPTION .

CAUTION: Do not twist connecting strap during installation.

Connect cruise control throttle cable to cruise control module connecting strap.

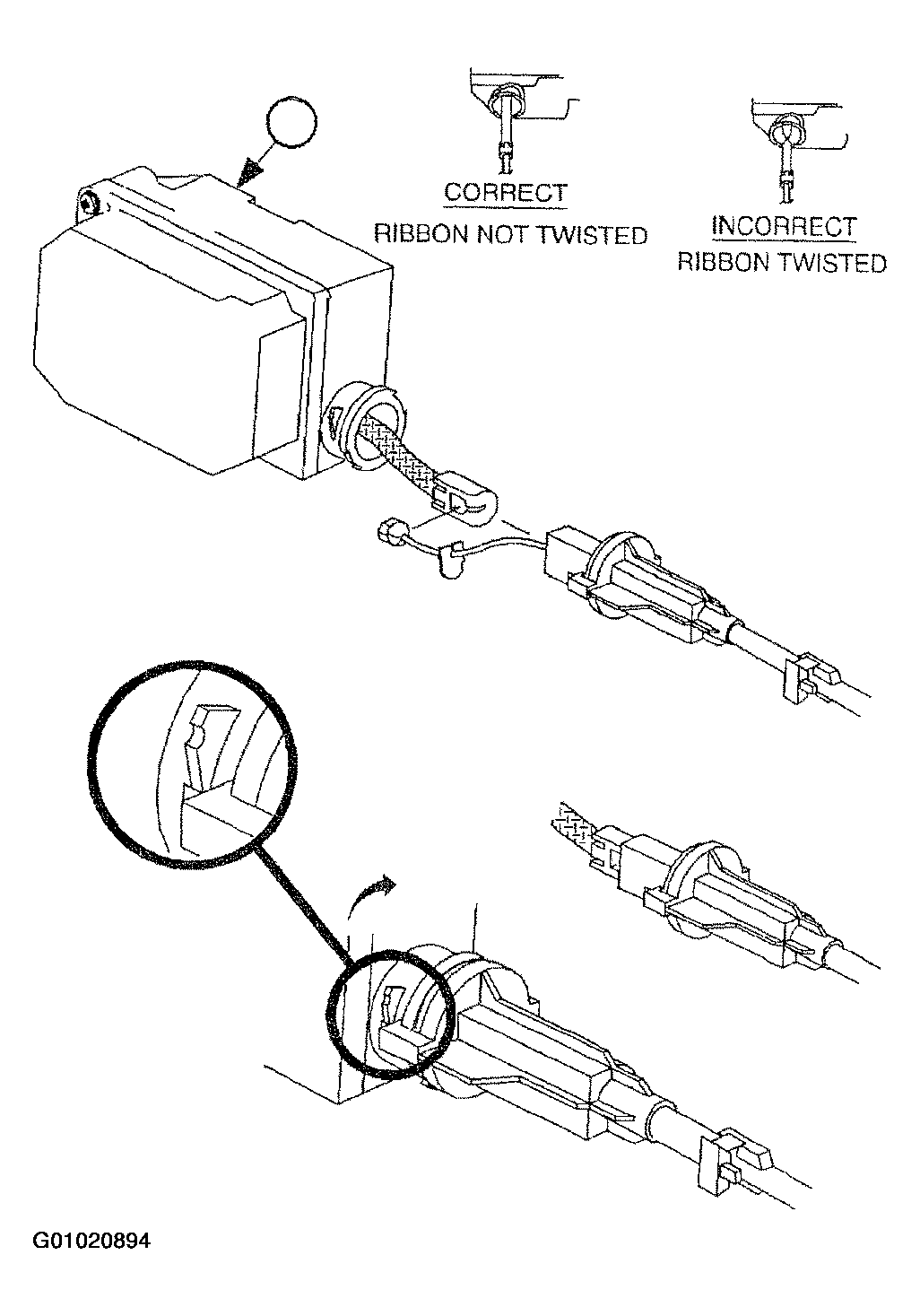

Fig 1: Connecting Throttle Cable To Connecting Strap
Courtesy of GENERAL MOTORS CORP.
Install cruise control throttle cable to cruise control module by rotating 1/4 turn clockwise.

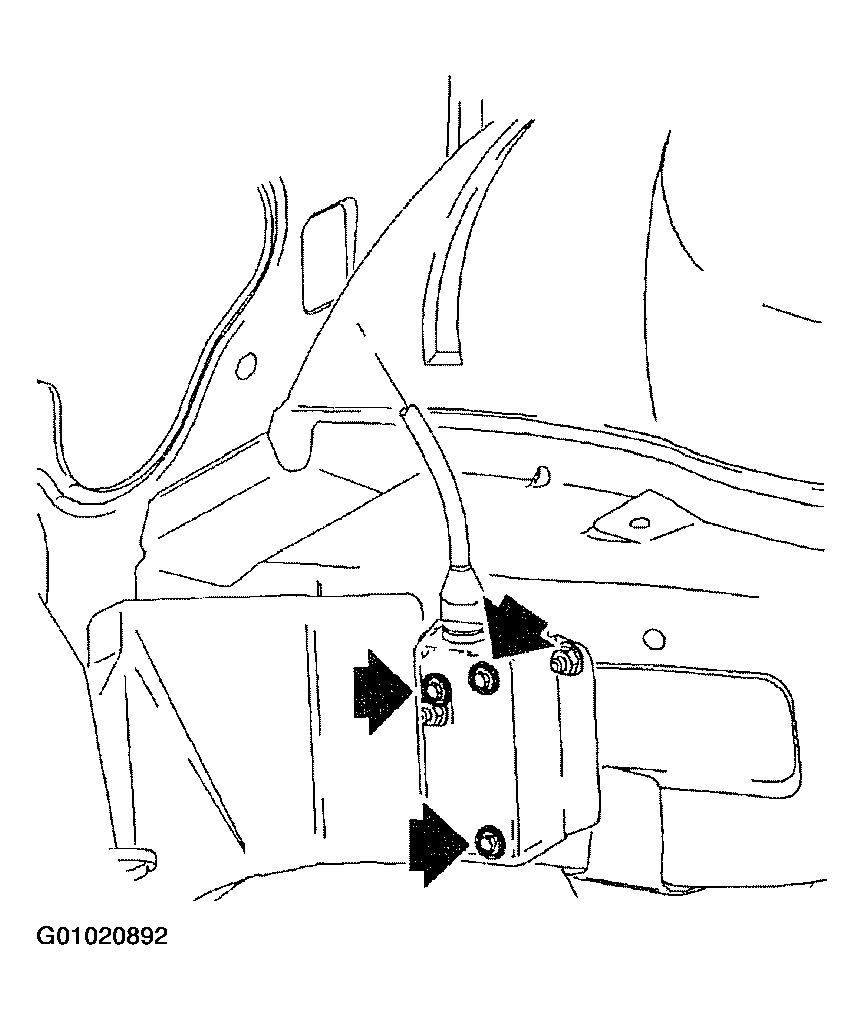

Install cruise control module with throttle cable into frame rail bracket and install attachment bolts. Tighten cruise control module-to-frame rail bracket bolts to 10 N.m (89 in-lbs). See Figure .
Install throttle cable clip to front of dash stud.

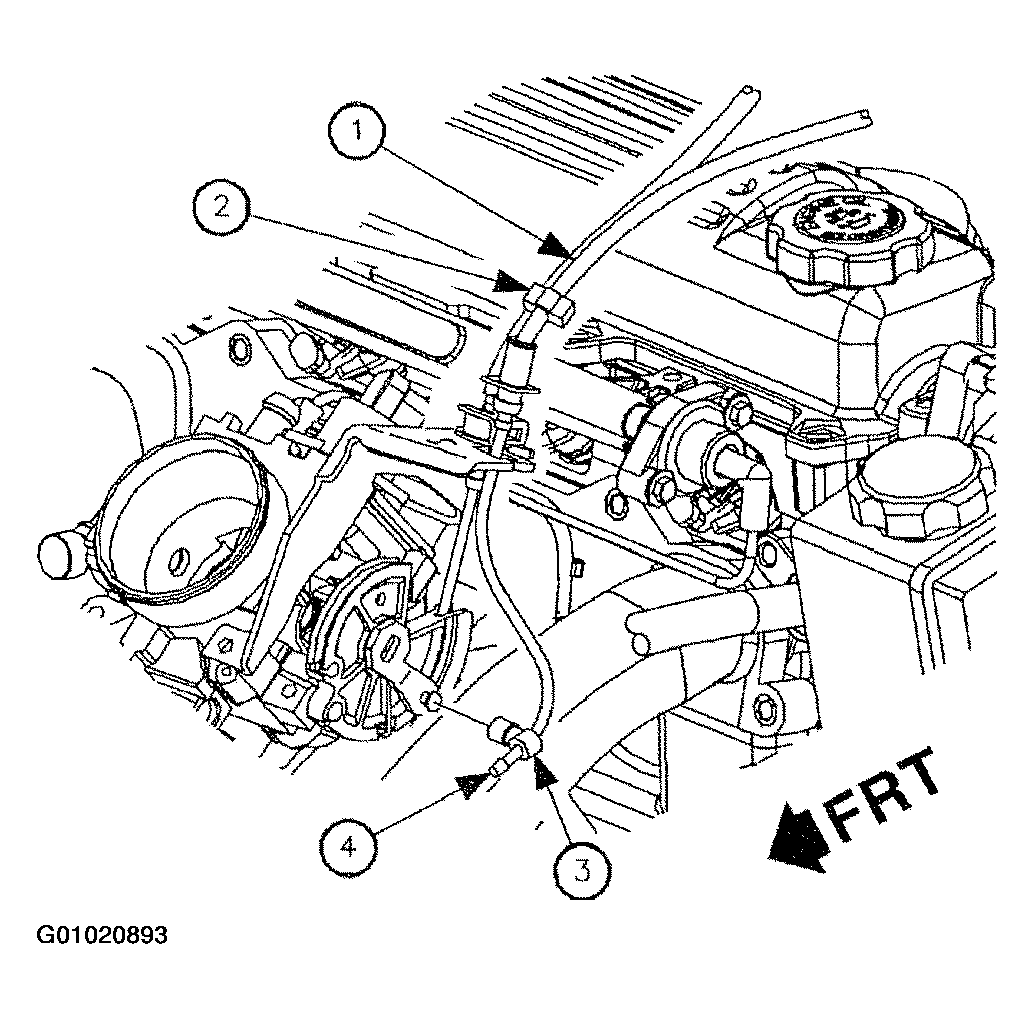

Install cruise control throttle cable snap to throttle body cam. See Figure .
Install cruise control throttle cable to both attachment clips.
Connect cruise control module harness connector. Push in until a click is heard and pull back to confirm a positive engagement.
Adjust cruise control throttle cable. Refer to CRUISE CONTROL THROTTLE CABLE ADJUSTMENT .
