Engine Block (Back View)

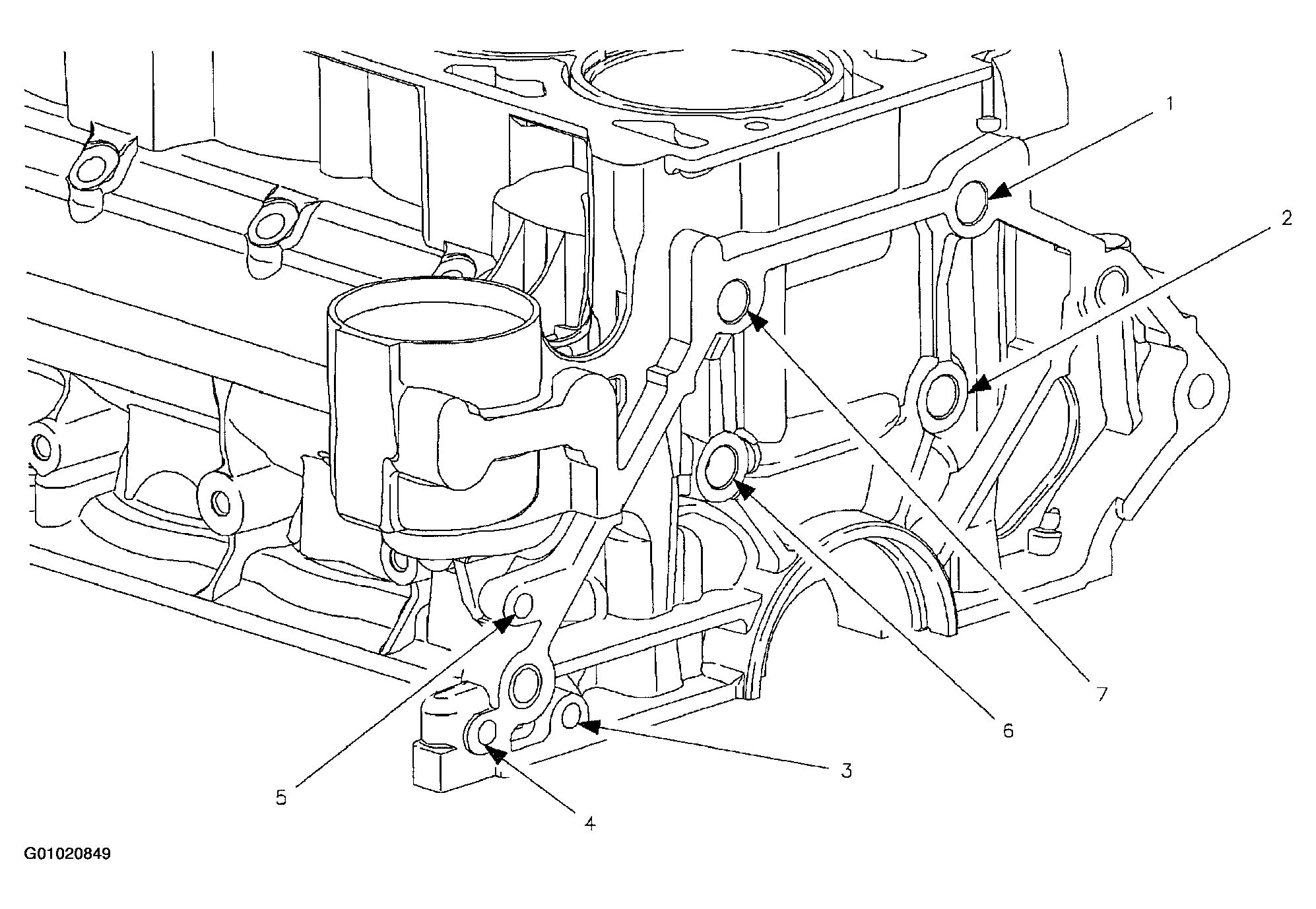

Fig 1: Engine Block (Back View)
G01020849Courtesy of GENERAL MOTORS CORP.

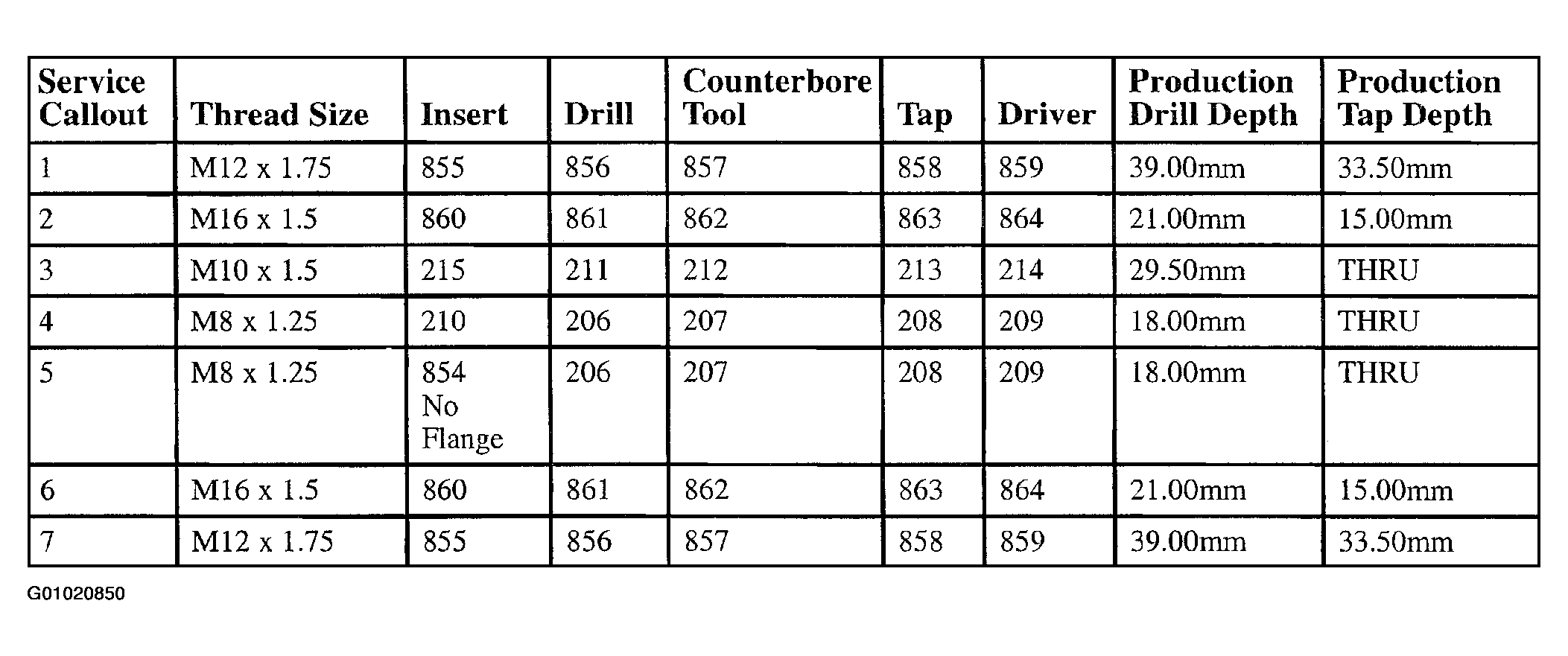

Fig 2: Engine Block (Back View) Specifications
G01020850Courtesy of GENERAL MOTORS CORP.
