Engine Block (Left Side View)

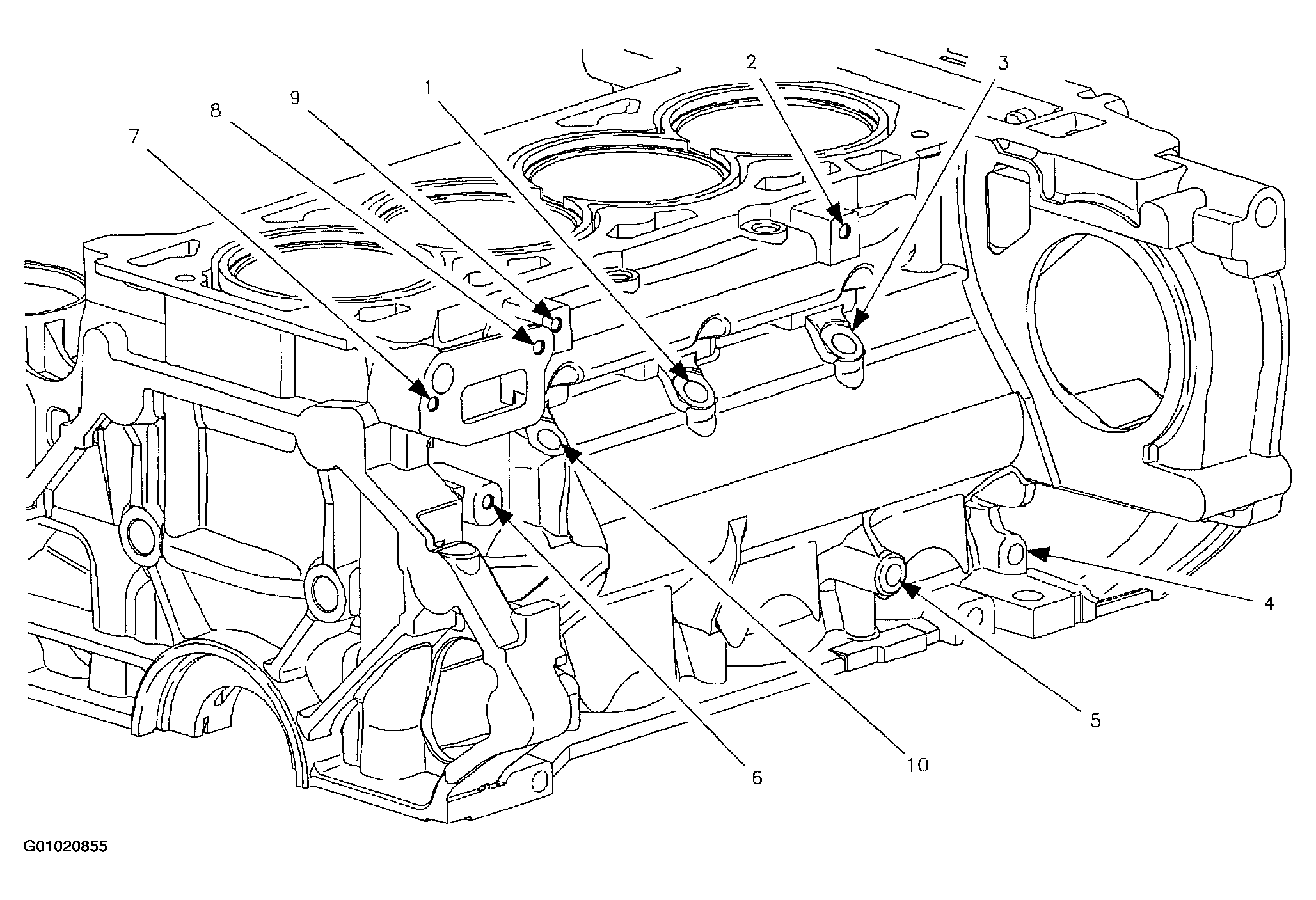

Fig 1: Engine Block (Left Side View)
G01020855Courtesy of GENERAL MOTORS CORP.

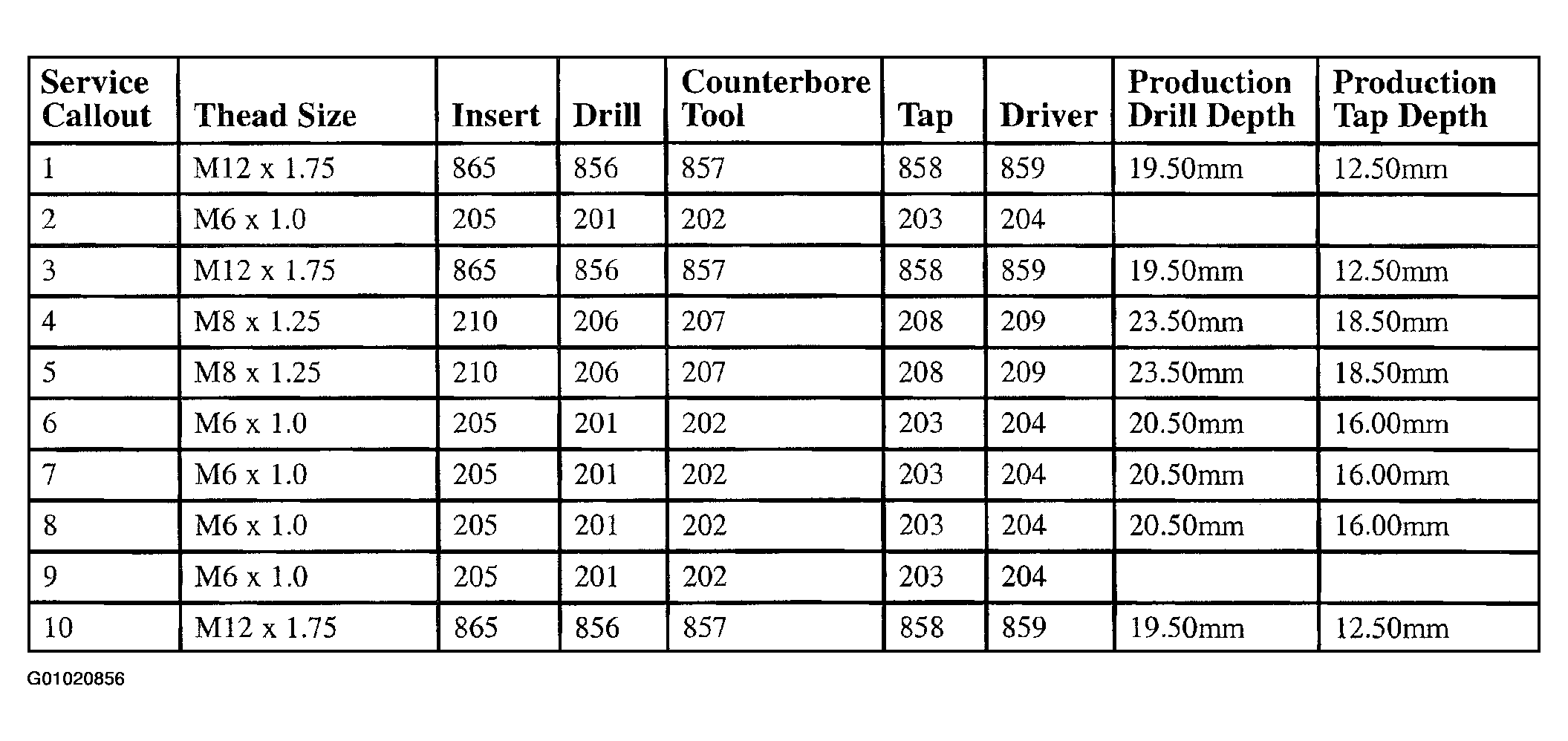

Fig 2: Engine Block (Left Side View) Specifications
G01020856Courtesy of GENERAL MOTORS CORP.
