Upper Right Engine Block

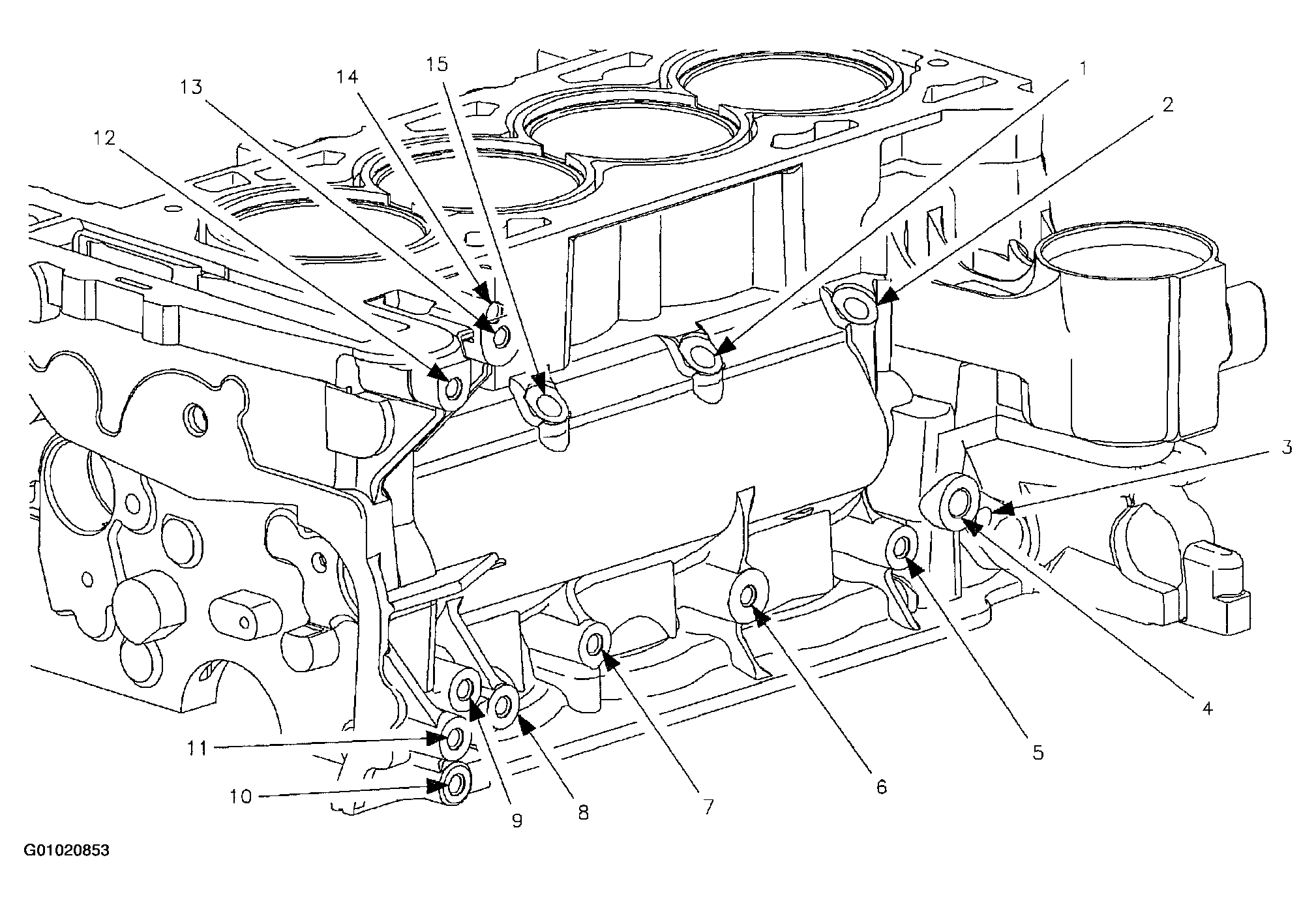

Fig 1: Upper Right Engine Block View
G01020853Courtesy of GENERAL MOTORS CORP.

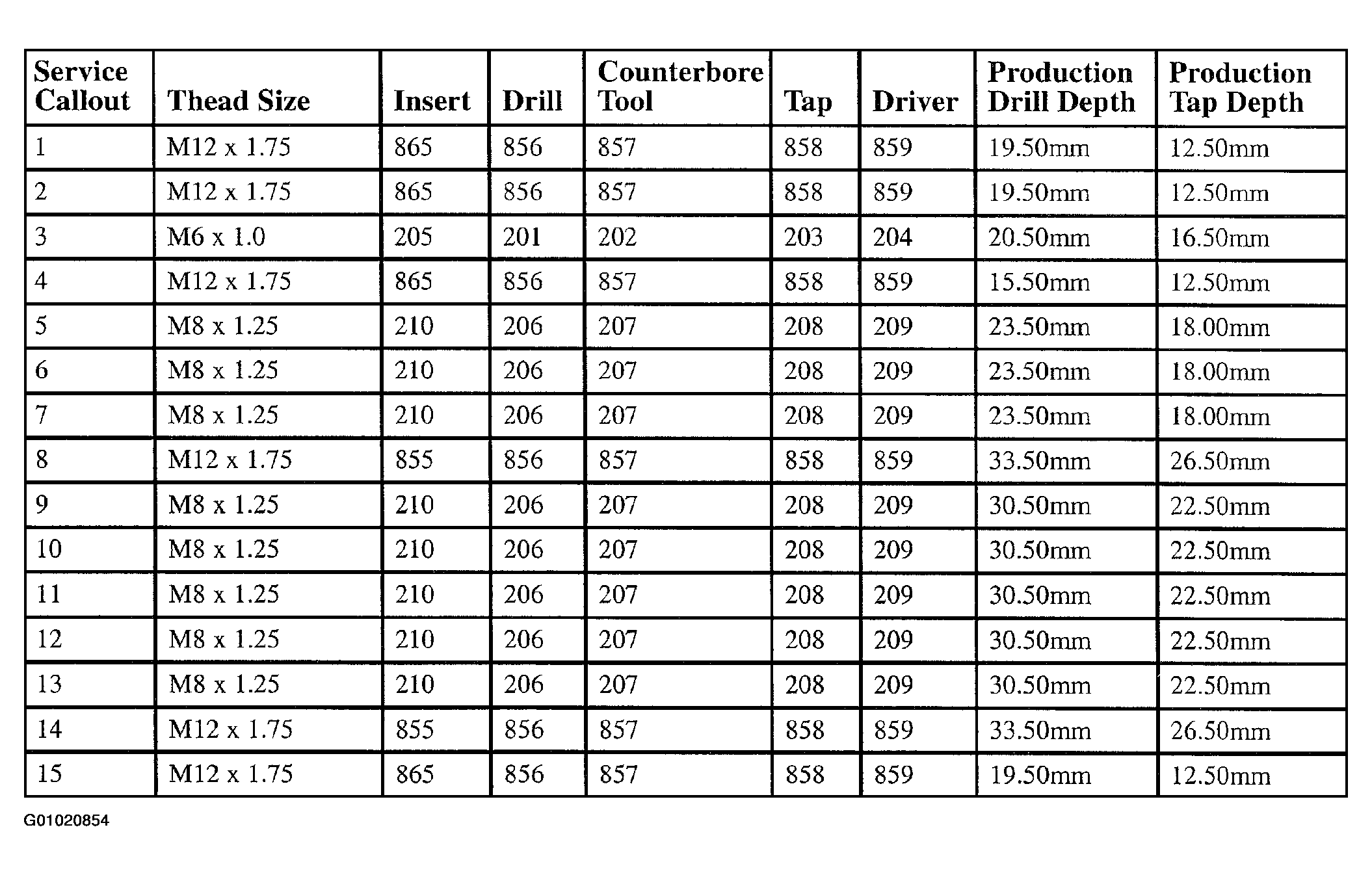

Fig 2: Upper Right Engine Block Specifications
G01020854Courtesy of GENERAL MOTORS CORP.
