Steering Column Disassembled View

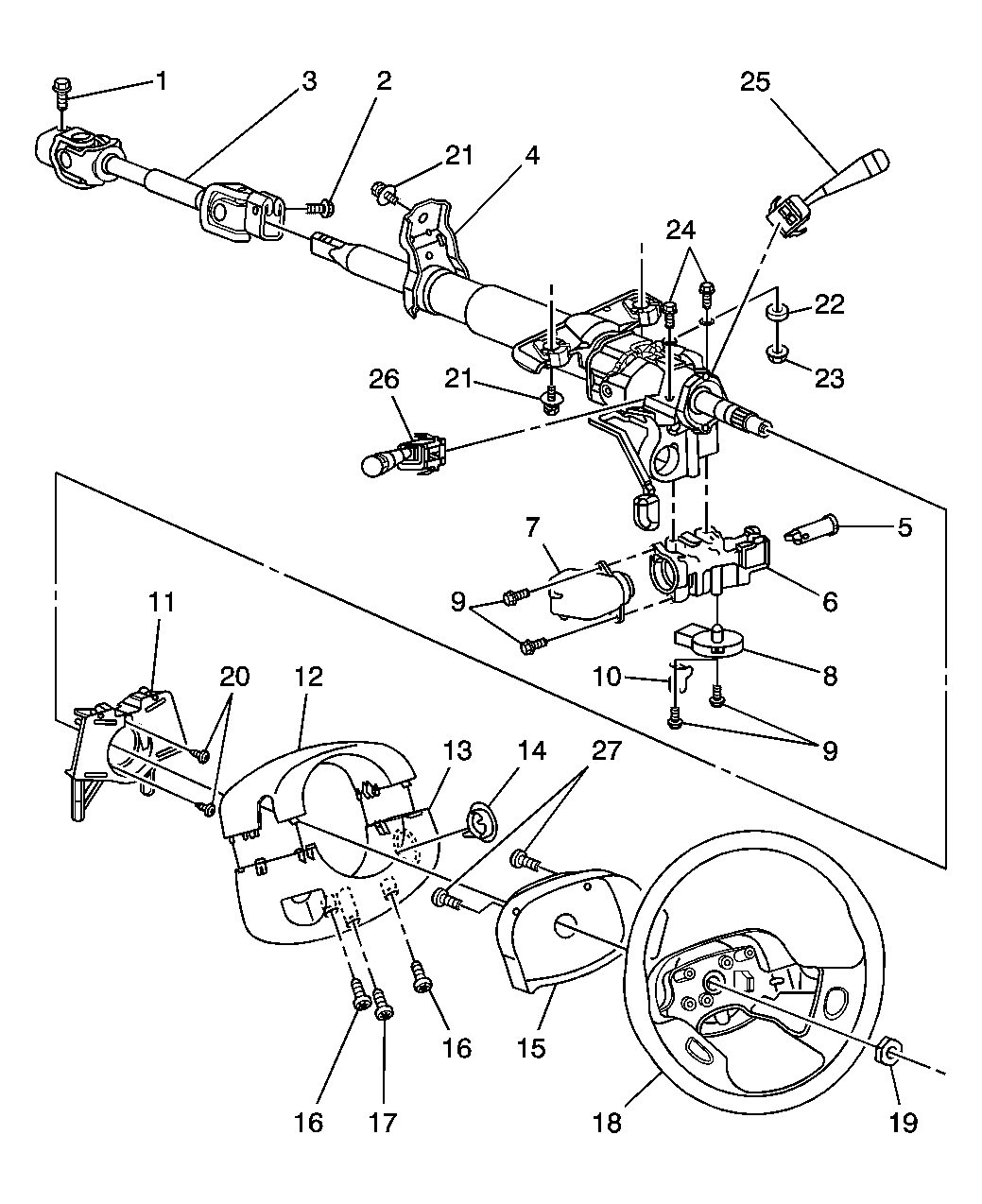

Fig 1: Exploded View Of Steering Column Assembly
GM1226748Courtesy of GENERAL MOTORS CORP.
  1. Lower Intermediate Steering Shaft Bolt
  2. Upper Intermediate Steering Shaft Bolt
  3. Intermediate Steering Shaft Assembly
  4. Steering Column Assembly
  5. Ignition Lock Cylinder
  6. Ignition/Start Switch Housing
  7. Ignition/Start Switch Assembly
  8. Automatic Transmission Shift Lock Control Solenoid Assembly
  9. Ignition/Start Switch Bolts
  10. Automatic Transmission Park Lock Cable Clip
  11. Turn Signal Switch Housing Assembly
  12. Upper Trim Cover (13) Lower Trim Cover
  13. Ignition/Start Switch Bezel
  14. Steering Wheel Shroud
  15. Lower Trim Cover Screws
  16. Upper Trim Cover Screws
  17. Steering Wheel Assembly
  18. Steering Wheel Nut
  19. Turn Signal Switch Screws
  20. Steering Column Support Bolts
  21. Steering Column Support Bolts
  22. Steering Column Upper Support Washer
  23. Steering Column Support Nut
  24. Ignition/Start Switch Housing Bolts
  25. Wiper/Washer Switch Assembly
  26. Turn Signal/Head Lamp/Dimmer/Park Switch Assembly
  27. Steering Wheel Shroud Screws
