Lighting Systems Connector End View

Lighting Systems

Courtesy of GENERAL MOTORS CORP.

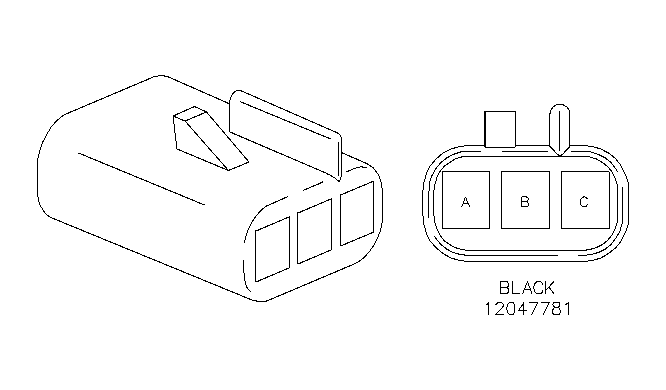

Connector Part Information		Driver 12047781 BLK
Pin	Wire Color	Circuit No.	Function
A	GRY/BLK	745	Chime Module
B	-	-	Not Used
C	BLK	550	Ground

Lighting Systems

Courtesy of GENERAL MOTORS CORP.

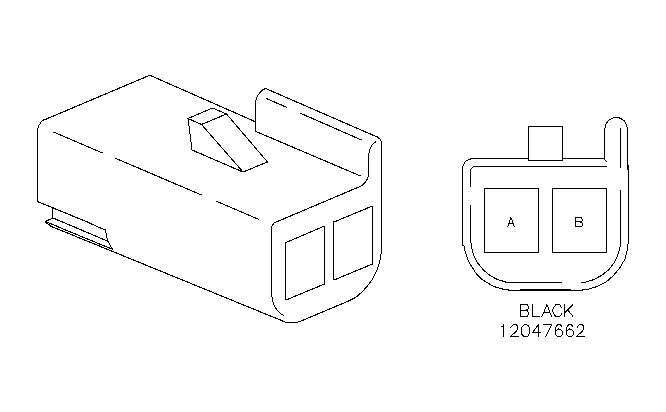

Connector Part Information		Driver 12047662 BLK
Pin	Wire Color	Circuit No.	Function
A	LT BLU/BLK	747	Chime Module
B	BLK	550	Ground

Lighting Systems

Courtesy of GENERAL MOTORS CORP.

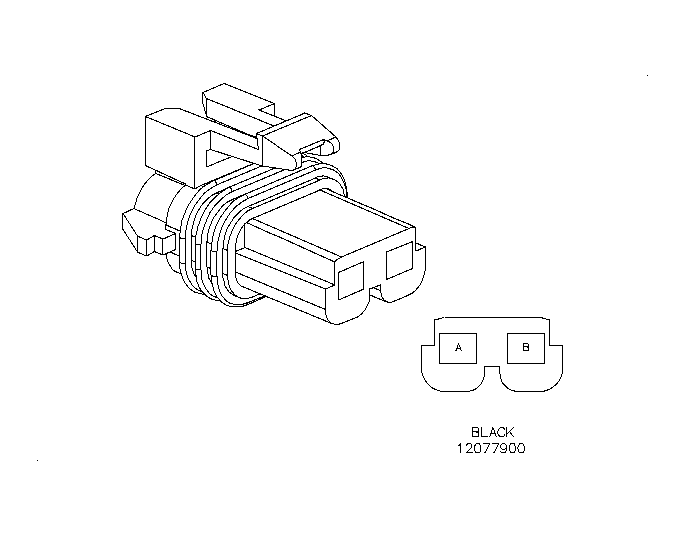

Connector Part Information		Front Passenger 12077900 BLK
Pin	Wire Color	Circuit No.	Function
A	GRY	295	IPFB Lock Relay
B	TAN	294	IPFB Unlock Relay

Lighting Systems

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		Left Rear/Right Rear 12077900 BLK
Pin	Wire Color	Circuit No.	Function
A	TAN	294	IPFB Unlock Relay
B	GRY	295	IPFB Lock Relay

Lighting Systems

Courtesy of GENERAL MOTORS CORP.

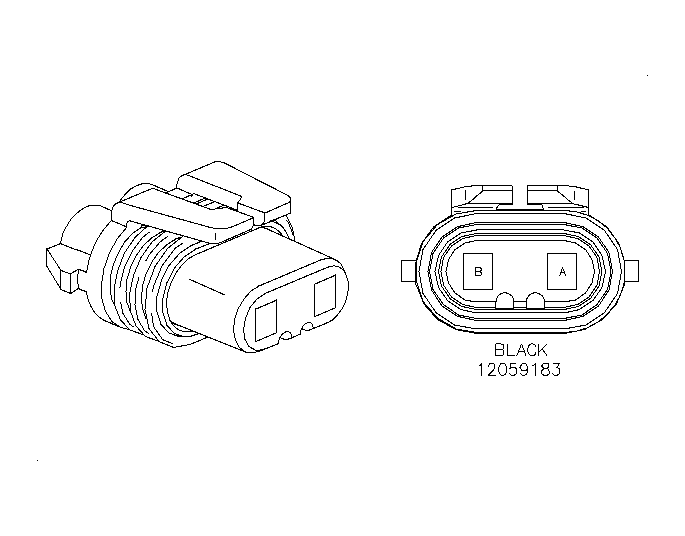

Connector Part Information		Left 12059183 BLK
Pin	Wire Color	Circuit No.	Function
A	ORN	40	UHFB Headlamp Fuse - B+
B	PNK	1200	UHFB - HI Beam Control

Lighting Systems

Courtesy of GENERAL MOTORS CORP.

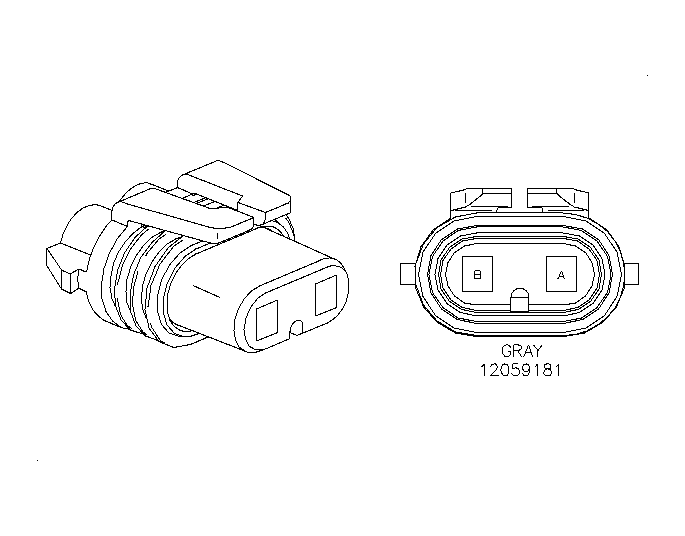

Connector Part Information		Left 12059181 BLK
Pin	Wire Color	Circuit No.	Function
A	ORN	40	UHFB - Left Headlamp Fuse - B+
B	DK BLU	1201	UHFB - Low Beam Control

Lighting Systems

Courtesy of GENERAL MOTORS CORP.

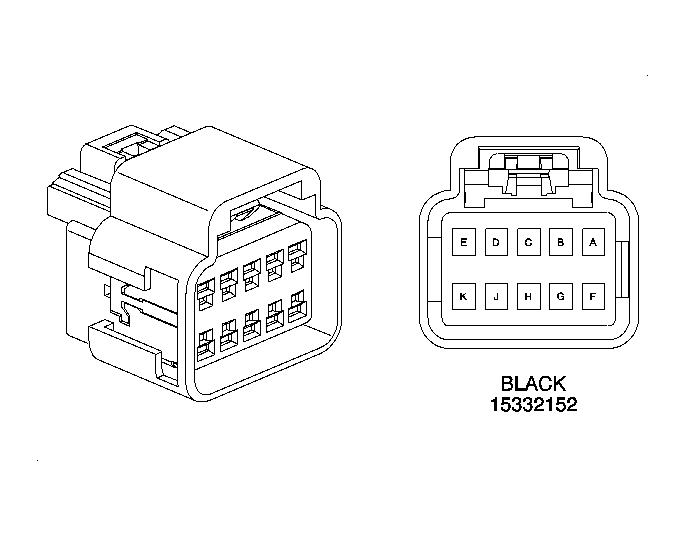

Connector Part Information		15332152 NAT
Pin	Wire Color	Circuit No.	Function
A	YEL	18	I/P - Tail Lamp - Left
B	BRN	9	I/P - Tail Lamp - Left
C	LT BLU	1717	Hazard Switch
D	PPL	16	I/P - Flasher Model
E	DK GRN	19	I/P - Tail Lamp - Right
F	DK BLU	1201	I/P - Tail Lamp - Right
G	PNK	1200	BCM - High Beam Switch - Right
H	PNK	1200	UHFB - High Beam Switch - Left
J	ORN	240	Park Lamp Fuse
K	BLK	350	I/P Splice Pack #2 Ground
