Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the defroster grille (1) by carefully prying upward to release the retainers.
  2. Disconnect the electrical connector from the ambient light sensor (2).
  3. Remove the ambient light sensor (2) from the defroster grille (1) by turning counterclockwise 1/4 turn.

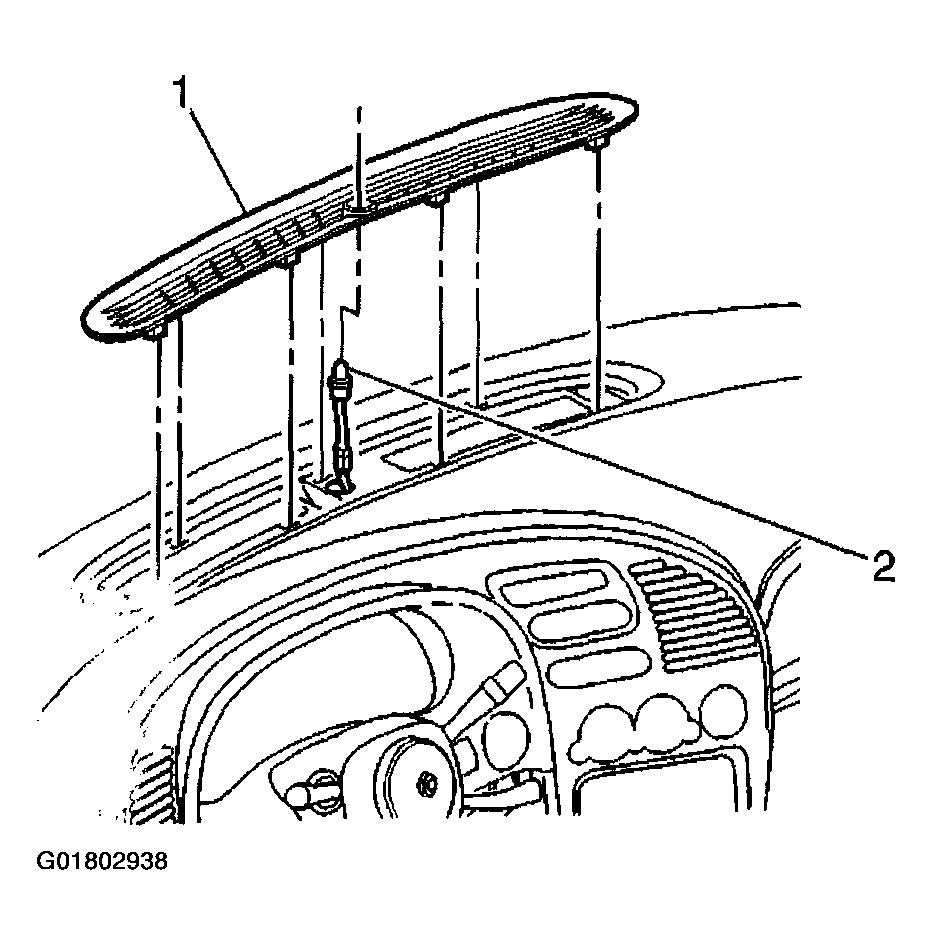

    Fig 1: Removing Ambient Light Sensor
    G01802938Courtesy of GENERAL MOTORS CORP.
