Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the headlamp (4) to the vehicle and connect the electrical connector.
  2. Press the headlamp rearward in order to engage the ball stud into the ball stud socket.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the headlamp fasteners (1, 2).

    Tighten

    Tighten the headlamp mounting fasteners (1, 2) to 6 N.m (53 lb in).

  4. Aim the headlamps. Refer to Headlamp Aiming  .

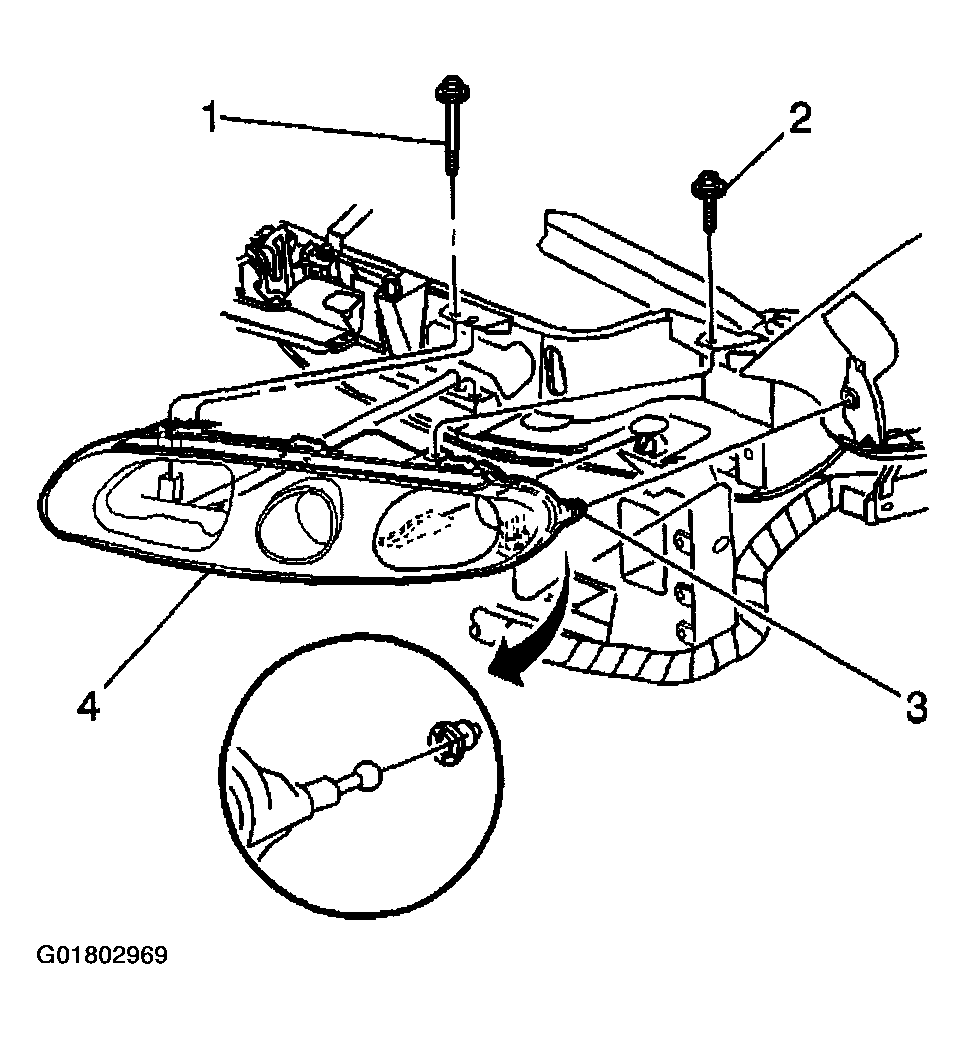

    Fig 1: Installing Headlamp
    G01802969Courtesy of GENERAL MOTORS CORP.
