Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the I/P dimmer switch to the air deflector.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fasteners in order to secure the I/P dimmer switch to the air deflector.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  3. Connect the electrical connector to the I/P dimmer switch.
  4. Install the I/P dimmer switch knob.

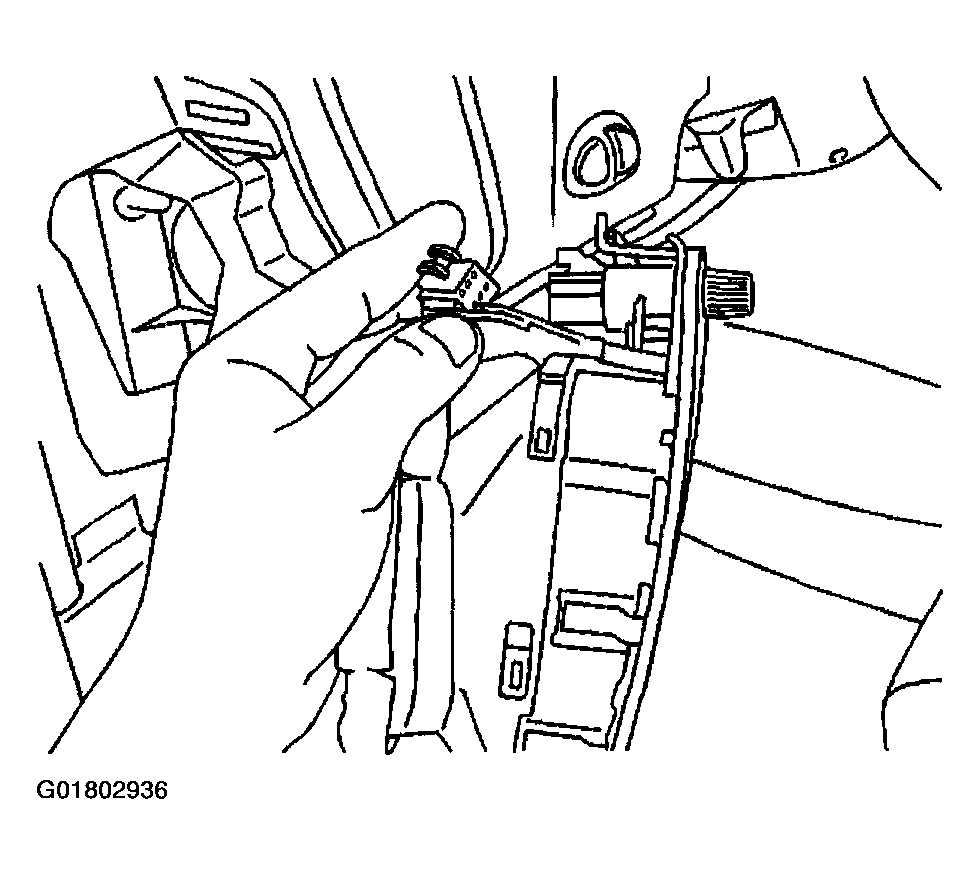

    Fig 1: Installing I/P Dimmer Switch
    G01802936Courtesy of GENERAL MOTORS CORP.
  5. Position the left air deflector to the opening in the I/P cluster trim plate.
  6. Push inward in order to engage the clips securing the air deflector to the I/P cluster trim plate.
  7. Install the left I/P endcap. Refer to INSTRUMENT PANEL (IP) OUTER TRIM COVER REPLACEMENT .

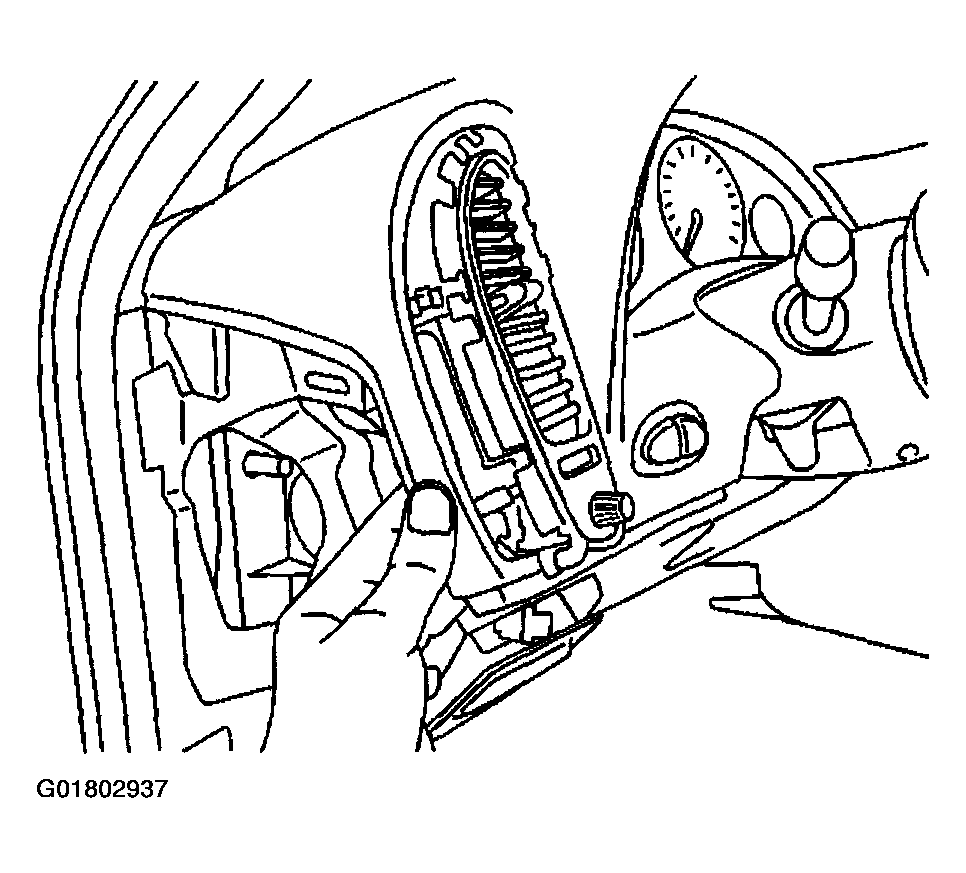

    Fig 2: Installing Left Air Deflector
    G01802937Courtesy of GENERAL MOTORS CORP.
