Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left I/P endcap. Refer to INSTRUMENT PANEL (IP) OUTER TRIM COVER REPLACEMENT .
  2. Remove the left air deflector. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - LEFT .

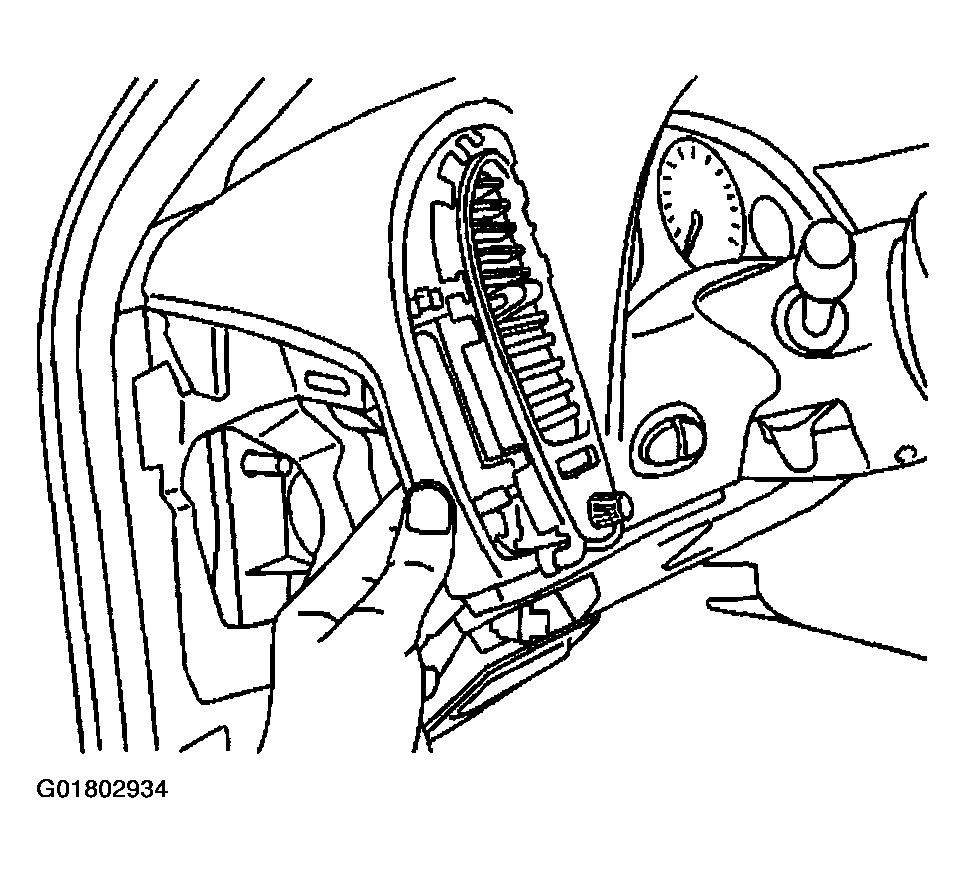

    Fig 1: Removing Left Air Deflector
    G01802934Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the I/P dimmer switch.
  4. Remove the I/P dimmer switch knob by pulling outward removing it from the switch.
  5. Remove the fasteners securing the I/P dimmer switch to the air deflector.
  6. Remove the I/P dimmer switch.

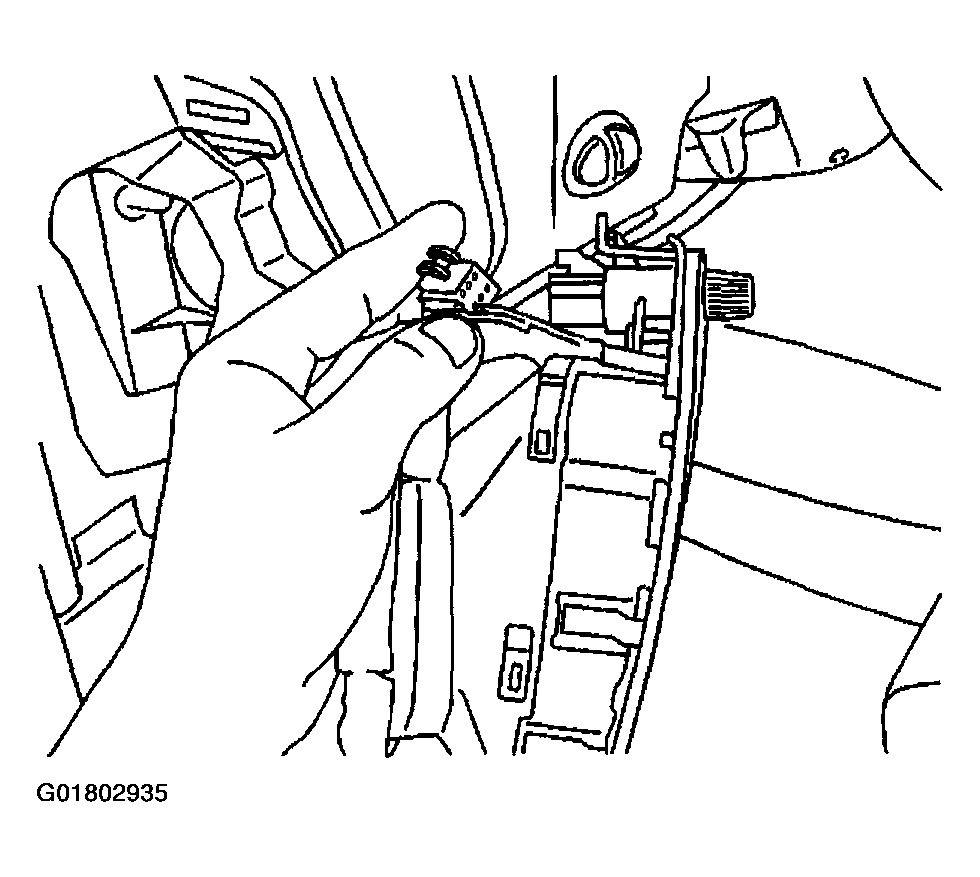

    Fig 2: Removing I/P Dimmer Switch
    G01802935Courtesy of GENERAL MOTORS CORP.
