Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

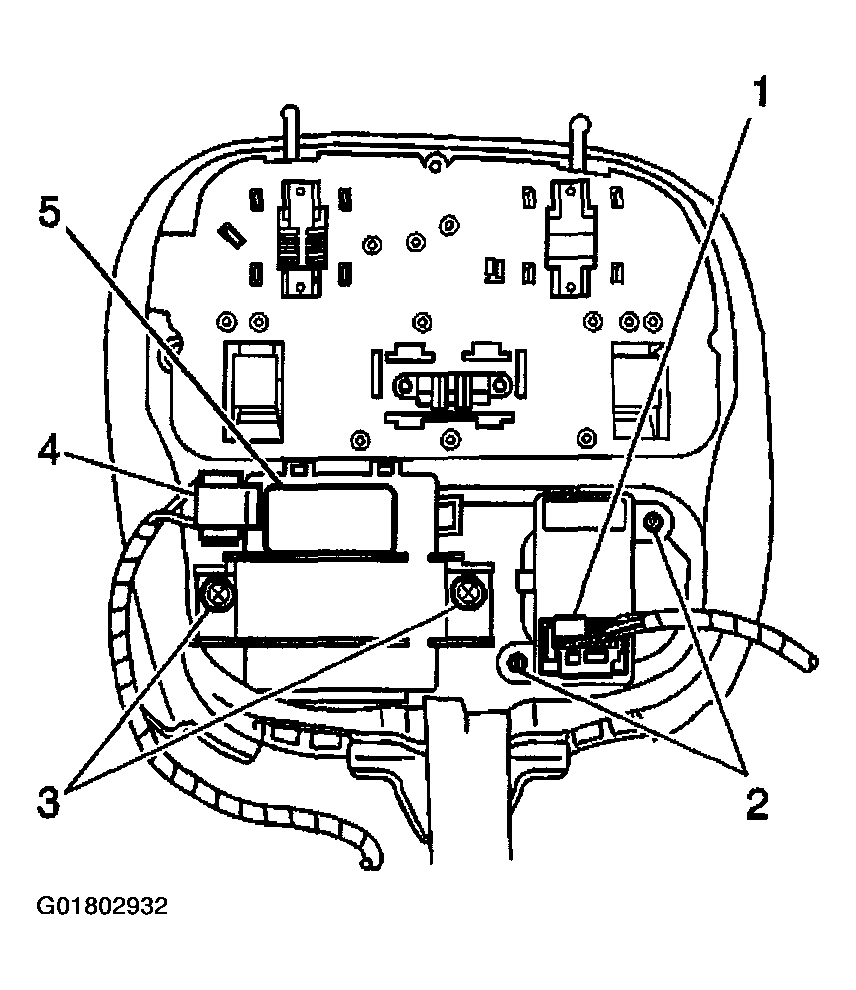

- Position the interior lamp switch to the opening in the overhead console.
- Install the fasteners in order to secure the switch to the overhead console.
- Connect the electrical connector (1) to the interior lamp switch.
- Install the overhead console into the opening in the headliner.
- Push in on the overhead console to engage the retainer clips securing the overhead console to the headliner.
