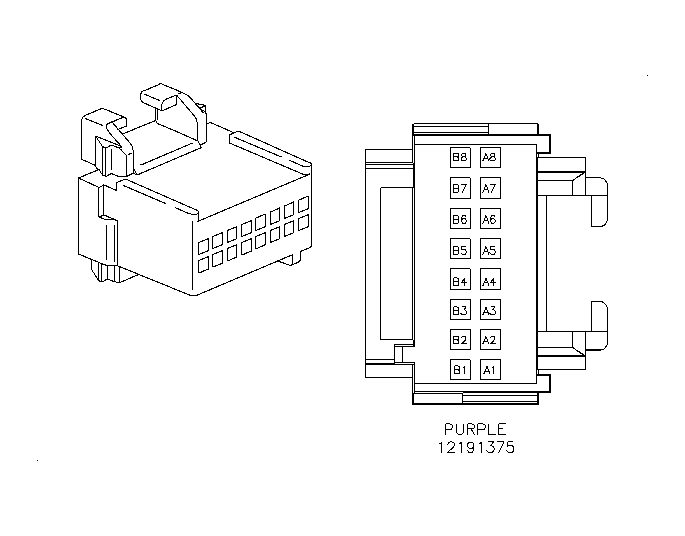

Body Control Module (BCM) Connector End View - J1
Body Control Module (BCM) - J1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1-A2 | - | - | Not Used |
| A3 | WHT | 94 | IPFB - Door Unlock Relay |
| A4 | LT BLU | 195 | IPFB - Door Lock Relay |
| A5 | GRA | 382 | IPFB - Decklid/Liftgate Release |
| A6 | TAN | 694 | IPFB - Driver Door Lock Motor |
| A7-A8 | - | - | Not Used |
| B1-B8 | - | - | Not Used |
