Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove front air deflector. Remove Connector Position Assurance (CPA) clip from front end discriminating sensor connector and disconnect connector. See Fig 1. Remove front end discriminating sensor mounting bolt. Remove front end discriminating sensor.
  3. To install, reverse removal procedure. Tighten front end discriminating sensor mounting bolt to specification. See TORQUE SPECIFICATIONS .

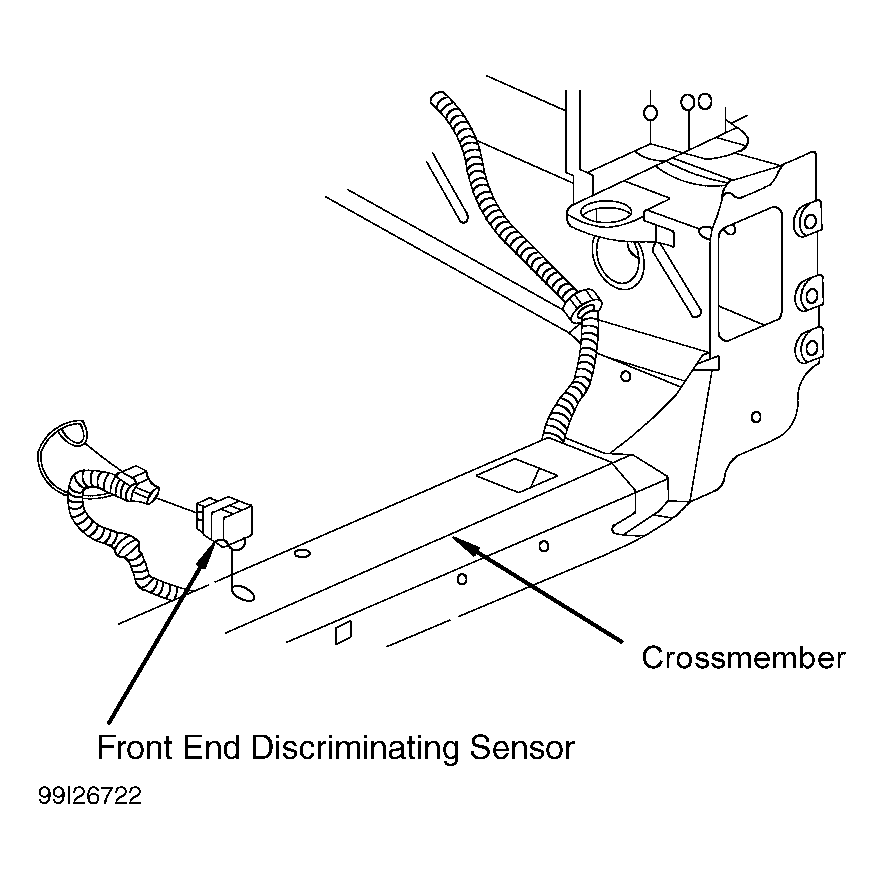

Fig 1: Identifying Front End Discriminating Sensor
G99I26722Courtesy of GENERAL MOTORS CORP.
