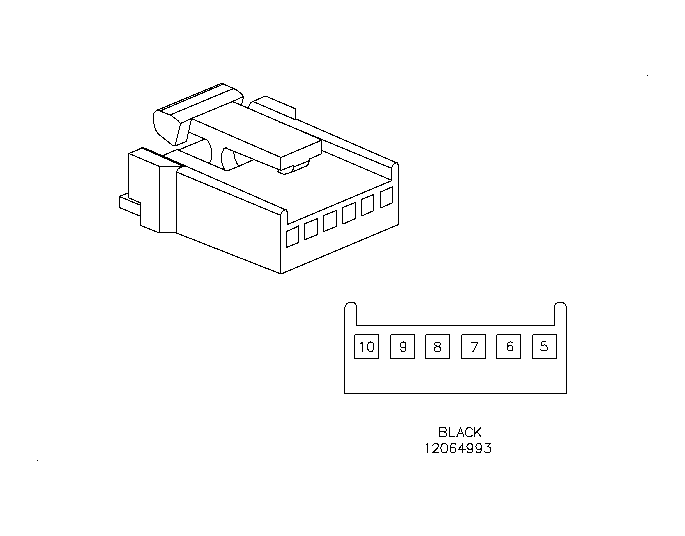

Cruise Control Module Connector End View
Cruise Control Module
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 5 |
PK |
339 |
Ignition |
| 6 |
L BU |
1888 |
Clutch Input |
| 7 |
BN |
86 |
Brake Switch Input |
| 8 |
PK |
1886 |
Move Signal |
| 9 |
BK |
350 |
Ground |
| 10 |
L GN |
1887 |
Move Direction Signal |
