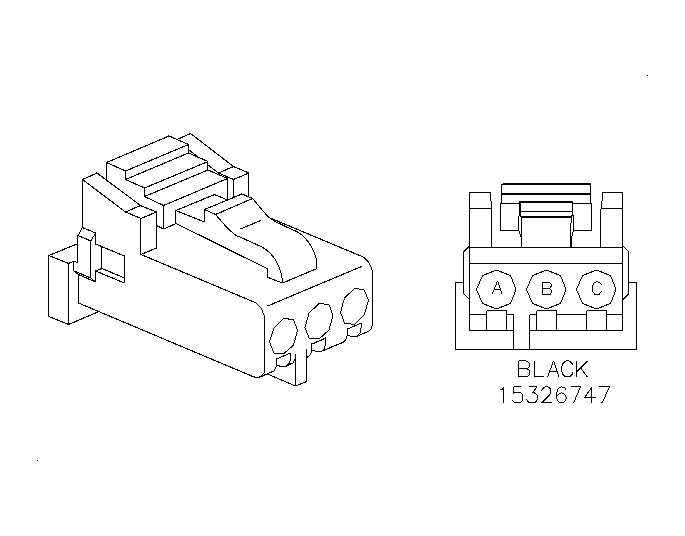

Passlock Sensor Connector End View
Passlock Sensor
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
15326747
Black
Pin
Wire Color
Circuit No.
Function
A
WHT
1459
BCM - Power
B
BLK
1835
BCM - Return
C
YEL
1836
BCM - Data
Courtesy of GENERAL MOTORS CORP.
