Entertainment Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cockpit Component View
GM698492Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror -Driver
2 Fog Lamp/Rear Compartment Lid Release Switch (Domestic), Fog Lamp Switch (Export)
3 Dimmer Switch
4 Dimmer/Head Up Display (HUD) Switch
5 Instrument Panel Cluster (IPC)
6 Vanity Mirror Lamp -Left
7 Driver Information Center (DIC) Switch -Right
8 Hazard Switch
9 Radio
10 HVAC Control Module
11 Vanity Mirror Lamp -Right
12 Door Switch -Passenger
13 Outside Rearview Mirror -Passenger
14 Footwell Courtesy Lamp -Right
15 Fuel Door Lock Release Switch (Domestic), Rear Compartment Lid/Fuel Door Lock Release Switch (Export)
16 Traction/Suspension Control Switch
17 Auxiliary Power Outlet Connector
18 Cigar Lighter
19 Horn Switch
20 Seat Control Module (SCM) -Driver (W/Memory Seats), Seat Relay Center -Driver (W/O Memory Seats)
21 Seat Adjuster Switch -Driver
22 Footwell Courtesy Lamp -Left
23 Door Switch -Driver

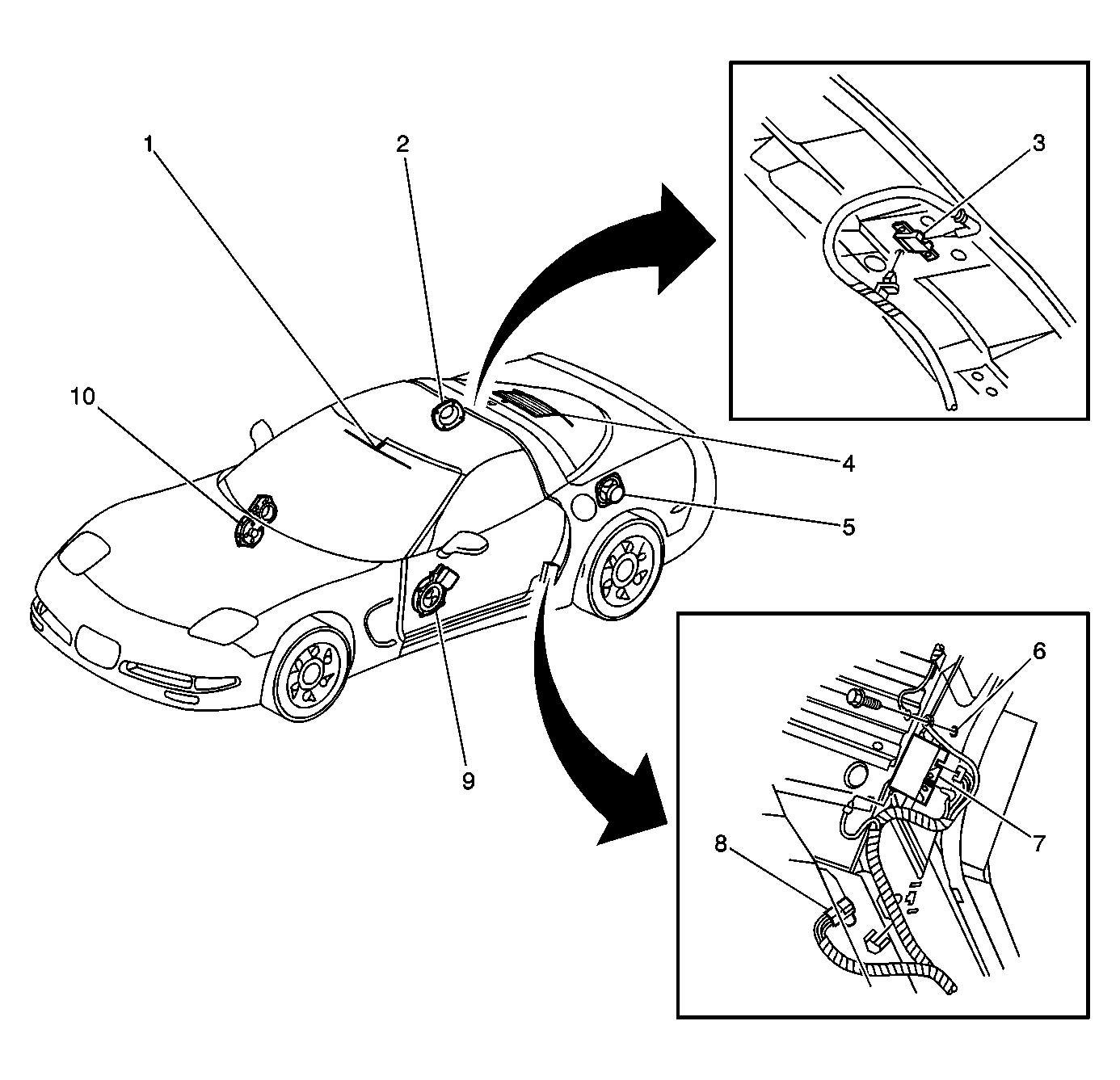

Fig 2: Speakers And Antennas Component View
GM698571Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Window Antenna
2 Speaker -RR
3 Antenna Buffer
4 Rear Window Antenna
5 Speaker -LR
6 G205
7 Radio Antenna Module (Coupe)
8 C301
9 Speaker -LF Door
10 Speaker -RF Door
Fig 3: Under Side Of The Dash Component View - Left
GM698493Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Stop Lamp Switch C1
2 Stop Lamp Switch C3
3 C213
4 Bose Signal Processor
5 Accelerator Pedal Position (APP) Sensor
6 Accelerator Pedal
7 Brake Pedal
8 Steering Wheel Position Sensor
9 Clutch Pedal
10 Clutch Pedal Start Switch
11 Clutch Pedal Position Switch
12 Stop Lamp Switch
13 Stop Lamp Switch Connector C2

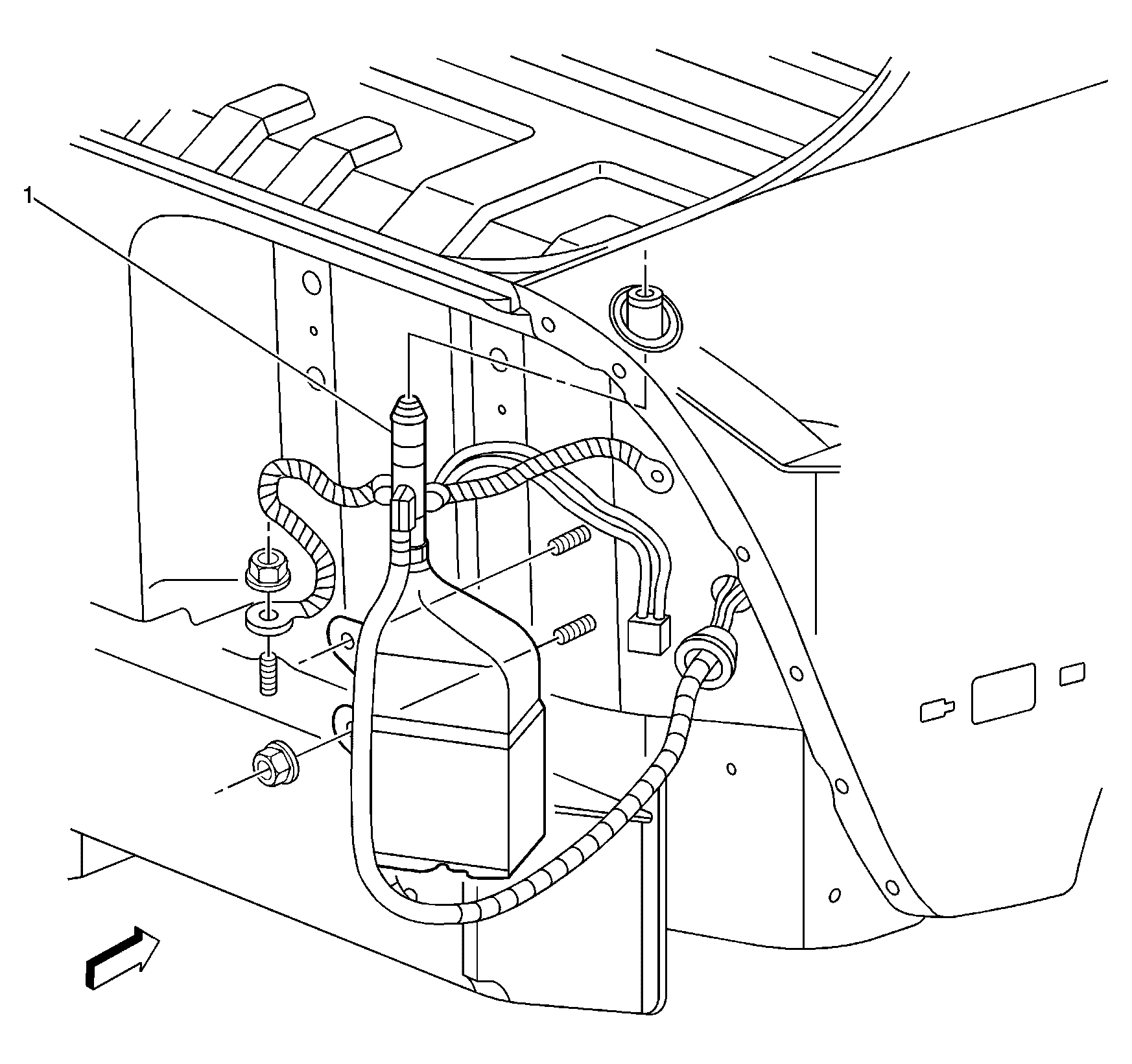

Fig 4: Rear Of The Vehicle Component View
GM901378Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Power Antenna (Convertible)
Fig 5: Luggage Compartment Component View
GM901381Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Suspension Control (ESC) Module
2 Rear Compartment Courtesy Lamp - Left
3 Remote Playback Device - CD Changer
4 Rear Compartment Courtesy Lamp - Right
5 Rear Compartment Lid Ajar Switch
6 Rear Compartment Lid Latch (Hardtop/Convertible)
