Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor kick -up panel. Refer to Kick -Up Panel Replacement - Front Floor in Interior Trim.
  2. Remove the cover from theinstrument panel (IP) electrical center.

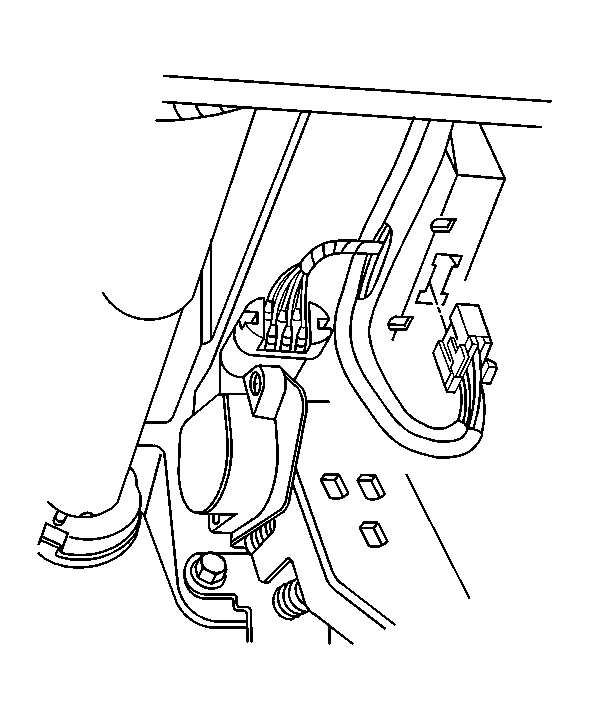

    3. Fig 1: Electrical/Audio Connector At Bose® Signal Processing Module
    GM65118Courtesy of GENERAL MOTORS CORP.
  3. Remove the RDO/ANT MiniFuse® #24 from the IP electrical center.
  4. Remove the IP left lower insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
  5. Disconnect the electrical/audio connector from the Bose® signal processing module.

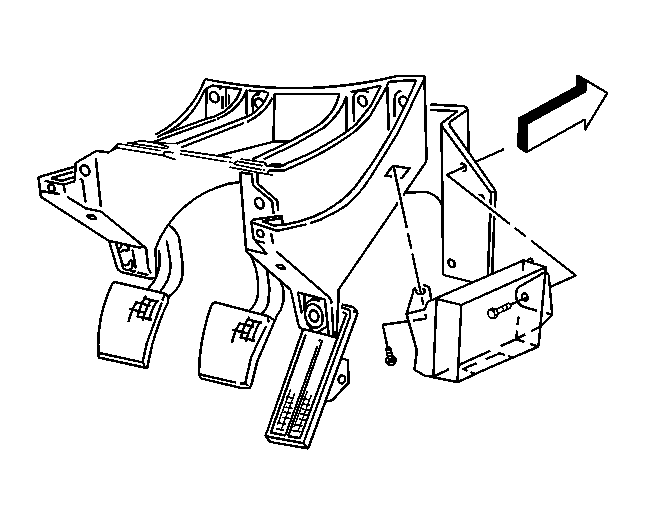

    6. Fig 2: Signal Processing Module At Steering Column Bracket
    GM65115Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The signal processing module is only held in place by retaining bolts. Be sure to support the signal processor upon removal of the bolts.
  6. Remove the bolts retaining the Bose® signal processor to the steering column bracket.
  7. Remove the signal processing module.
