Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

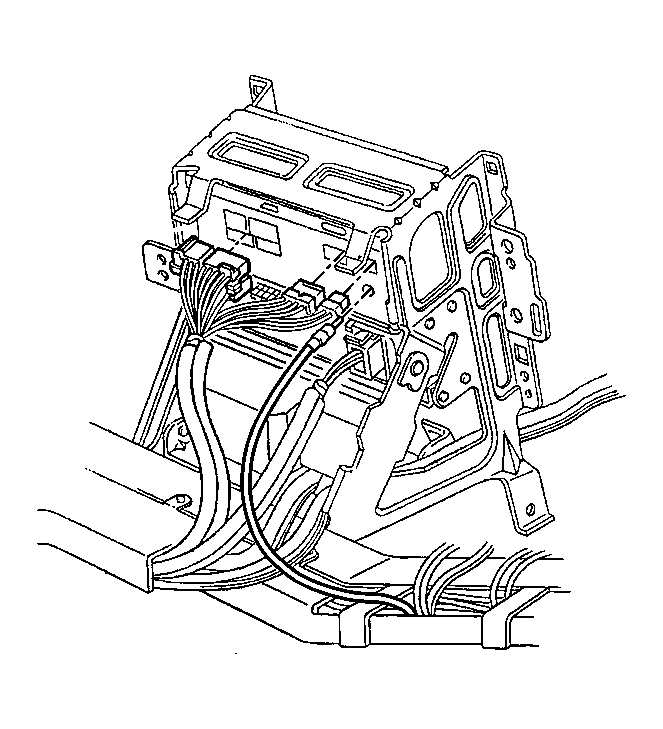

Fig 1: Electrical/Audio And Coaxial Cable Connectors At Radio Control

Courtesy of GENERAL MOTORS CORP.

Connect the electrical/audio and coaxial cable connectors to the radio control.

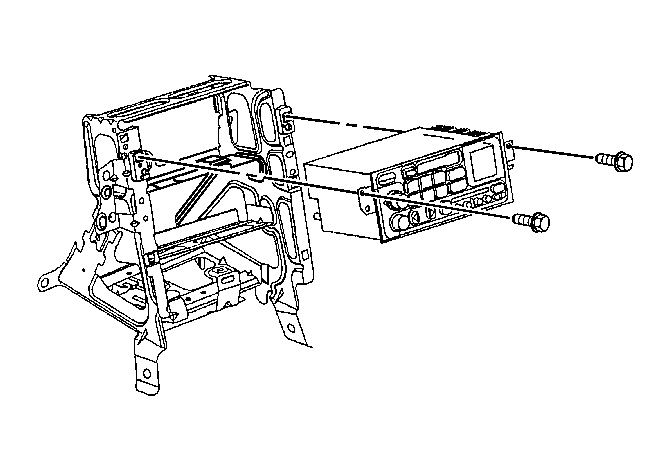

Fig 2: Radio Control To Bracket Alignment

Courtesy of GENERAL MOTORS CORP.

Install the radio control into position in the I/P center support bracket.
Align the radio control locator tab into the center support bracket locator hole.

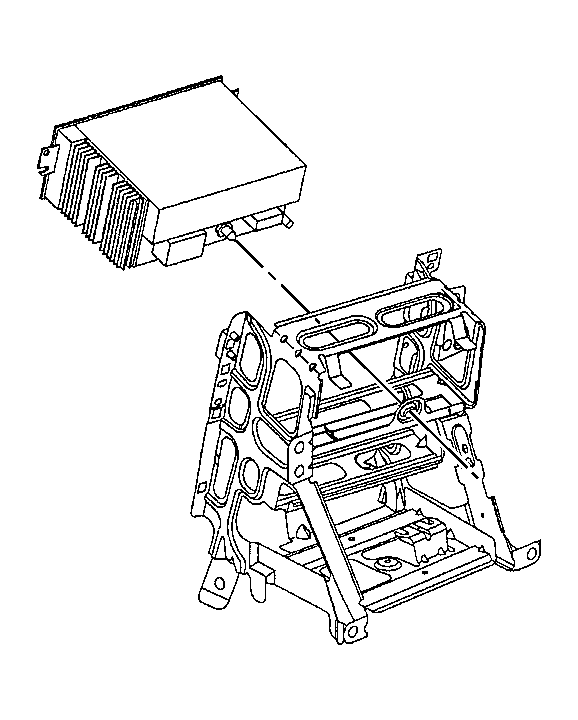

Fig 3: Radio Control & Center Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the radio control retaining screws.
Tighten: Tighten the radio control retaining screws to 2.5 N.m (22 lb in).
Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gauges and Console.
Install the console. Refer to Console Replacement in Instrument Panel, Gauges and Console.
Install the RDO/CD MiniFuse® #5 to the I/P electrical center.
Install the cover to the I/P electrical center.
Install the front floor kick -up panel. Refer to Kick -Up Panel Replacement - Front Floor in Interior Trim.
