Transaxle Control Module (TCM) - J1

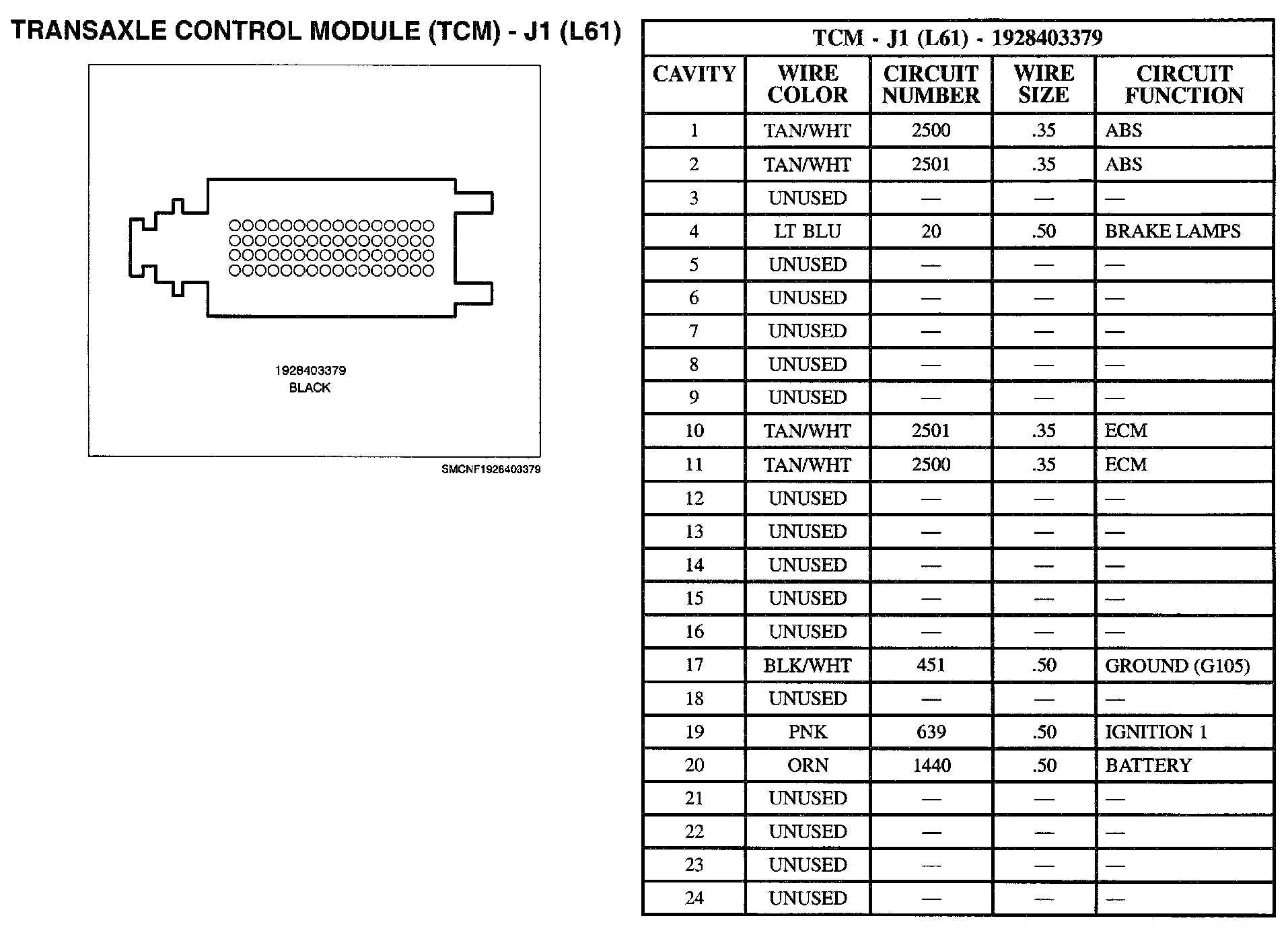

Transaxle Control Module (TCM) - J1 (L61) Part 1:

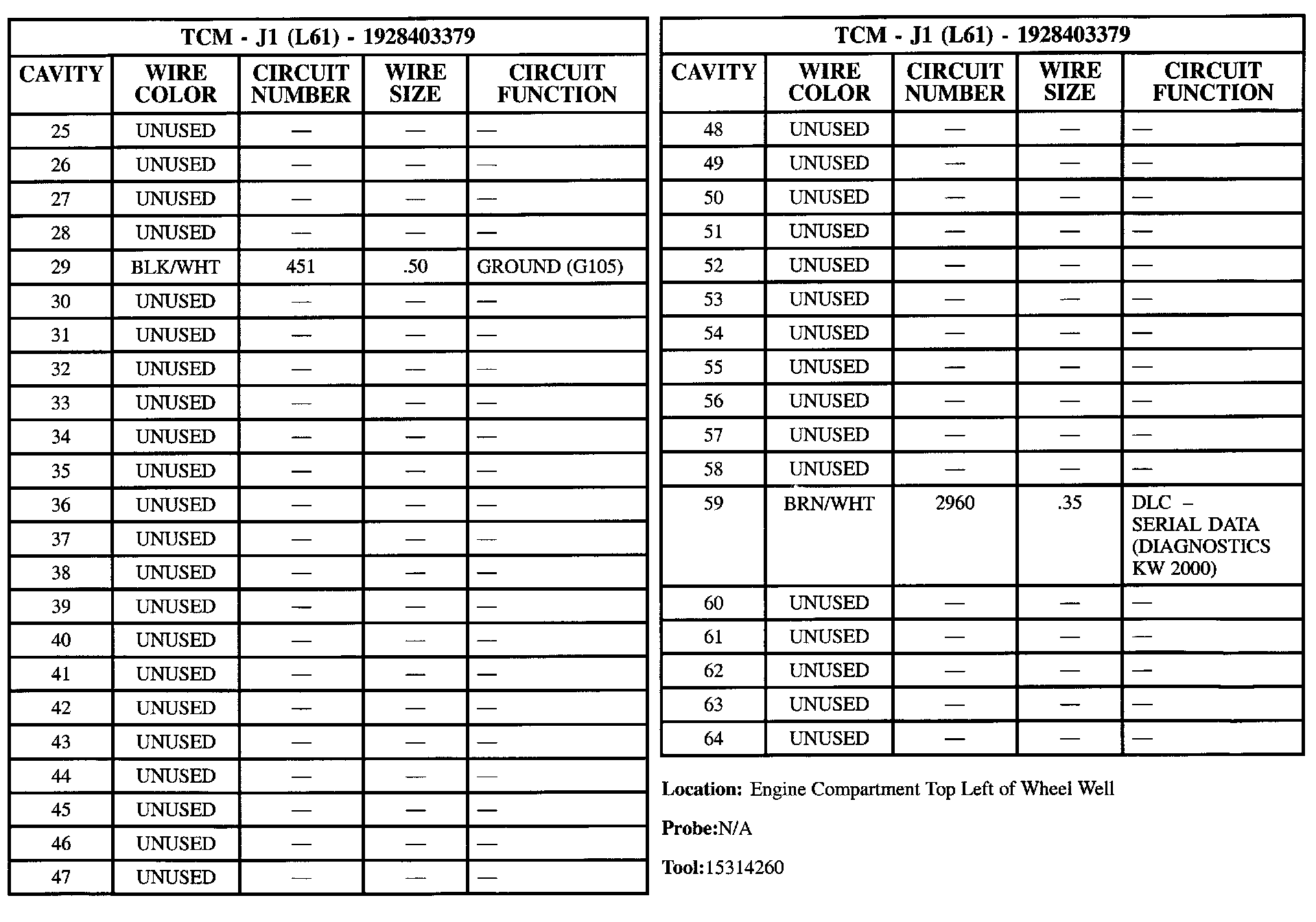

Transaxle Control Module (TCM) - J1 (L61) Part 2:
