Information Bus: Diagrams

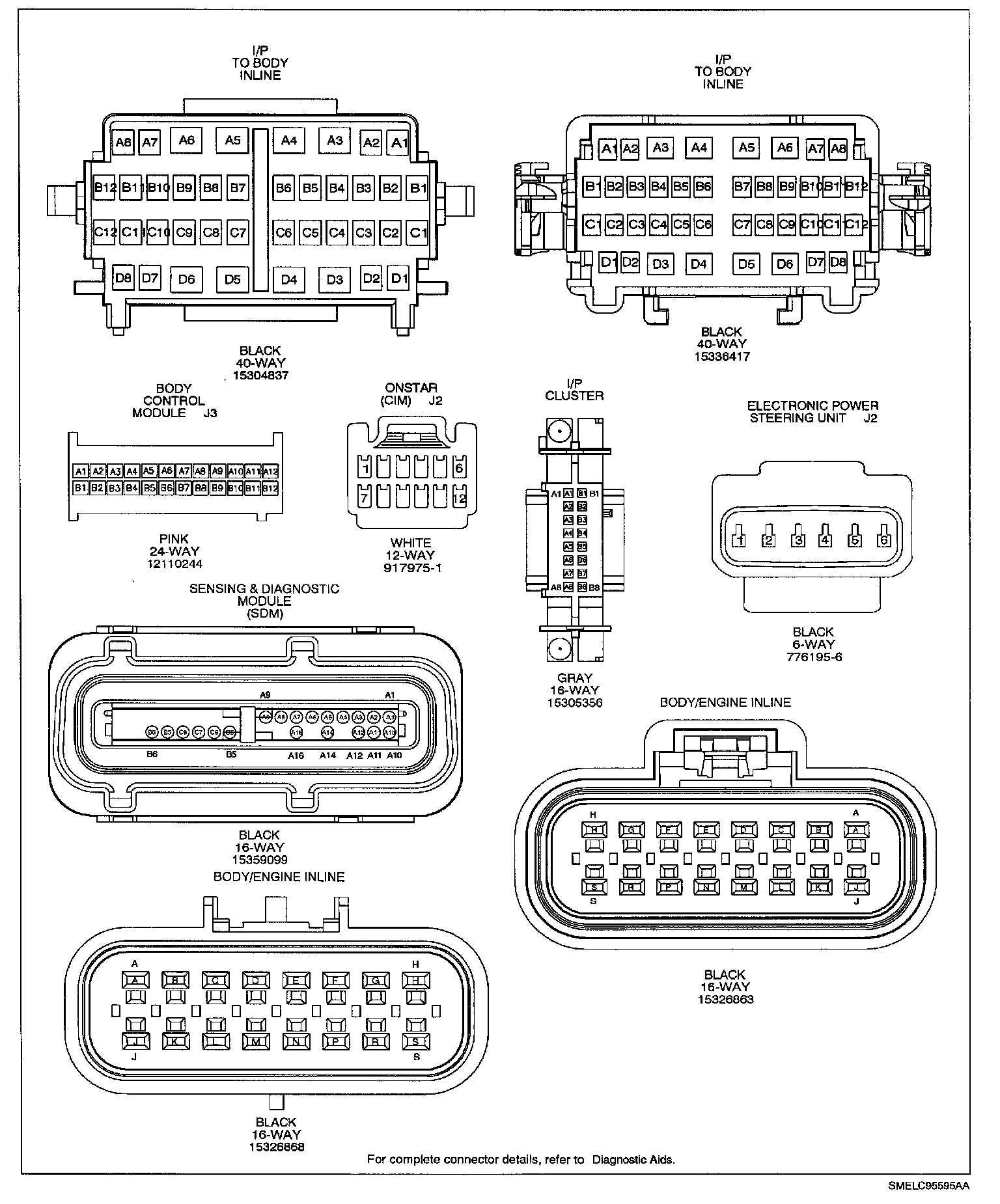

Serial Data Link Connector Face Views Part 1:

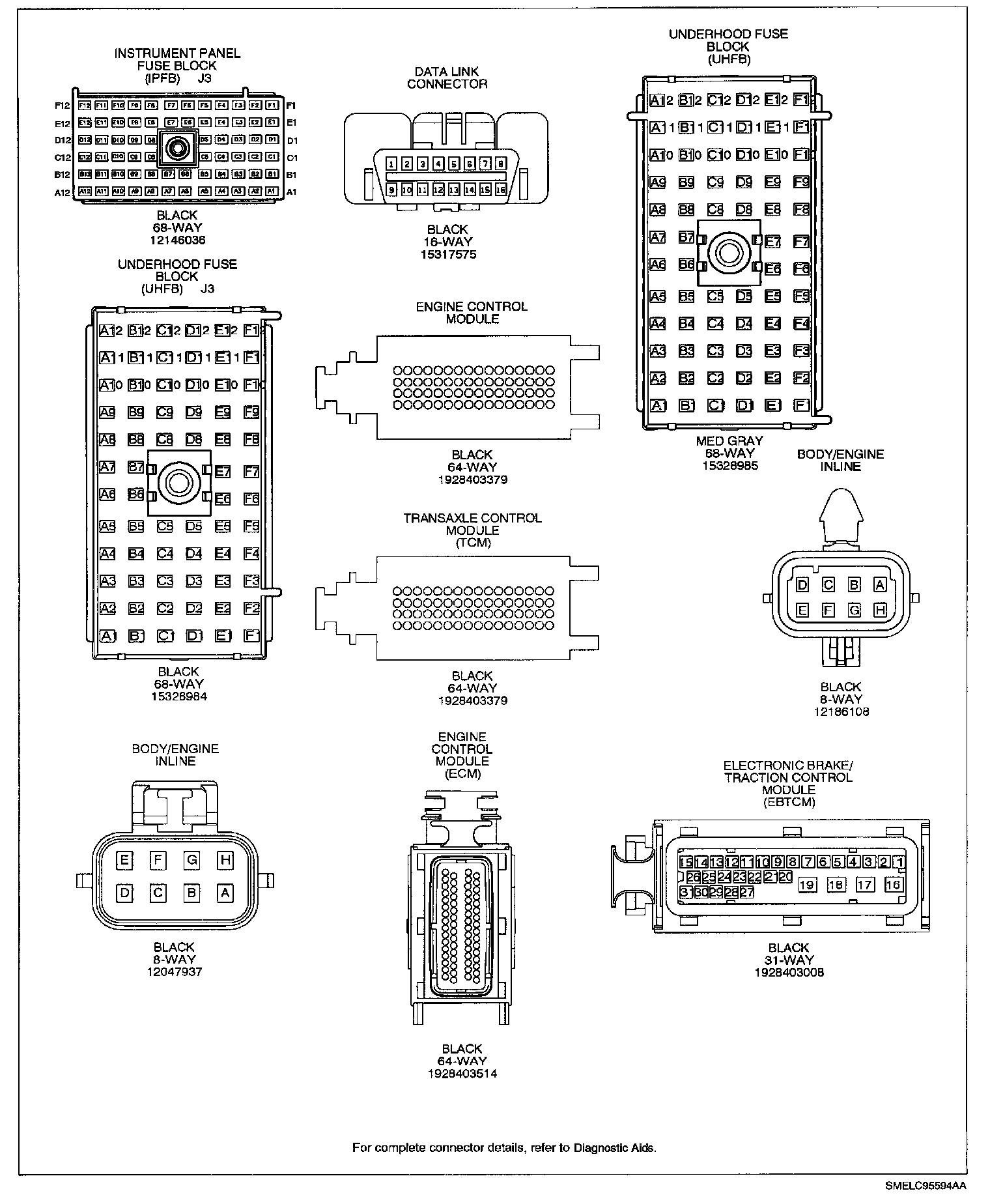

Serial Data Link Connector Face Views Part 2:



Serial Data Link Connector Face Views Part 3:
