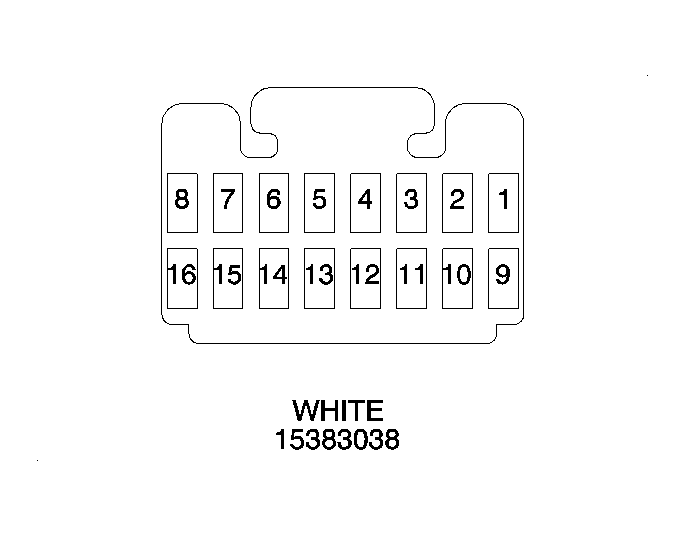

Vehicle Communication Interface Module (VCIM) Connector End View C1
Vehicle Communication Interface Module (VCIM) C1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| 1 | - | - | Not Used |
| 2 | BK/WH | 2517 | Keypad Red LED Signal |
| 3 | GY | 2516 | Keypad Green LED Signal |
| 4-5 | - | - | Not Used |
| 6 | D-BU | 2515 | Keypad Supply Voltage |
| 7 | BK | 650 | Ground |
| 8 | L-BU | 650 | Ground |
| 9-10 | - | - | Not Used |
| 11 | BN | 2514 | Keypad Signal |
| 12-14 | - | - | Not Used |
| 15 | OG | 1340 | Battery Positive Voltage |
| 16 | OG | 1340 | Battery Positive Voltage |
