Air Bag Control Module

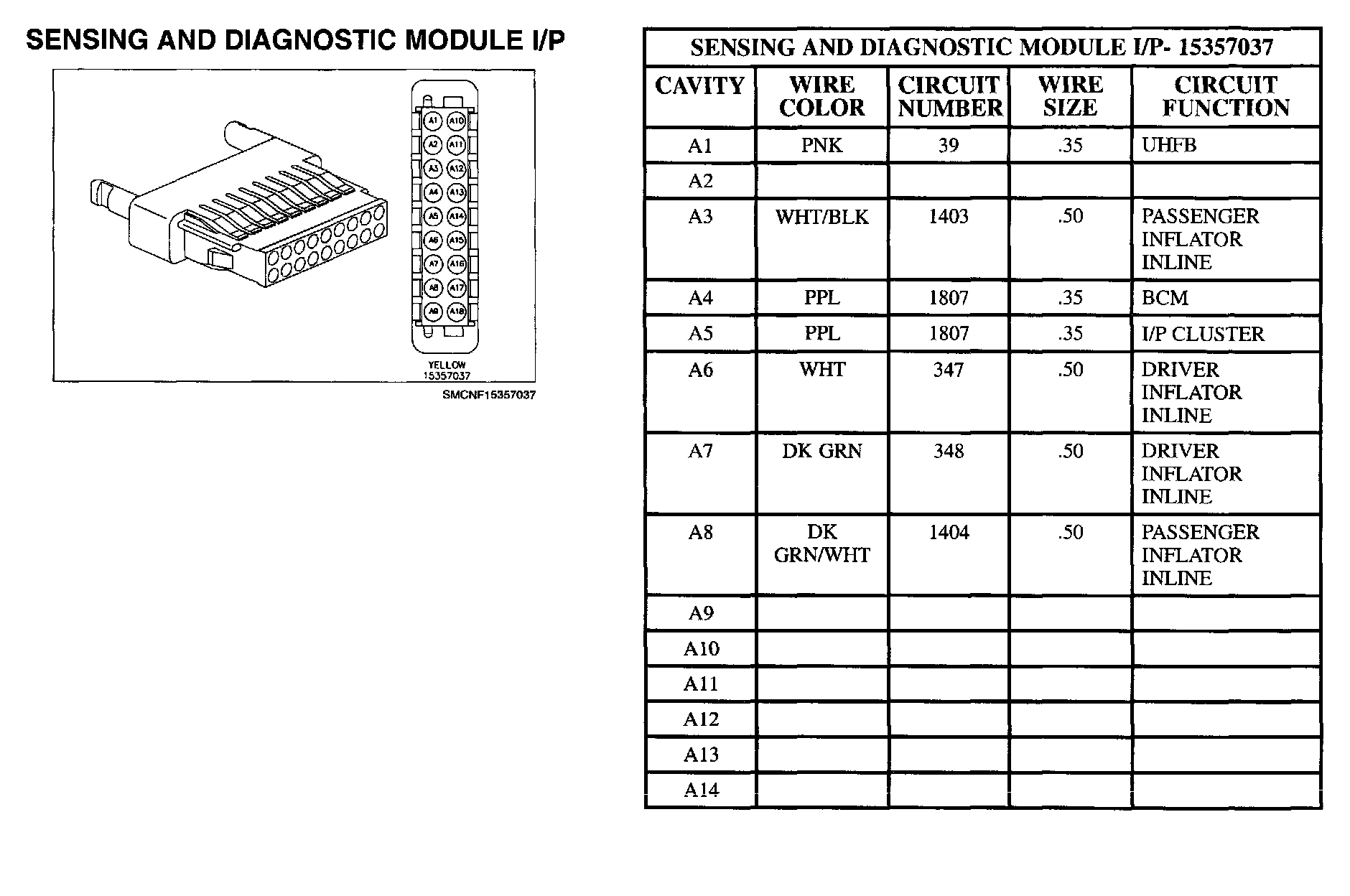

Sensing And Diagnostic Module I/P Part 1:
Sensing And Diagnostic Module I/P Part 2:
