System Specifications

SPECIFICATIONS

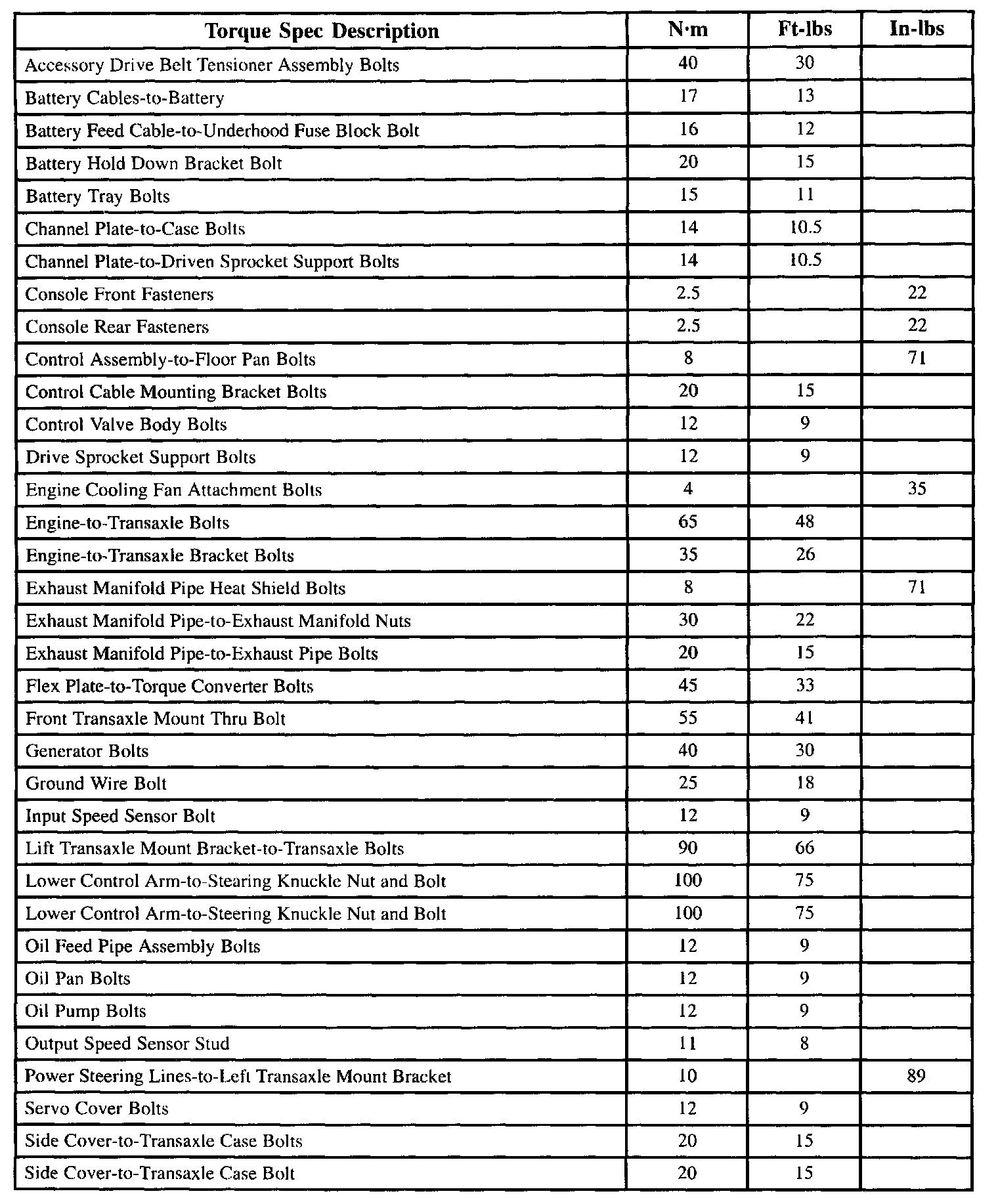

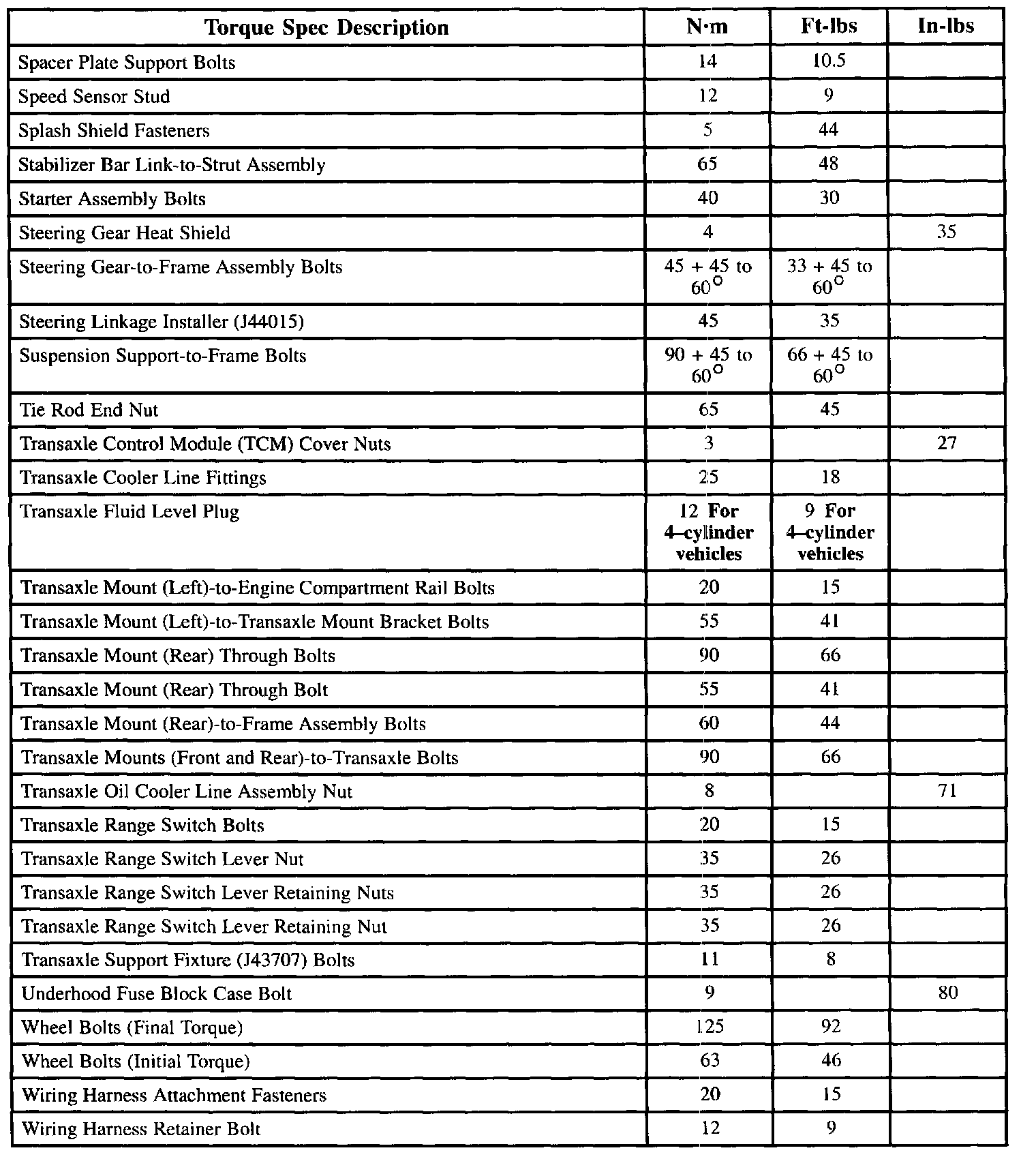

AUTOMATIC TRANSAXLE TORQUE SPECIFICATIONS





GEAR RATIOS





END PLAY SPECIFICATION CHART





REVERSE CLUTCH BACKING PLATE SPECIFICATION

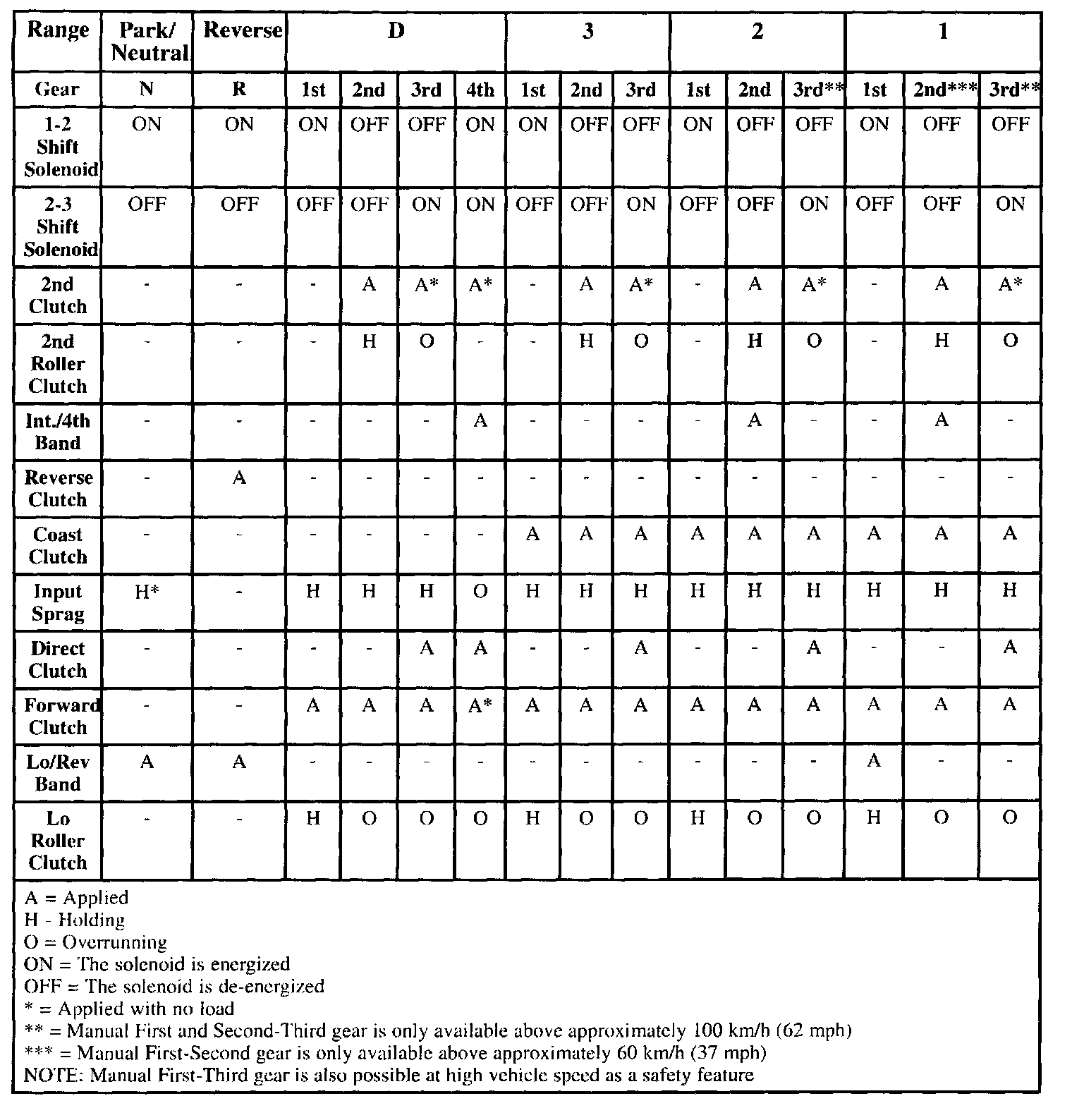

RANGE REFERENCE CHART





SHIFT SPEED CHART
