System Specifications

SPECIFICATIONS

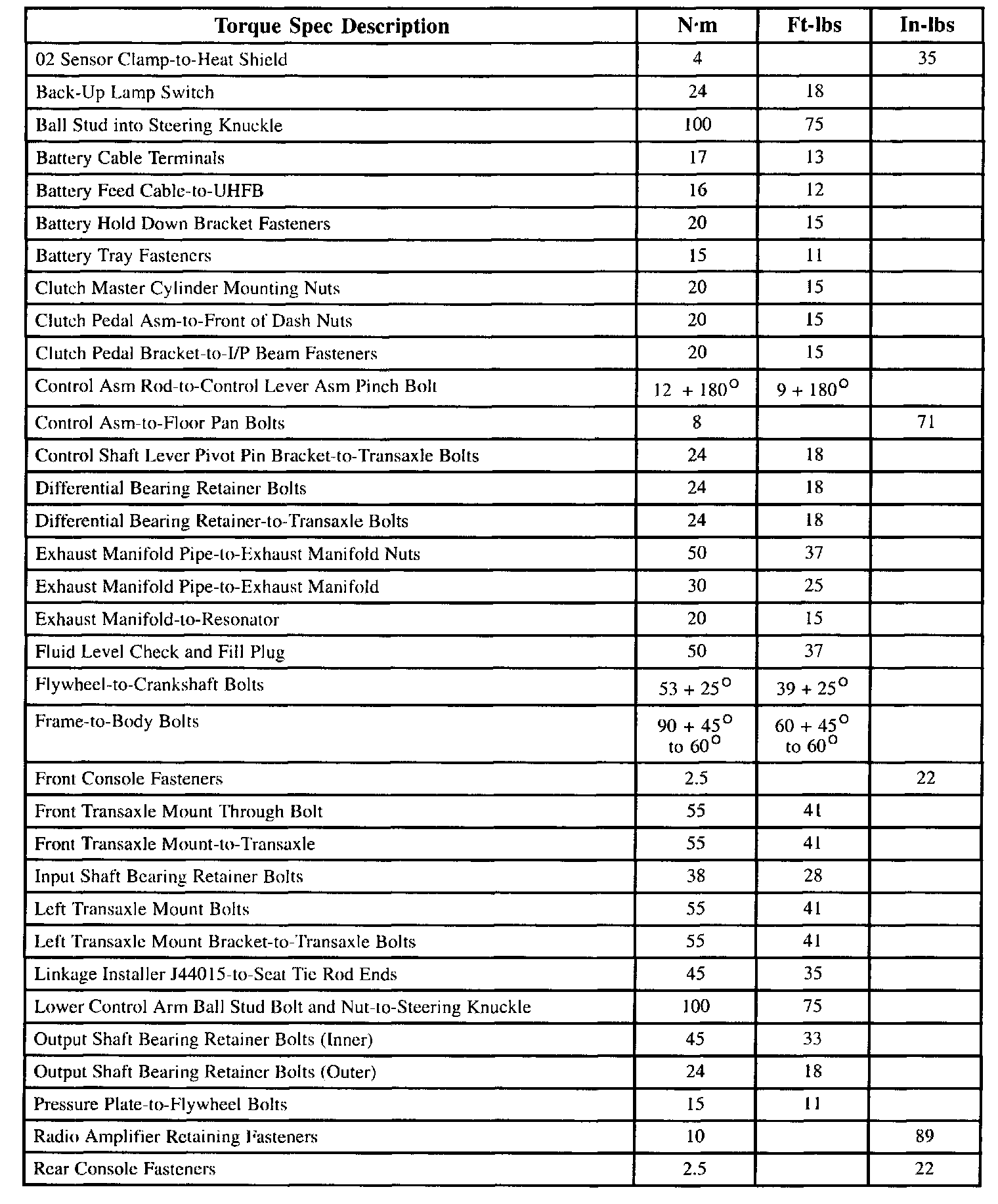

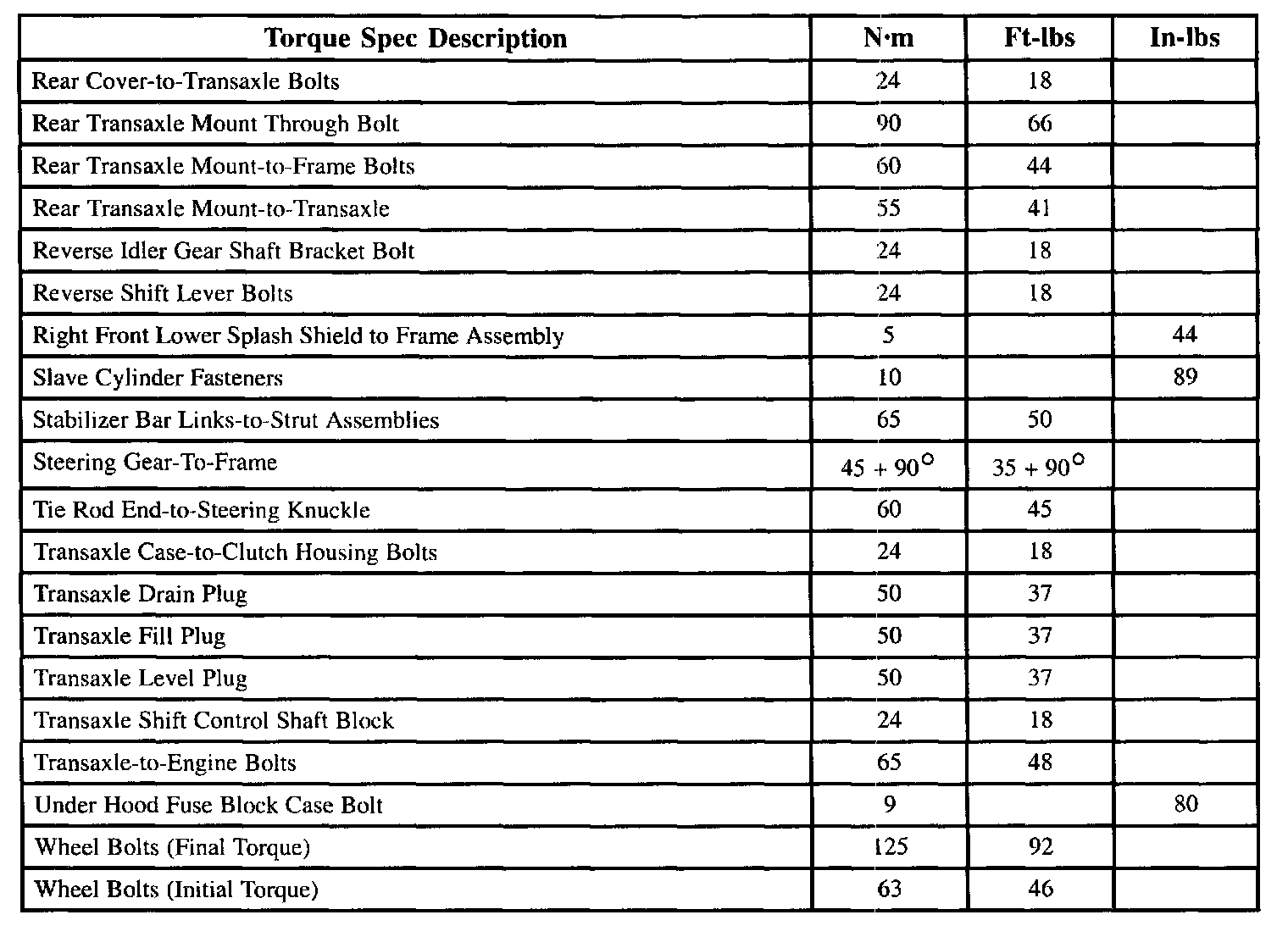

MANUAL TRANSAXLE TORQUE SPECIFICATIONS








GEAR TEETH COUNTS AND RATIOS

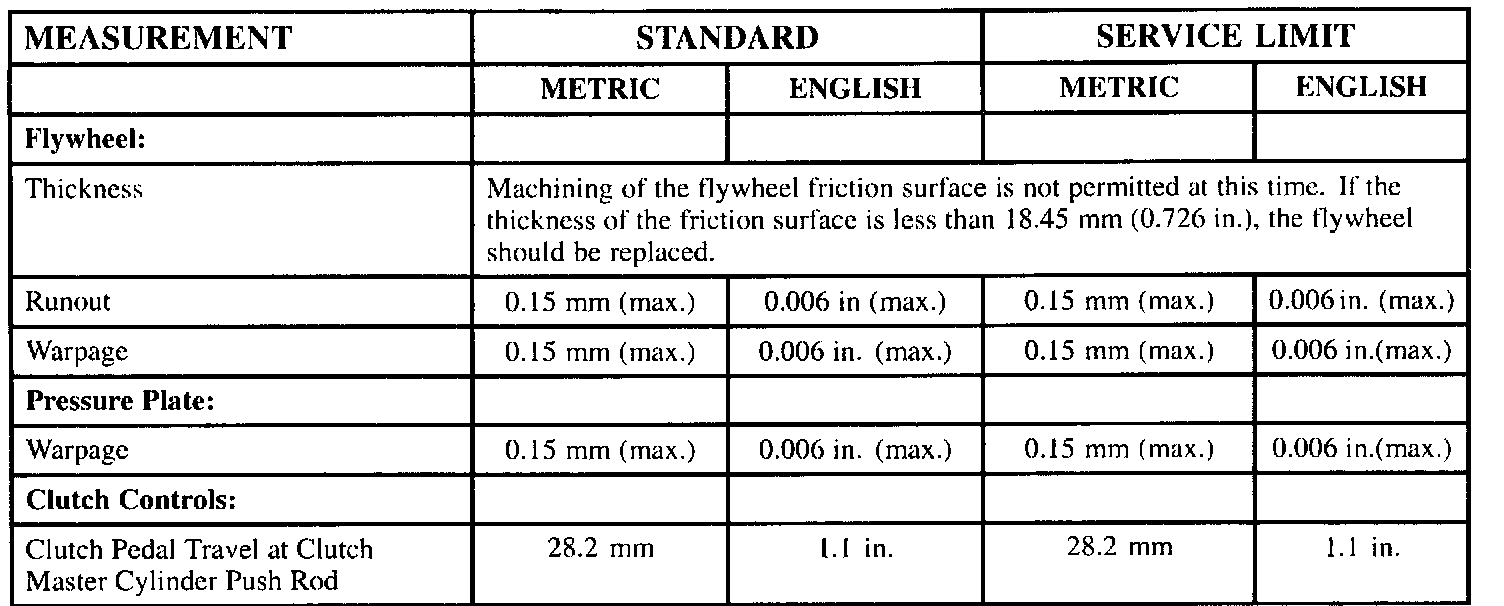

CLUTCH, CLUTCH CONTROLS AND FLYWHEEL





BLOCKING RING CLEARANCES





AXIAL PLAY SPECIFICATIONS
