Installation Procedure

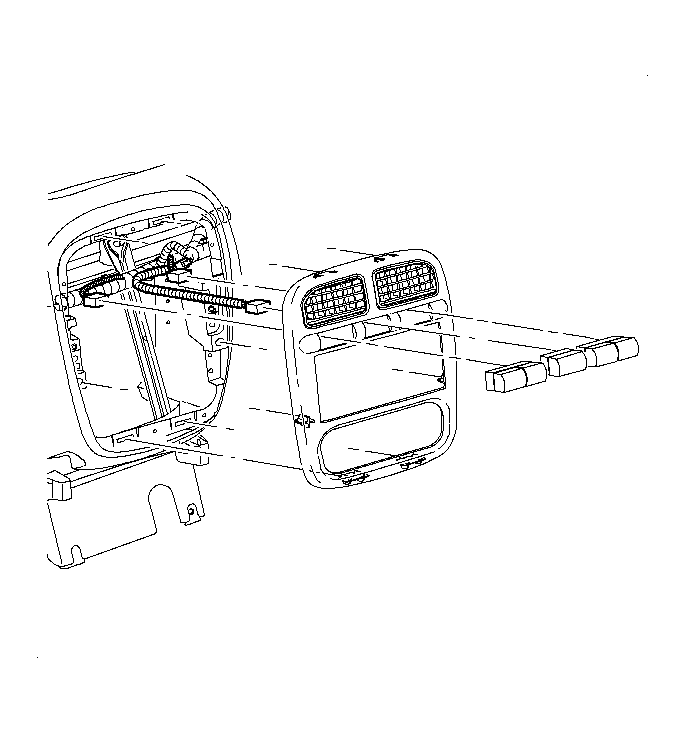

    Fig 1: Removing & Installing Instrument Panel Center Trim Plate
    GM896685Courtesy of GENERAL MOTORS CORP.
  1. Push the traction through the front of the center trim plate until the switch snaps into the lock tabs.
  2. Connect the traction control switch electrical connector.
  3. Push the center trim plate into the instrument panel to engage the retaining clips.
