Body Control System Schematics

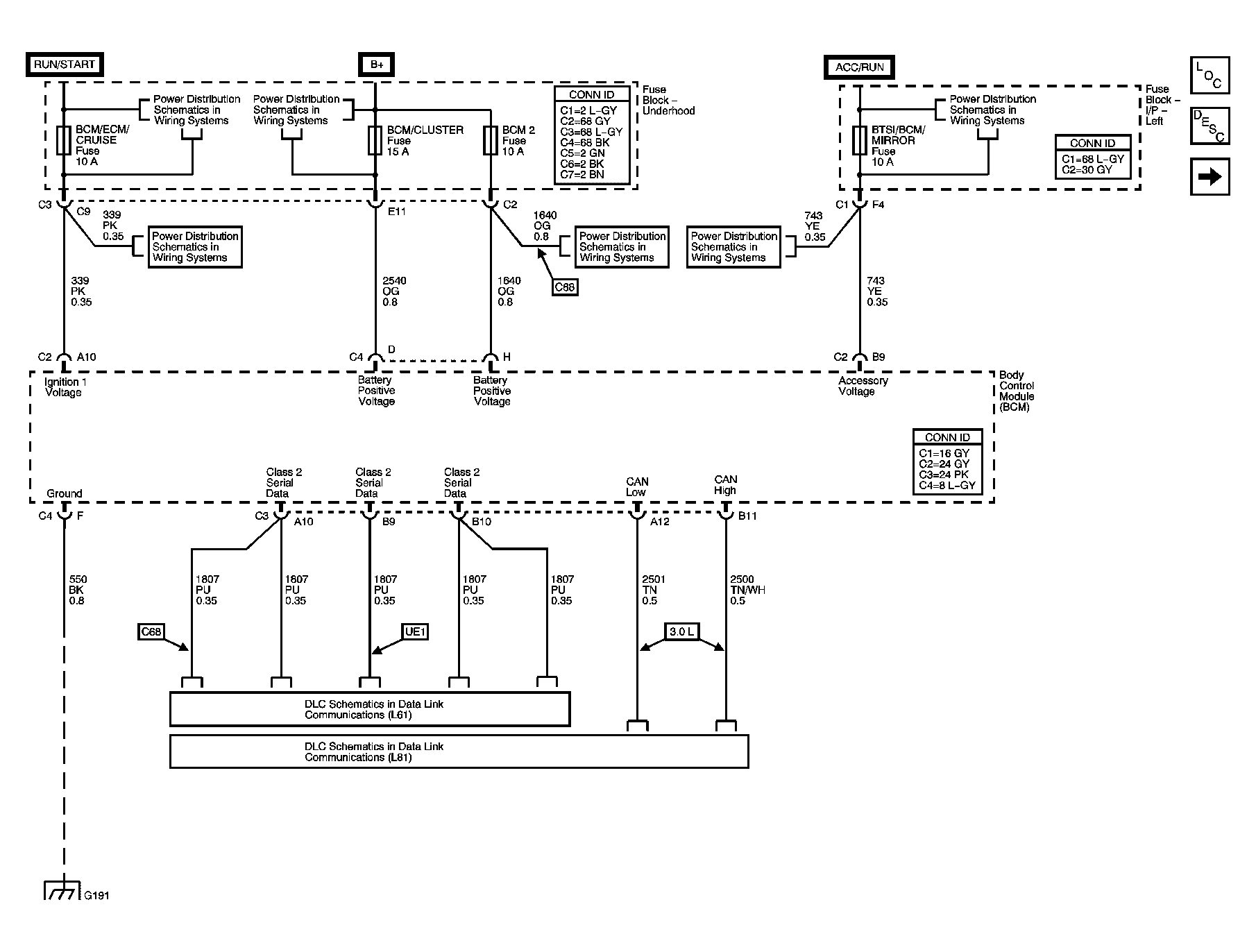

Fig 1: BCM Power, Ground, and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

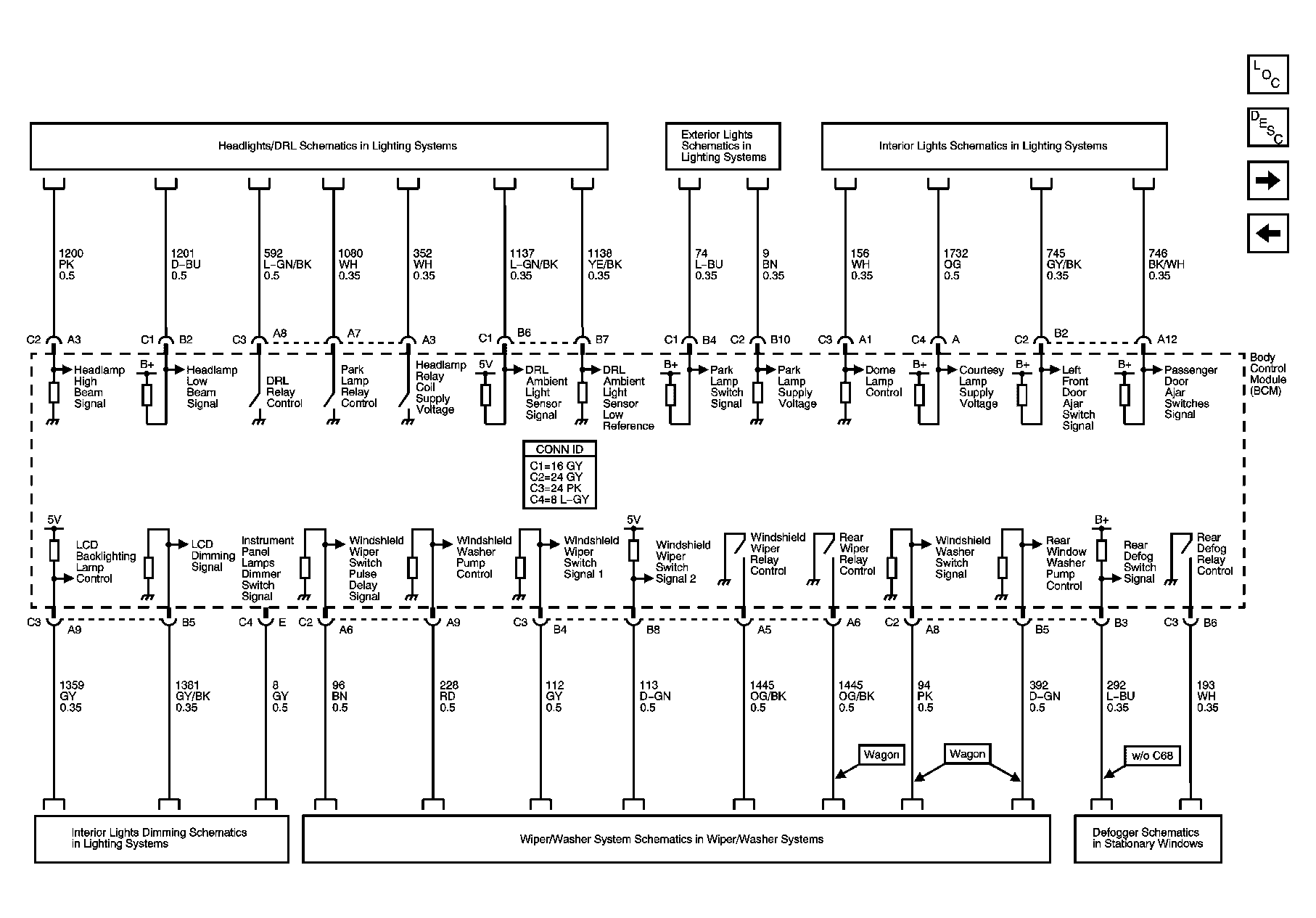

Fig 2: Lighting, Defogger, and Wipers References Schematic

Courtesy of GENERAL MOTORS CORP.

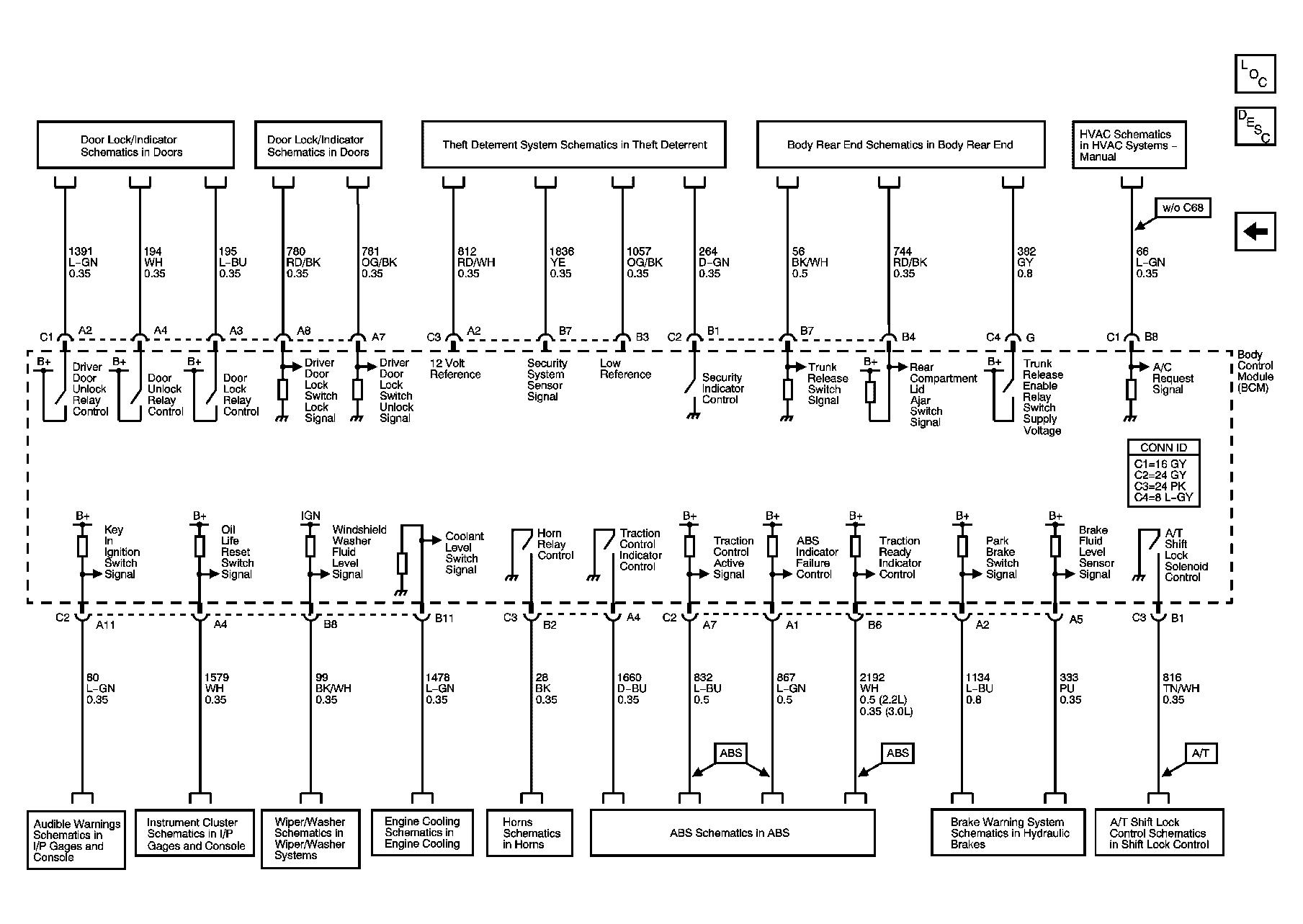

Fig 3: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
