Electronic Brake Control Module

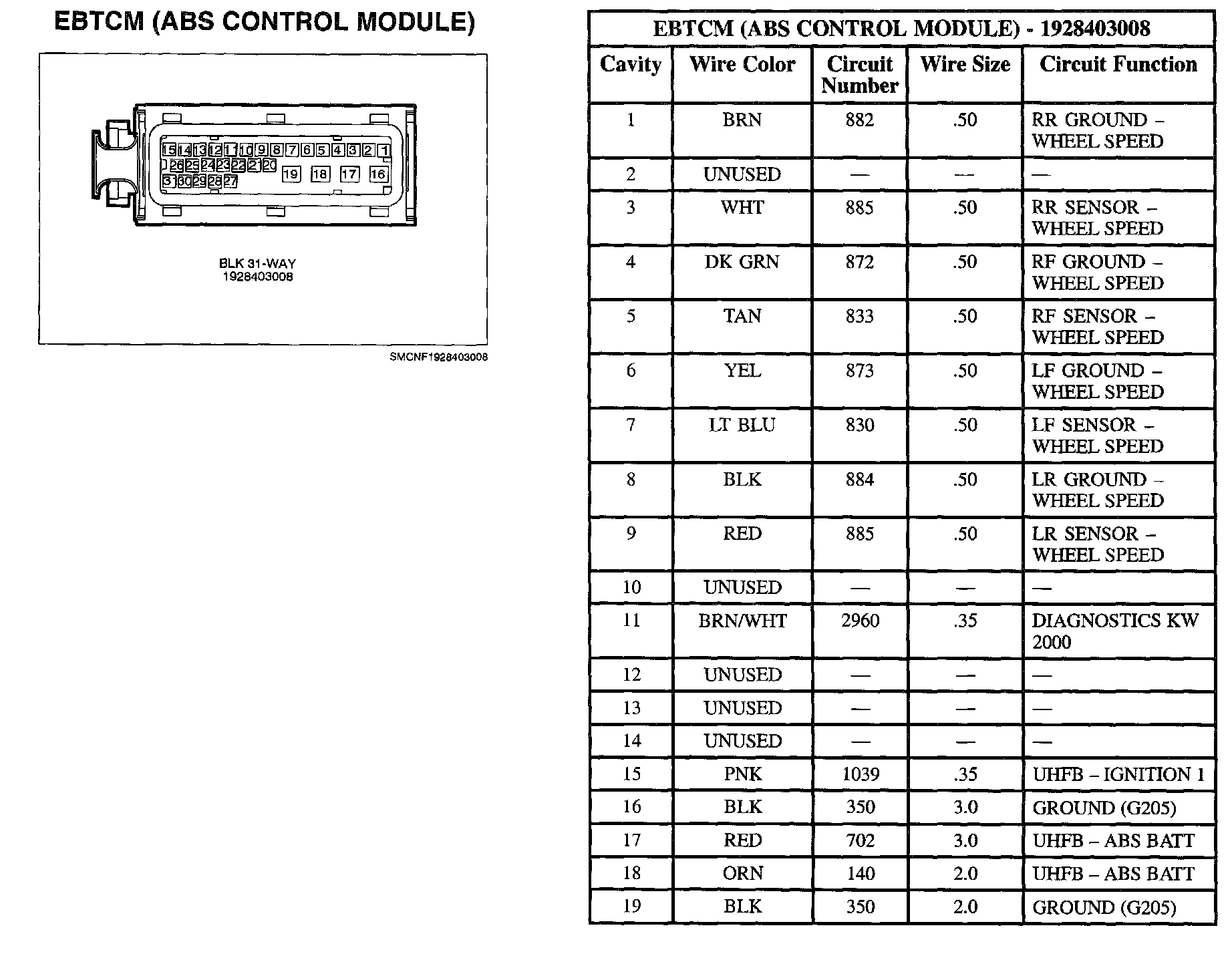

EBTCM (ABS Control Module) Part 1:

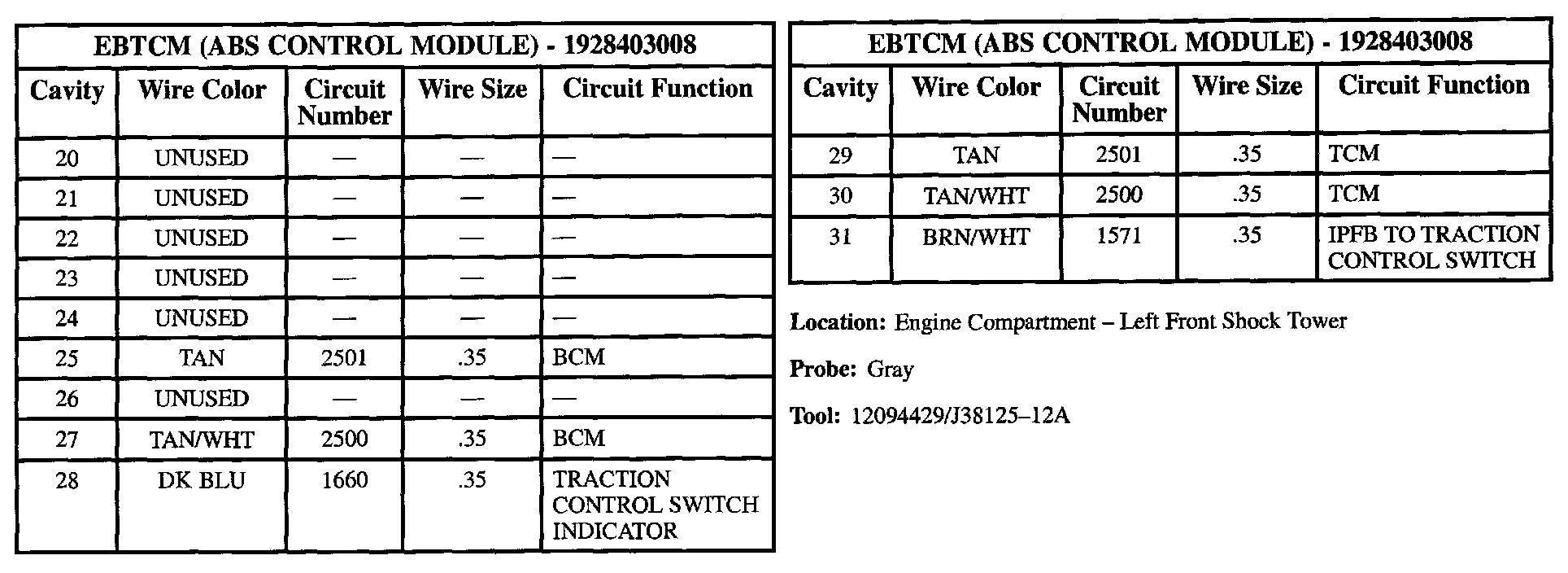

EBTCM (ABS Control Module) Part 2:
